Graco (19Y129) Ultra Ultra Max II 650 PC Pro Airless Sprayer Parts Breakdown
Here is a parts breakdown list of replacement Graco Ultra Max II 650 PC Pro lo-boy airless paint sprayer parts. If you don't see the part you are looking for here you can also search our airless sprayer store or call us and talk to one of our experienced representatives. Graco has been good about carrying parts for their sprayers many years after they are discontinued.
Can't find the part you need? Search our complete airless sprayer store or contact our experts.
Parts Breakdown Diagrams

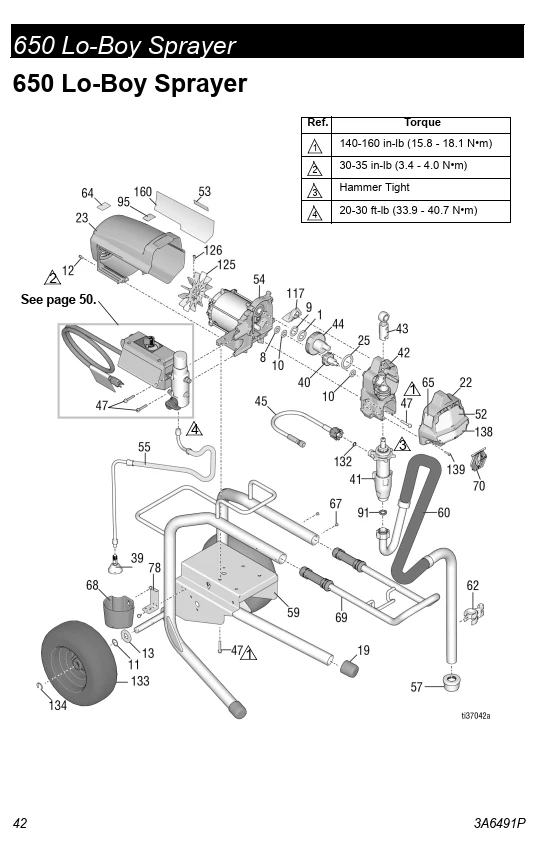

Graco (19Y129) Ultra Max II 650 PC Pro Lo-Boy Airless Sprayer Parts Breakdown
| Ref. | Part Number | Description | Availability |
|---|---|---|---|
| 1 | 107434 | BEARING, thrust | Call to order |
| 8 | 116073 | WASHER, thrust | Call to order |
| 9 | 116074 | WASHER, thrust | Call to order |
| 10 | 116079 | BEARING, thrust | Call to order |
| 11 | 116038 | WASHER, wave spring | Call to order |
| 12 | 117501 | SCREW, mach, hex washer hd | Call to order |
| 13 | 156306 | WASHER, flat | Call to order |
| 19 | 15C871 | CAP, leg | Call to order |
| 22 | 17C541 | Graco 17C541 Front Cover Painted | Available |
| 23 | 287900 | SHIELD, motor, painted includes 12 | Call to order |
| 25 | 180131 | BEARING, thrust | Call to order |
| 39 | 241920 | Deflector | Available |
| 40 | 249194 | GEAR, reducer | Call to order |
| 41 | 19Y298 | Graco 19Y298 Endurance Chromex Piston Pump for Ultra Max II 650 PC Pro | Available |
| 42 | 24W817 | Graco 24W817 ProConnect Drive Housing Replacement Kit | Available |
| 43 | 24W640 | ROD, connecting, PC | Call to order |
| 44 | 300001 | KIT, repair, crankshaft, includes 1, 9, 25 | Call to order |
| 45 | 24W830 | Graco 24W830 Pump Hose Kit | Available |
| 47 | 117493 | SCREW, mach, hex washer hd | Call to order |
| 54 | 287807 | Graco 287807 595 Motor Repair Kit | Available |
| 55 | 248217 | Repair Kit, Drain Hose | Available |
| 57 | 112604 | STRAINER | Call to order |
| 59 | 24Y424 | FRAME, cart, lo | Call to order |
| 60 | 248216 | Suction Hose For 695, 795 | Available |
| 62 | 15D000 | Graco 15D000 Drain Line Clip | Available |
| 64 | 16G596 | LABEL, warning (Europe) | Call to order |
| 67 | 109032 | SCREW, mach | Call to order |
| 68 | 276975 | CUP, drain | Call to order |
| 69 | 24A249 | HANDLE, assembly, lo cart | Call to order |
| 70 | 17C483 | Graco 17C483 Pump Rod Cover | Available |
| 78 | 15F952 | BRACKET, drain cup | Call to order |
| 91 | 115099 | Graco 115099 Garden Hose Washer Inlet Seal | Available |
| 95 | 15Y118 | LABEL, made in USA | Call to order |
| 117 | 15G447 | PLUG, shield painted | Call to order |
| 125 | 287898 | KIT, fan, includes 126 | Call to order |
| 126 | 115477 | Graco 115477 Torx Screw | Available |
| 132 | 16H137 | O-RING, FX-90 | Call to order |
| 133 | 119420 | WHEEL, semi-pneumatic | Call to order |
| 134 | 15E891 | Graco 15E891 Axle Clip | Available |
| 139 | 127914 | SCREW, mach, slot, hex | Call to order |
| 160 | 17P924 | LABEL, home center | Call to order |
| 206994 | 206994 | Graco Throat Seal Liquid - 8 oz TSL | Available |
