Graco Airless Sprayer Breakdowns
Graco Ultra QuickShot Airless Sprayer Parts Breakdown
Parts breakdown list for Graco Ultra QuickShot Airless Sprayer Parts Breakdown.

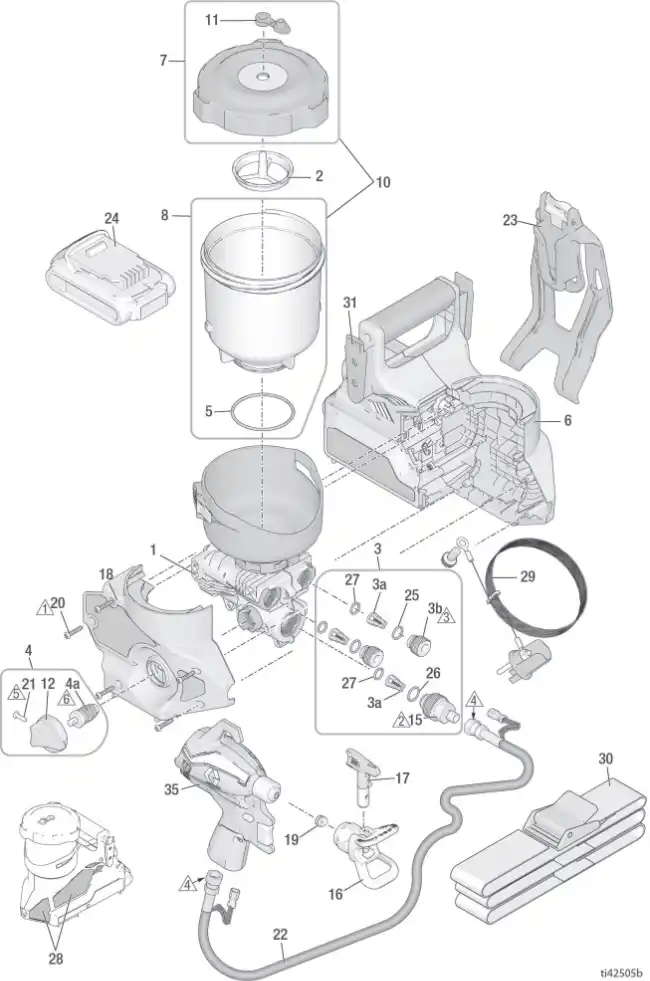

Graco Ultra QuickShot Airless Sprayer Parts Breakdown Parts Breakdown
| Ref. | Part Number | Description | Availability |
|---|---|---|---|
| 1 | 18H072 | Kit, pump assembly, includes 3, 4 | Available |
| 2 | 18H073 | Kit, filter, paint, 3 pack (black) | Available |
| 2 | 18H074 | Kit, filter, stain, 3 pack (blue) | Available |
| 3 | 18H075 | Kit, outlet valve repair | Available |
| 4 | 2000079 | Prime/Spray valve and knob | Available |
| 5 | 19F703 | O-ring | Available |
| 6 | 18H076 | Kit, control, motor, enclosure | Call for availability |
| 7 | 18H077 | Kit, lid, plug, label | Available |
| 8 | 18H078 | Kit, cup, 32 oz. | Available |
| 10 | 18H079 | Kit, cup, lid, plug, o-ring, label | Available |
| 11 | 18H080 | Kit, plug, 3 pack | Available |
| 12 | 17M882 | Prime knob | Call for availability |
| 13 | 19F832 | Screw, torx | Call for availability |
| 14 | 119236 | Screw, torx | Call for availability |
| 15 | 2000209 | Kit, hose adapter | Call for availability |
| 16 | 246215 | Guard, spray tip, FFLP | Available |
| 17 | FFLP514 | Spray tip | Available |
| 17 | FFLP210 | Spray tip | Available |
| 17 | FFLP410 | Spray tip | Available |
| 18 | 18H083 | Kit, enclosure, door | Call for availability |
| 19 | 17P501 | Kit, tip seat and seal, 5 pack | Available |
| 20 | 18H096 | Screw, cross-head | Call for availability |
| 21 | 128726 | Screw, cross-head | Call for availability |
| 22 | 2000354 | Kit, hose | Available |
| 23 | 18F977 | Holster | Available |
| 24 | 17P474 | Li-ion Compact Battery Pack DEWALT 20V 2.0 Ah - USA | Available |
| 25 | 17T582 | O-ring | Call for availability |
| 26 | 2000827 | O-ring | Call for availability |
| 27 | 18D981 | O-ring | Call for availability |
| 29 | 18H085 | Kit, ground | Available |
| 30 | 18F891 | Belt | Available |
| 31 | 18F810 | Adapter, belt slide | Available |
| 32 | 18H056 | Kit, needle valve | Available |
| 33 | 18H057 | Kit, solenoid, pot, trigger, switch | Available |
| 34 | 18H058 | Kit, gun housing | Call for availability |
| 35 | 18H059 | Kit, bare gun, no tip or tip guard | Available |
| 36 | 19F831 | Screw, cross-head | Call for availability |
| 37 | 18H126 | Kit, solvent gasket (qty. 5) | Available |
| 28A | 18H084 | Kit, warning labels | Call for availability |
