Graco (20B305) Ultra 650 XT Hi-Boy Airless Sprayer Parts Breakdown
Here is a parts breakdown list of replacement Graco Ultra 650 XT Hi-Boy airless paint sprayer parts. If you don't see the part you are looking for here you can also search our airless sprayer store or call us and talk to one of our experienced representatives. Graco has been good about carrying parts for their sprayers many years after they are discontinued.
Can't find the part you need? Search our complete airless sprayer store or contact our experts.

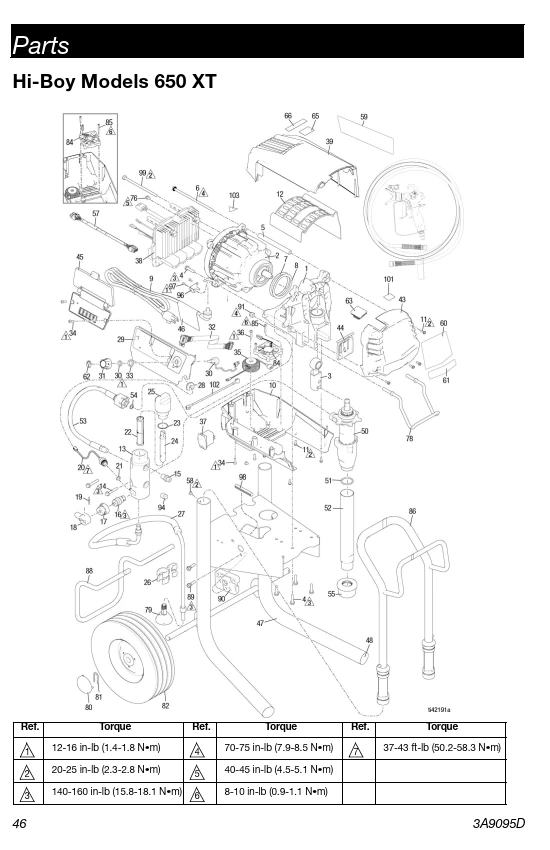

Parts Breakdown Diagrams
Graco (20B305) Ultra 650 XT Hi-Boy Airless Sprayer Parts Breakdown
| Ref. | Part Number | Description | Availability |
|---|---|---|---|
| 1 | 20B413 | HOUSING, pump with sleeve, includes 4, 7, 8 | Call to order |
| 2 | 19C925 | MOTOR, Graco, XT, includes 1, 3, 4, 5, 6, 7, 8 | Call to order |
| 3 | 20B414 | ROD, connecting, SM electrical assembly | Call to order |
| 4 | 20B534 | SCREW, mach, hex washer hd. | Call to order |
| 5 | 20B415 | SPACER, tie rod, motor, includes 6 | Call to order |
| 6 | 19C928 | SCREW, cap, 1/4-20 x 6 | Call to order |
| 7 | 19C534 | SPRING, wave washer | Call to order |
| 8 | 19C535 | SHIM | Call to order |
| 10 | 20B421 | SHIELD, motor, bottom, includes 11, 36, 37, 85 | Call to order |
| 11 | 2001659 | SCREW, mach, slot hex washer hd. | Call to order |
| 12 | 19D292 | COVER, motor | Call to order |
| 13 | 20B441 | MANIFOLD, fluid, includes 14, 15, 94 | Call to order |
| 14 | 117493 | SCREW, mach, hex washer hd. | Call to order |
| 15 | 162453 | Nipple | Available |
| 16 | 235014 | Graco 235014 OEM Spray Prime/Drain Valve Kit | Available |
| 17 | 224807 | Graco 224807 Drain Base Valve | Available |
| 18 | 187625 | Handle - St Prime Valve | Available |
| 19 | 111600 | Pin, Grooved | Available |
| 20 | 20B422 | Graco 20B422 Pressure Transducer Kit | Available |
| 21 | 111457 | O-ring Transducer Seal | Available |
| 22 | 246384 | Easy Out Filter, 60 mesh, Short Vertical | Available |
| 23 | 117828 | Graco 117828 Manifold Support Packing O-Ring | Available |
| 24 | 15B071 | Graco 15B071 Filter Insert | Available |
| 25 | 15G456 | CAP, filter | Call to order |
| 26 | 15D000 | Graco 15D000 Drain Line Clip | Available |
| 27 | 287952 | HOSE, drain, Ultra Hi-Boy, includes 79 | Call to order |
| 28 | 19C988 | GROMMET, transducer | Call to order |
| 29 | 20B424 | SHIELD, motor, side, painted, includes 28, 34 | Call to order |
| 30 | 20B425 | Graco 20B425 Encoder Potentiometer | Available |
| 31 | 2002370 | KNOB, potentiometer, assembled, includes 33, 62 | Call to order |
| 32 | 19C527 | HARNESS, display/pot | Call to order |
| 33 | 15C973 | GASKET | Call to order |
| 34 | 19D307 | SCREW, mach, torx pan hd. | Call to order |
| 36 | 131172 | SCREW, mach | Call to order |
| 37 | 2002366 | Graco 2002366 On/Off Rocker Switch | Available |
| 38 | 20B427 | BOARD, control, assembly, includes 76, 99 - 110-120V | Call to order |
| 38 | 20B428 | BOARD, control, assembly, includes 76, 99 - 220-240V | Call to order |
| 38 | 2002367 | BOARD, control, assembly, includes 76, 99 - 110V UK | Call to order |
| 39 | 20B443 | SHIELD, motor, top, painted, includes 34 | Call to order |
| 43 | 20B430 | COVER, front, painted, includes 11 | Call to order |
| 44 | 17C484 | COVER, PC Pro pump rod | Call to order |
| 45 | 20B431 | MODULE, display only, includes 34 | Call to order |
| 45 | 20B432 | Graco 20B432 SmartDisplay XT Kit | Available |
| 47 | 19D436 | FRAME, cart, Hi-Boy, includes 48 | Call to order |
| 48 | 108691 | Graco 108691 Tubing Plug | Available |
| 50 | 2002382 | PUMP, Displacement, small electric | Call to order |
| 51 | 118494 | Graco 118494 Suction Hose Packing O-Ring | Available |
| 52 | 19D856 | TUBE, suction | Call to order |
| 53 | 20B439 | Graco 20B439 Coupled Hose Kit | Available |
| 54 | 16H137 | O-RING | Call to order |
| 55 | 189920 | Inlet Screen, Large Gas HiBoys | Available |
| 57 | 19B596 | HARNESS, encoder | Call to order |
| 58 | 109032 | SCREW, mach, pan hd. | Call to order |
| 61 | 20B551 | LABEL, Xtreme Torque | Call to order |
| 62 | 19D678 | LABEL, control | Call to order |
| 63 | 19D261 | PLUG, shroud, painted | Call to order |
| 65 | 16D576 | LABEL, made in USA | Call to order |
| 76 | 114391 | SCREW, grounding | Call to order |
| 78 | 2001457 | HANGER, pail, threaded | Call to order |
| 79 | 241920 | Deflector | Available |
| 80 | 104811 | CAP, hub | Call to order |
| 81 | 15B999 | CLIP, retaining | Call to order |
| 82 | 106062 | WHEEL, semi-pneumatic | Call to order |
| 84 | 19D790 | FAN, 5V DC, square | Call to order |
| 85 | 19D789 | SCREW, plastite, #6 torx pan hd. | Call to order |
| 86 | 287489 | HANDLE, assy., Hi-Cart | Call to order |
| 88 | 15D281 | HANGER, stand, cart | Call to order |
| 89 | 114531 | SCREW, mach, hex washer hd. | Call to order |
| 90 | 15C982 | CAM, cart | Call to order |
| 91 | 111040 | NUT, lock, insert, Nylock, 5/16 | Call to order |
| 94 | 100509 | PLUG, pipe | Call to order |
| 96 | 20B514 | BRACKET, strain relief | Call to order |
| 97 | 120593 | SCREW, mach, torx | Call to order |
| 98 | 20B541 | TRIM, edge | Call to order |
| 99 | 20B451 | SCREW, hex hd. | Call to order |
| 103 | 2001766 | LABEL, moving parts | Call to order |
