Graco (19D519, 19D522) Ultra 490 XT and 495 XT Stand Airless Sprayer Parts Breakdown

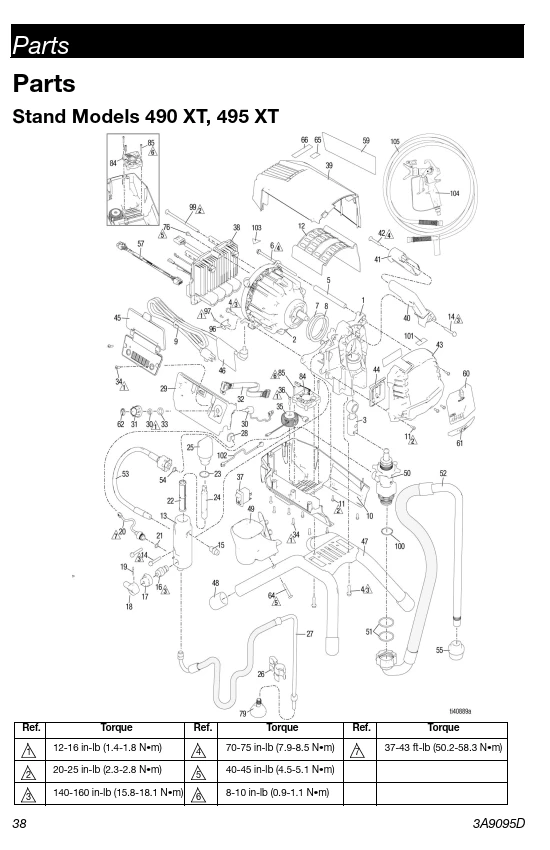

Parts breakdown list for Graco (19D519, 19D522) Ultra 490 XT and 495 XT Stand Airless Sprayer Parts Breakdown.
Graco (19D519, 19D522) Ultra 490 XT and 495 XT Stand Airless Sprayer Parts Breakdown Parts Breakdown
| Ref. | Part Number | Description | Availability |
|---|---|---|---|
| 1 | 20B413 | HOUSING, pump with sleeve, includes 4, 7, 8 | Call for availability |
| 2 | 19C924 | MOTOR, Graco, XT, includes 4, 5, 6, 7, 8 - 490 | Call for availability |
| 2 | 19D860 | MOTOR, Graco, XT, includes 4, 5, 6, 7, 8 - 495 | Call for availability |
| 3 | 20B414 | ROD, connecting, SM electrical assembly | Call for availability |
| 4 | 20B534 | SCREW, mach, hex washer hd. | Call for availability |
| 5 | 20B415 | SPACER, tie rod, motor, includes 6 | Call for availability |
| 6 | 19C928 | SCREW, cap, 1/4-20 x 6 | Call for availability |
| 7 | 19C534 | SPRING, wave washer | Call for availability |
| 8 | 19C535 | SHIM | Call for availability |
| 10 | 20B421 | SHIELD, motor, bottom, includes 11, 36, 37, 85 | Call for availability |
| 11 | 2001659 | SCREW, mach, slot hex washer hd. | Call for availability |
| 12 | 19D292 | COVER, motor | Call for availability |
| 13 | 20B440 | MANIFOLD, fluid, includes 14 | Call for availability |
| 14 | 117493 | SCREW, mach, hex washer hd. | Call for availability |
| 15 | 162453 | FITTING, 1/4 NPSM x 1/4 NPT | Available |
| 16 | 235014 | KIT, replacement, valve, drain, Includes 17, 18, 19 | Available |
| 17 | 224807 | BASE, valve | Available |
| 18 | 187625 | HANDLE, valve, drain | Available |
| 19 | 111600 | PIN, grooved | Available |
| 20 | 20B422 | TRANSDUCER, pressure control, includes 21, 28 | Available |
| 21 | 111457 | PACKING, o-ring | Available |
| 22 | 246384 | FILTER, fluid, 60 mesh | Available |
| 23 | 117828 | O-RING, PTFE, encapsulated | Available |
| 24 | 15B071 | INSERT, filter | Available |
| 25 | 15G456 | CAP, filter | Call for availability |
| 26 | 276888 | CLIP, drain line | Available |
| 27 | 246381 | HOSE, drain, includes 26, 79 | Available |
| 28 | 19C988 | GROMMET, transducer | Call for availability |
| 29 | 20B424 | SHIELD, motor, side, painted, includes 28, 34 | Call for availability |
| 30 | 20B425 | POTENTIOMETER, encoder | Available |
| 31 | 2002370 | KNOB, potentiometer, assembled, includes 33, 62 | Call for availability |
| 32 | 19C527 | HARNESS, display/pot | Call for availability |
| 33 | 15C973 | GASKET | Call for availability |
| 34 | 19D307 | SCREW, mach, torx pan hd. | Call for availability |
| 36 | 131172 | SCREW, mach, | Call for availability |
| 37 | 2002366 | SWITCH, rocker | Available |
| 38 | 20B427 | BOARD, control, assembly, includes 76, 99 - 100-120V | Call for availability |
| 38 | 20B428 | BOARD, control, assembly, includes 76, 99 - 220-240V | Call for availability |
| 38 | 2002367 | BOARD, control, assembly, includes 76, 99 - 110V UK | Call for availability |
| 39 | 20B443 | SHIELD, motor, top, painted, includes 34 | Call for availability |
| 40 | 20B429 | HANDLE, sprayer, includes 14, 41, 42 | Call for availability |
| 41 | 19C891 | GRIP, handle | Call for availability |
| 42 | 19D260 | SCREW, mach, pan hd., torx | Call for availability |
| 43 | 20B430 | COVER, front, painted, includes 11 | Call for availability |
| 44 | 17C484 | COVER, PC Pro pump rod | Call for availability |
| 45 | 20B431 | MODULE, display only, includes 34 | Call for availability |
| 45 | 20B432 | MODULE, Bluelink with display, includes 34 | Available |
| 47 | 20B433 | FRAME, standmount, includes 4, 48 | Call for availability |
| 48 | 19D306 | CAP, leg | Call for availability |
| 49 | 20B434 | CUP, drip, includes 64 | Call for availability |
| 50 | 19D873 | PUMP, Displacement, small electric, includes 51, 100 | Available |
| 51 | 16N901 | O-RING | Call for availability |
| 52 | 20B438 | HOSE, suction, assembly, includes 51, 55, 100 | Available |
| 53 | 20B439 | HOSE, coupled, includes 54 | Available |
| 54 | 16H137 | O-RING | Call for availability |
| 55 | 246385 | STRAINER | Available |
| 57 | 19B596 | HARNESS, encoder | Call for availability |
| 61 | 20B551 | LABEL, Xtreme Torque | Call for availability |
| 62 | 19D678 | LABEL, control | Call for availability |
| 64 | 19D788 | SCREW, plasttite, #10 hex wash hd. | Call for availability |
| 65 | 16D576 | LABEL, made in USA | Call for availability |
| 76 | 114391 | SCREW, grounding | Call for availability |
| 79 | 241920 | DEFLECTOR, threaded | Available |
| 84 | 19D790 | FAN, 5V DC, square | Call for availability |
| 85 | 19D789 | SCREW, plastite, #6 torx pan hd. | Call for availability |
| 99 | 20B451 | SCREW, hex hd. | Call for availability |
| 100 | 117117 | O-RING | Call for availability |
| 103 | 2001766 | LABEL, moving parts | Call for availability |
