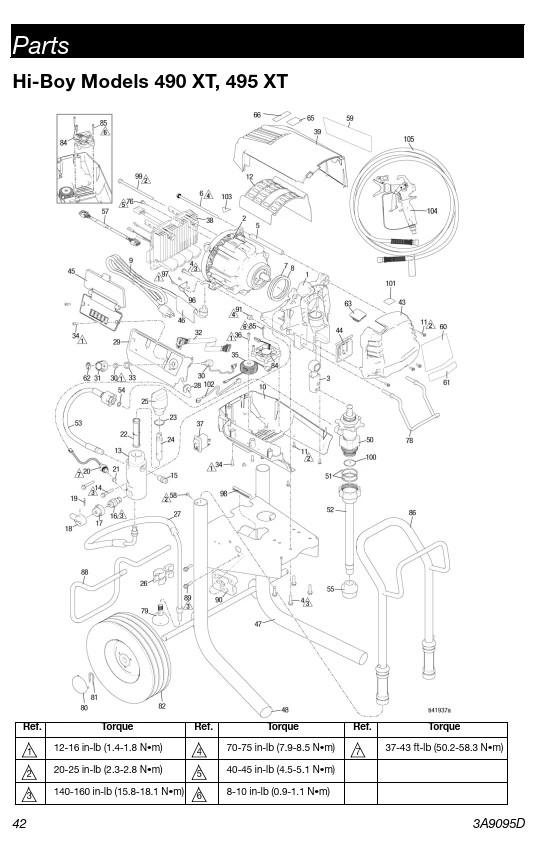

Graco (19D521, 19D524) Ultra 490 XT and 495 XT Hi-Boy Airless Sprayer Parts Breakdown
Parts breakdown list for Graco (19D521, 19D524) Ultra 490 XT and 495 XT Hi-Boy Airless Sprayer Parts Breakdown.
Graco (19D521, 19D524) Ultra 490 XT and 495 XT Hi-Boy Airless Sprayer Parts Breakdown Parts Breakdown
| Ref. | Part Number | Description | Availability |
|---|---|---|---|
| 1 | 20B413 | HOUSING, pump with sleeve, includes 4, 7, 8 | Call for availability |
| 2 | 19C924 | MOTOR, Graco, XT, includes 4, 5, 6, 7, 8 - 490 | Call for availability |
| 2 | 19D860 | MOTOR, Graco, XT, includes 4, 5, 6, 7, 8 - 495 | Call for availability |
| 3 | 20B414 | ROD, connecting, SM electrical assembly | Call for availability |
| 4 | 20B534 | SCREW, mach, hex washer hd. | Call for availability |
| 5 | 20B415 | SPACER, tie rod, motor, includes 6 | Call for availability |
| 6 | 19C928 | SCREW, cap, 1/4-20 x 6 | Call for availability |
| 7 | 19C534 | SPRING, wave washer | Call for availability |
| 8 | 19C535 | SHIM | Call for availability |
| 10 | 20B421 | SHIELD, motor, bottom, includes 11, 36, 37, 85 | Call for availability |
| 11 | 2001659 | SCREW, mach, slot hex washer hd. | Call for availability |
| 12 | 19D292 | COVER, motor | Call for availability |
| 13 | 20B440 | MANIFOLD, fluid, includes 14, 15 | Call for availability |
| 14 | 117493 | SCREW, mach, hex washer hd. | Call for availability |
| 15 | 162453 | FITTING, 1/4 NPSM x 1/4 NPT | Available |
| 16 | 235014 | KIT, replacement, valve, drain, Includes 17, 18, 19 | Available |
| 17 | 224807 | BASE, valve | Available |
| 18 | 187625 | HANDLE, valve, drain | Available |
| 19 | 111600 | PIN, grooved | Available |
| 20 | 20B422 | TRANSDUCER, pressure control, includes 21, 28 | Available |
| 21 | 111457 | PACKING, o-ring | Available |
| 22 | 246384 | FILTER, fluid, 60 mesh | Available |
| 23 | 117828 | O-RING, PTFE, encapsulated | Available |
| 24 | 15B071 | INSERT, filter | Available |
| 25 | 15G456 | CAP, filter | Call for availability |
| 26 | 276888 | CLIP, drain line | Available |
| 27 | 287952 | HOSE, drain, Ultra Hi-Boy, includes 79 | Call for availability |
| 28 | 19C988 | GROMMET, transducer | Call for availability |
| 29 | 20B424 | SHIELD, motor, side, painted, includes 28, 34 | Call for availability |
| 30 | 20B425 | POTENTIOMETER, encoder, includes 33 | Available |
| 31 | 2002370 | KNOB, potentiometer, assembled, includes 33, 62 | Call for availability |
| 32 | 19C527 | HARNESS, display/pot | Call for availability |
| 33 | 15C973 | GASKET | Call for availability |
| 34 | 19D307 | SCREW, mach, torx pan hd. | Call for availability |
| 36 | 131172 | SCREW, mach | Call for availability |
| 37 | 2002366 | SWITCH, rocker | Available |
| 38 | 20B427 | BOARD, control, assembly, includes 76 - 100-120V | Call for availability |
| 38 | 20B428 | BOARD, control, assembly, includes 76 - 220-240V | Call for availability |
| 38 | 2002367 | BOARD, control, assembly, includes 76 - 110V UK | Call for availability |
| 39 | 20B443 | SHIELD, motor, top, painted, includes 34 | Call for availability |
| 43 | 20B430 | COVER, front, painted, includes 11 | Call for availability |
| 44 | 17C484 | COVER, PC Pro pump rod | Call for availability |
| 45 | 20B431 | MODULE, display only, includes 34 | Call for availability |
| 45 | 20B432 | MODULE, BlueLink w/ display, includes 34 | Available |
| 47 | 19D436 | FRAME, cart, Hi-Boy, includes 48 | Call for availability |
| 48 | 108691 | PLUG, tube | Available |
| 50 | 19D873 | PUMP, Displacement, small electric, includes 51, 100 | Available |
| 51 | 16N901 | O-RING | Call for availability |
| 52 | 20B299 | TUBE, suction, assembly | Call for availability |
| 53 | 20B439 | HOSE, coupled, includes 54 | Available |
| 54 | 16H137 | O-RING | Call for availability |
| 55 | 246385 | STRAINER | Available |
| 57 | 19B596 | HARNESS, encoder | Call for availability |
| 58 | 109032 | SCREW, mach, pan hd. | Call for availability |
| 61 | 20B551 | LABEL, Xtreme Torque | Call for availability |
| 62 | 19D678 | LABEL, control | Call for availability |
| 63 | 19D261 | PLUG, shroud, painted | Call for availability |
| 65 | 16D576 | LABEL, made in USA | Call for availability |
| 76 | 114391 | SCREW, grounding | Call for availability |
| 78 | 2001457 | HANGER, pail, threaded | Call for availability |
| 79 | 241920 | DEFLECTOR, threaded | Available |
| 80 | 104811 | CAP, hub | Call for availability |
| 81 | 15B999 | CLIP, retaining | Call for availability |
| 82 | 106062 | WHEEL, semi-pneumatic | Call for availability |
| 84 | 19D790 | FAN, 5V DC, square | Call for availability |
| 85 | 19D789 | SCREW, plastite, #6 torx pan hd. | Call for availability |
| 86 | 287489 | HANDLE, assy., Hi-Cart | Call for availability |
| 88 | 15D281 | HANGER, stand, cart | Call for availability |
| 89 | 114531 | SCREW, mach, hex washer hd. | Call for availability |
| 90 | 15C982 | CAM, cart | Call for availability |
| 91 | 111040 | NUT, lock, insert, Nylock, 5/16 | Call for availability |
| 96 | 20B514 | BRACKET, strain relief | Call for availability |
| 97 | 120593 | SCREW, mach., torx | Call for availability |
| 98 | 20B541 | TRIM, edge | Call for availability |
| 99 | 20B451 | SCREW, hex hd. | Call for availability |
| 100 | 117117 | O-RING | Call for availability |
| 103 | 2001766 | LABEL, moving parts | Call for availability |
