Graco (17E844) Ultra 395 PC Stand Airless Sprayer Parts Breakdown
Here is a parts breakdown list of replacement Graco Ultra 395 PC stand airless paint sprayer parts. If you don't see the part you are looking for here you can also search our airless sprayer store or call us and talk to one of our experienced representatives. Graco has been good about carrying parts for their sprayers many years after they are discontinued.
Can't find the part you need? Search our complete airless sprayer store or contact our experts.
Parts Breakdown Diagrams

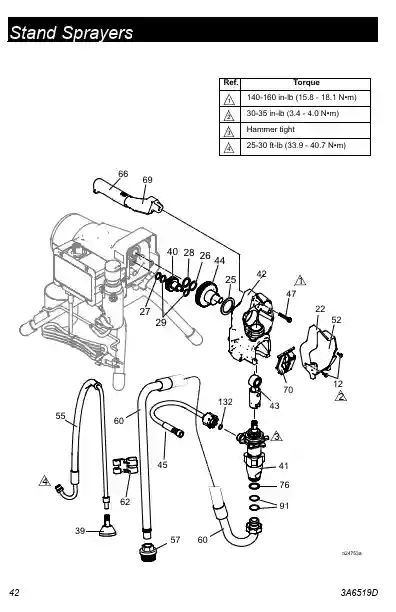

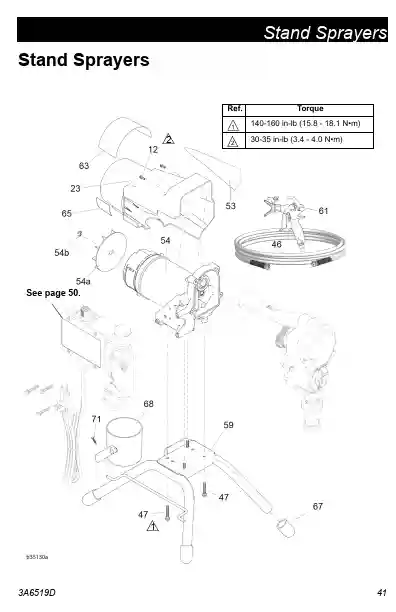

Graco (17E844) Ultra 395 PC Stand Airless Sprayer Parts Breakdown
| Ref. | Part Number | Description | Availability |
|---|---|---|---|
| 54a | 119716 | RING, retaining | Call to order |
| 54b | 248189 | Graco 248189 Motor Fan | Available |
| 12 | 117501 | SCREW, mach, hex washer hd | Call to order |
| 22 | 17C539 | Graco 17C539 Front Cover For 390 | Available |
| 23 | 15B465 | SHIELD, motor, painted | Call to order |
| 25 | 180131 | BEARING, thrust | Call to order |
| 26 | 107434 | BEARING, thrust | Call to order |
| 27 | 116073 | WASHER, thrust | Call to order |
| 28 | 116074 | WASHER, thrust | Call to order |
| 29 | 116079 | BEARING, thrust | Call to order |
| 33 | 206994 | Graco Throat Seal Liquid - 8 oz TSL | Available |
| 39 | 241920 | Deflector | Available |
| 40 | 249194 | GEAR, reducer | Call to order |
| 41 | 17C487 | Graco ProConnect Endurance Pump Lower Kit, 390 PC - 595 PC Pro | Available |
| 41 | 17C488 | PUMP, displacement, PC - Asia/ANZ/Japan | Call to order |
| 42 | 24W817 | Graco 24W817 ProConnect Drive Housing Replacement Kit | Available |
| 43 | 24W640 | ROD, connecting, PC | Call to order |
| 44 | 24X020 | GEAR, crankshaft, includes 25 | Call to order |
| 45 | 24W830 | Graco 24W830 Pump Hose Kit | Available |
| 47 | 117493 | SCREW, mach, hex washer hd | Call to order |
| 54 | 287015 | MOTOR, 110V / 120V, includes 54a, 54b | Call to order |
| 54 | 287060 | MOTOR, 230V, includes 54a, 54b | Call to order |
| 55 | 246381 | Graco 246381 Airless Sprayer Drain Hose | Available |
| 57 | 246385 | Inlet Screen, Rock Guard, Ultra 395/495 | Available |
| 59 | 15E823 | FRAME, standmount, includes 67 | Call to order |
| 60 | 246386 | Inlet Hose Assembly 395, 495, 595 | Available |
| 62 | 276888 | Graco 276888 Suction Hose Clip | Available |
| 66 | 116139 | Graco 116139 Handle Grip | Available |
| 67 | 15G857 | Graco 15G857 Replacement Rubber Foot for Airless Sprayers | Available |
| 68 | 287903 | CUP, suction/drain | Call to order |
| 69 | 287072 | HANDLE, sprayer, includes 47, 66 | Call to order |
| 70 | 17C483 | Graco 17C483 Pump Rod Cover | Available |
| 71 | 122667 | SCREW, drill, hex washer head | Call to order |
| 76 | 115099 | Graco 115099 Garden Hose Washer Inlet Seal | Available |
| 91 | 117559 | Suction Hose O-Ring | Available |
| 132 | 16H137 | PACKING, O-ring | Call to order |
