Graco Ultra Max II 490/495/595 PC Pro Lo-Boy Parts Breakdown
Here is a parts breakdown list of replacement Graco Ultra Max II 490/495/595 PC Pro Lo-Boy airless paint sprayer parts. If you don't see the part you are looking for here you can also search our airless sprayer store or call us and talk to one of our experienced representatives. Graco has been good about carrying parts for their sprayers many years after they are discontinued.
Can't find the part you need? Search our complete airless sprayer store or contact our experts.

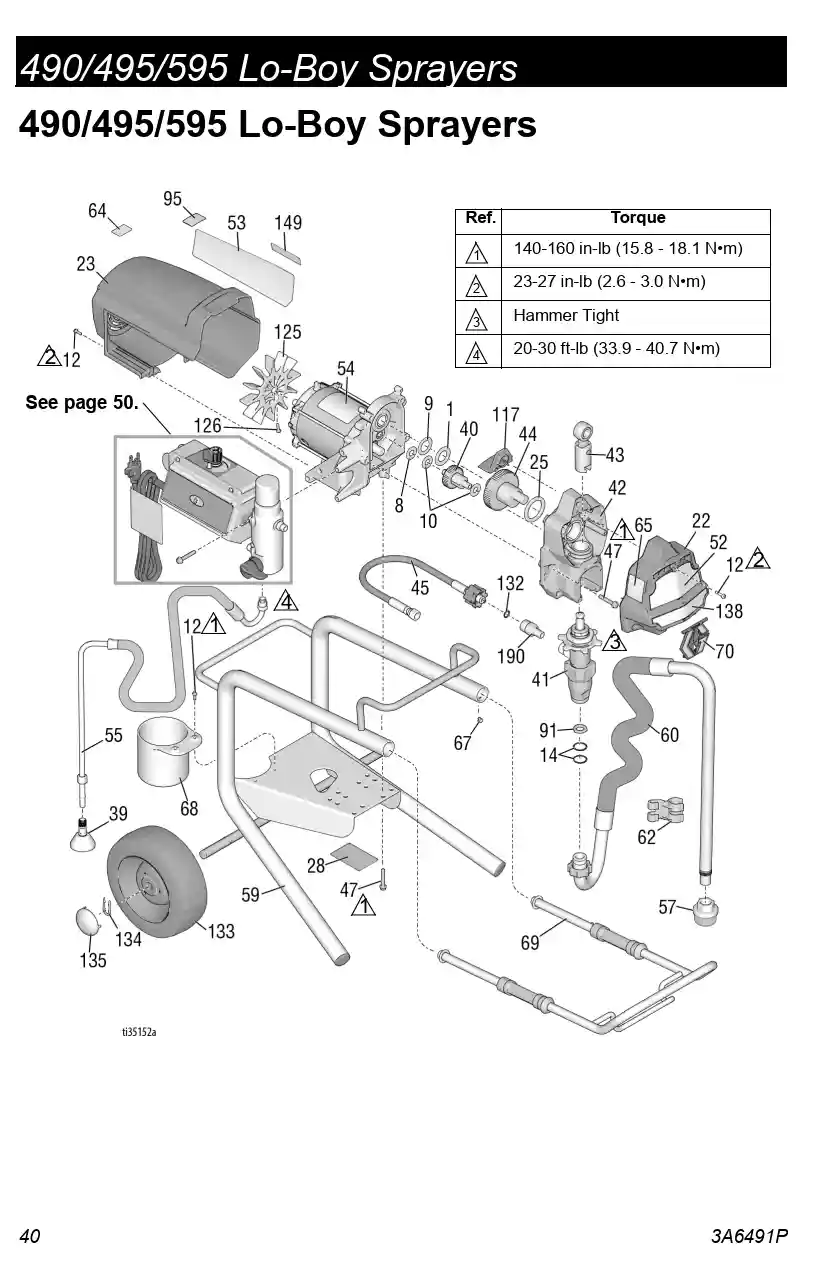

Parts Breakdown Diagrams
Graco Ultra Max II 490/495/595 PC Pro Lo-Boy Parts List
| Ref. | Part Number | Description | Availability |
|---|---|---|---|
| 206994 | Graco Throat Seal Liquid - 8 oz TSL | Available | |
| 1 | 107434 | BEARING, thrust | Call to order |
| 8 | 116073 | WASHER, thrust | Call to order |
| 9 | 116074 | WASHER, thrust | Call to order |
| 10 | 116079 | BEARING, thrust | Call to order |
| 12 | 117501 | SCREW, mach, hex washer hd | Call to order |
| 14 | 117559 | Suction Hose O-Ring | Available |
| 22 | 17C541 | Graco 17C541 Front Cover Painted | Available |
| 23 | 287900 | SHIELD, motor, painted includes 12 | Call to order |
| 25 | 180131 | BEARING, thrust | Call to order |
| 39 | 241920 | Deflector | Available |
| 40 | 249194 | GEAR, reducer | Call to order |
| 41 | 17C487 | Graco ProConnect Endurance Pump Lower Kit, 390 PC - 595 PC Pro | Available |
| 41 | 17C488 | PUMP, displacement, PC - Asia/ANZ/Japan/TW/Korea | Call to order |
| 42 | 24W817 | Graco 24W817 ProConnect Drive Housing Replacement Kit | Available |
| 43 | 24W640 | ROD, connecting, PC | Call to order |
| 44 | 24X020 | KIT, repair, crankshaft, includes 25 - Models 490/495 | Call to order |
| 44 | 24X021 | KIT, repair, crankshaft, includes 25 - Model 595 | Call to order |
| 45 | 24W830 | Graco 24W830 Pump Hose Kit | Available |
| 47 | 117493 | SCREW, mach, hex washer hd | Call to order |
| 54 | 287805 | MOTOR, includes 1, 8, 9, 10, 125, 126 - Models 490/495 | Call to order |
| 54 | 287807 | Graco 287807 595 Motor Repair Kit | Available |
| 55 | 246381 | Graco 246381 Airless Sprayer Drain Hose | Available |
| 57 | 276897 | STRAINER, 7/8-14 unf | Call to order |
| 59 | 246250 | FRAME, cart, lo | Call to order |
| 60 | 246386 | Inlet Hose Assembly 395, 495, 595 | Available |
| 62 | 276888 | Graco 276888 Suction Hose Clip | Available |
| 64 | 16G596 | LABEL, warning (Europe) | Call to order |
| 67 | 109032 | SCREW, mach hd., pnh | Call to order |
| 68 | 15B870 | CUP, suction/drain | Call to order |
| 69 | 287488 | HANDLE, assembly, lo cart | Call to order |
| 70 | 17C483 | Graco 17C483 Pump Rod Cover | Available |
| 91 | 115099 | Graco 115099 Garden Hose Washer Inlet Seal | Available |
| 95 | 15Y118 | LABEL, made in the USA | Call to order |
| 117 | 15G447 | PLUG, shield painted | Call to order |
| 125 | 287898 | KIT, fan, includes 126 | Call to order |
| 126 | 115477 | Graco 115477 Torx Screw | Available |
| 132 | 16H137 | O-RING, FX-90 | Call to order |
| 133 | 195766 | WHEEL, semi pneumatic | Call to order |
| 134 | 15B999 | CLIP, retaining | Call to order |
| 135 | 104811 | CAP, hub | Call to order |
| 149 | 17P924 | LABEL, home center | Call to order |
| 190 | 17C231 | FITTING, pump, 1/4 NPT | Call to order |
