Graco (17E846) Ultra 395 PC Hi-Boy Airless Sprayer Parts Breakdown
Here is a parts breakdown list of replacement Graco Ultra 395 PC Hi-Boy airless paint sprayer parts. If you don't see the part you are looking for here you can also search our airless sprayer store or call us and talk to one of our experienced representatives. Graco has been good about carrying parts for their sprayers many years after they are discontinued.
Can't find the part you need? Search our complete airless sprayer store or contact our experts.
Parts Breakdown Diagrams

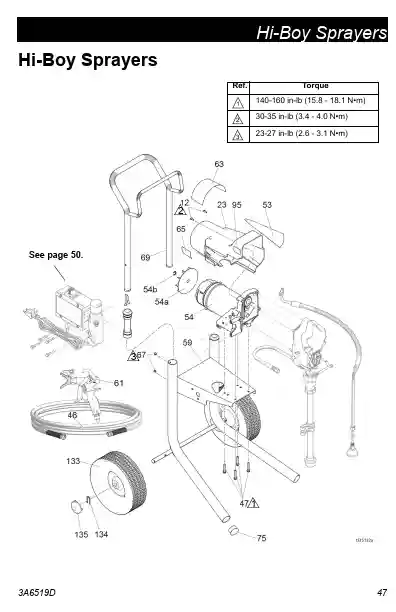

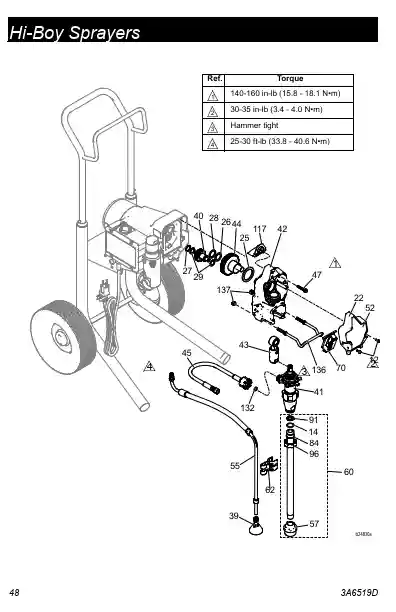

Graco Ultra 395 PC Hi-Boy Airless Sprayer Parts Breakdown
| Ref. | Part Number | Description | Availability |
|---|---|---|---|
| 54a | 118716 | RING, retaining | Call to order |
| 54b | 248189 | Graco 248189 Motor Fan | Available |
| 12 | 117501 | SCREW, mach, hex washer hd | Call to order |
| 14 | 103413 | Graco Inlet Tube O-Ring | Available |
| 22 | 17C539 | Graco 17C539 Front Cover For 390 | Available |
| 23 | 15B465 | SHIELD, motor, painted | Call to order |
| 25 | 180131 | BEARING, thrust | Call to order |
| 26 | 107434 | BEARING, thrust | Call to order |
| 27 | 116073 | WASHER, thrust | Call to order |
| 28 | 116074 | WASHER, thrust | Call to order |
| 29 | 116079 | BEARING, thrust | Call to order |
| 33 | 206994 | Graco Throat Seal Liquid - 8 oz TSL | Available |
| 39 | 241920 | Deflector | Available |
| 40 | 249194 | GEAR, reducer | Call to order |
| 41 | 17C487 | Graco ProConnect Endurance Pump Lower Kit, 390 PC - 595 PC Pro | Available |
| 42 | 24W817 | Graco 24W817 ProConnect Drive Housing Replacement Kit | Available |
| 43 | 24W640 | ROD, connecting, PC | Call to order |
| 44 | 24X020 | GEAR, crankshaft, includes 25 | Call to order |
| 45 | 24W830 | Graco 24W830 Pump Hose Kit | Available |
| 47 | 117493 | SCREW, mach, hex washer hd | Call to order |
| 54 | 287015 | MOTOR, includes 54a, 54b, 100-120V | Call to order |
| 55 | 287952 | HOSE, drain, includes... | Call to order |
| 57 | 246385 | Inlet Screen, Rock Guard, Ultra 395/495 | Available |
| 59 | 17C485 | FRAME, cart, hi | Call to order |
| 60 | 17C392 | KIT, hose suction tube, includes 14, 57, 84, 91, 96 | Call to order |
| 62 | 276888 | Graco 276888 Suction Hose Clip | Available |
| 67 | 109032 | SCREW, pan hd | Call to order |
| 69 | 287A59 | HANDLE | Call to order |
| 70 | 17C483 | Graco 17C483 Pump Rod Cover | Available |
| 75 | 118631 | PLUG, tubing | Call to order |
| 84 | 15B552 | WASHER, suction | Call to order |
| 91 | 115099 | Graco 115099 Garden Hose Washer Inlet Seal | Available |
| 96 | 15E413 | NUT, jam | Call to order |
| 117 | 15G447 | PLUG, shield, painted | Call to order |
| 132 | 16H137 | PACKING, O-ring | Call to order |
| 133 | 106062 | WHEEL | Call to order |
| 134 | 15B999 | CUP, retaining | Call to order |
| 135 | 104811 | CAP, hub | Call to order |
| 136 | 17C390 | HANGER, pail | Call to order |
| 137 | 111040 | NUT, lock, insert, nylon | Call to order |
