Graco (19Y128) Ultra Max II 650 PC Pro Airless Sprayer Parts Breakdown
Here is a parts breakdown list of replacement Graco Ultra Max II 650 PC Pro Hi-boy airless paint sprayer parts. If you don't see the part you are looking for here you can also search our airless sprayer store or call us and talk to one of our experienced representatives. Graco has been good about carrying parts for their sprayers many years after they are discontinued.
Can't find the part you need? Search our complete airless sprayer store or contact our experts.
Parts Breakdown Diagrams

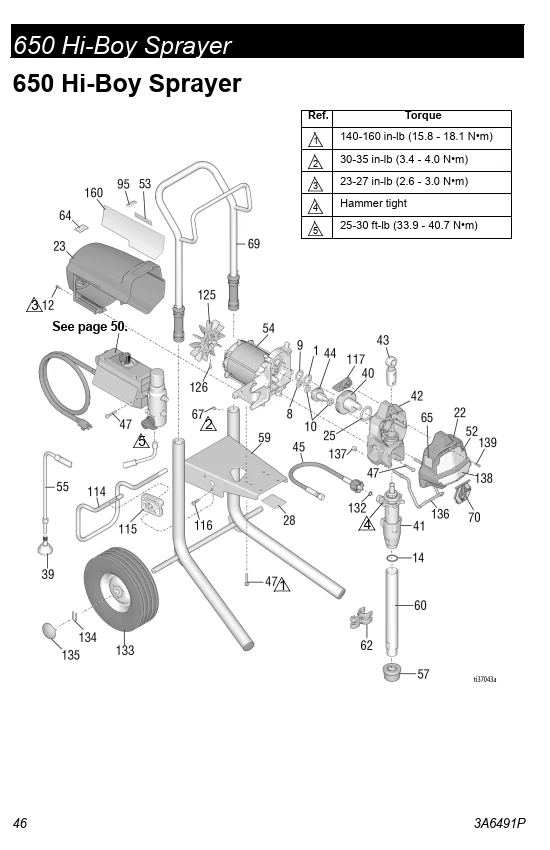

Graco (19Y128) Ultra Max II 650 PC Pro Hi-Boy Airless Sprayer Parts Breakdown
| Ref. | Part Number | Description | Availability |
|---|---|---|---|
| 206994 | Graco Throat Seal Liquid - 8 oz TSL | Available | |
| 1 | 107434 | BEARING, thrust | Call to order |
| 8 | 116073 | WASHER, thrust | Call to order |
| 9 | 116074 | WASHER, thrust | Call to order |
| 10 | 116079 | BEARING, thrust | Call to order |
| 12 | 117501 | SCREW, mach, hex washer hd | Call to order |
| 14 | 118494 | Graco 118494 Suction Hose Packing O-Ring | Available |
| 22 | 17C541 | Graco 17C541 Front Cover Painted | Available |
| 23 | 287900 | SHIELD, motor, painted includes 12 | Call to order |
| 25 | 180131 | BEARING, thrust | Call to order |
| 33 | 238049 | FLUID, TSL (not shown) | Call to order |
| 39 | 241920 | Deflector | Available |
| 40 | 249194 | GEAR, reducer | Call to order |
| 41 | 19Y298 | Graco 19Y298 Endurance Chromex Piston Pump for Ultra Max II 650 PC Pro | Available |
| 42 | 24W817 | Graco 24W817 ProConnect Drive Housing Replacement Kit | Available |
| 43 | 24W640 | ROD, connecting, PC | Call to order |
| 44 | 300001 | KIT, repair, crankshaft, includes 1, 9, 25 | Call to order |
| 45 | 24W830 | Graco 24W830 Pump Hose Kit | Available |
| 47 | 117493 | SCREW, mach, hex washer hd | Call to order |
| 54 | 287807 | Graco 287807 595 Motor Repair Kit | Available |
| 55 | 287952 | HOSE, drain, includes 39 | Call to order |
| 57 | 189920 | Inlet Screen, Large Gas HiBoys | Available |
| 59 | 17C485 | FRAME, cart, hi | Call to order |
| 60 | 19Y309 | KIT, stinger tube, includes 14 | Call to order |
| 62 | 15D000 | Graco 15D000 Drain Line Clip | Available |
| 64 | 16G596 | LABEL, warning (Europe) | Call to order |
| 67 | 109032 | SCREW, pan hd | Call to order |
| 69 | 287489 | HANDLE, assembly, hi-cart | Call to order |
| 70 | 17C483 | Graco 17C483 Pump Rod Cover | Available |
| 95 | 15Y118 | LABEL, made in the USA | Call to order |
| 114 | 15D281 | HANGER, stand | Call to order |
| 115 | 15C982 | CAM, cart | Call to order |
| 116 | 114531 | SCREW, mch, hex | Call to order |
| 117 | 15G447 | PLUG, shield, painted | Call to order |
| 125 | 287898 | KIT, fan, includes 126 | Call to order |
| 126 | 115477 | Graco 115477 Torx Screw | Available |
| 132 | 16H137 | O-RING, FX-90 | Call to order |
| 133 | 106062 | WHEEL, semi pneumatic | Call to order |
| 134 | 15B999 | CLIP, retaining | Call to order |
| 135 | 104811 | CAP, hub | Call to order |
| 136 | 17C990 | HANGER PAIL, threaded | Call to order |
| 137 | 111040 | NUT, lock. insert, nylock, 5/16 | Call to order |
| 139 | 127914 | SCREW, mach, slot, hex | Call to order |
| 160 | 17P924 | LABEL, home center | Call to order |
