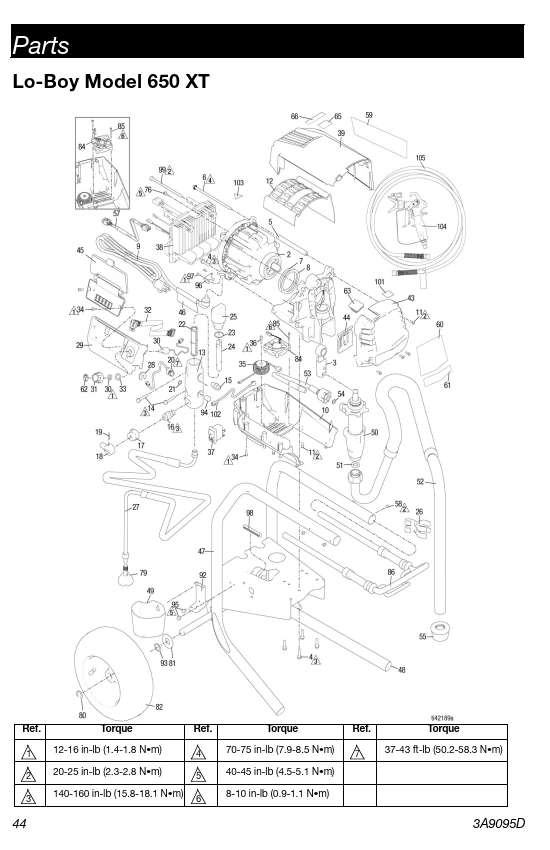

Graco (20B304) Ultra 650 XT Lo-Boy Airless Sprayer Parts Breakdown
Here is a parts breakdown list of replacement Graco Ultra 650 XT Lo-Boy airless paint sprayer parts.
If you don't see the part you are looking for here you can also search our
airless sprayer store or call us and talk to
one of our experienced representatives. Graco has been good about carrying parts for their sprayers many years after they are discontinued.
Graco (20B304) Ultra 650 XT Lo-Boy Airless Sprayer Parts Breakdown Parts Breakdown
| Ref. | Part Number | Description | Availability |
|---|---|---|---|
| 1 | 20B413 | HOUSING, pump with sleeve, includes 4, 7, 8 | Call for availability |
| 2 | 19C925 | MOTOR, Graco, XT, includes 1, 3, 4, 5, 6, 7, 8 | Call for availability |
| 3 | 20B414 | ROD, connecting, SM electrical assembly | Call for availability |
| 4 | 20B534 | SCREW, mach, hex washer hd. | Call for availability |
| 5 | 20B415 | SPACER, tie rod, motor, includes 6 | Call for availability |
| 6 | 19C928 | SCREW, cap, 1/4-20 x 6 | Call for availability |
| 7 | 19C534 | SPRING, wave washer | Call for availability |
| 8 | 19C535 | SHIM | Call for availability |
| 10 | 20B421 | SHIELD, motor, bottom, includes 11, 36, 37, 85 | Call for availability |
| 11 | 2001659 | SCREW, mach, slot hex washer hd. | Call for availability |
| 12 | 19D292 | COVER, motor | Call for availability |
| 13 | 20B441 | MANIFOLD, fluid, includes 14, 15, 94 | Call for availability |
| 14 | 117493 | SCREW, mach, hex washer hd. | Call for availability |
| 15 | 162453 | FITTING, 1/4 NPSM x 1/4 NPT | Available |
| 16 | 235014 | KIT, replacement, valve, drain, Includes 17, 18, 19 | Available |
| 17 | 224807 | BASE, valve | Available |
| 18 | 187625 | HANDLE, valve, drain | Available |
| 19 | 111600 | PIN, grooved | Available |
| 20 | 20B422 | TRANSDUCER, pressure control, includes 21, 28 | Available |
| 21 | 111457 | PACKING, o-ring | Available |
| 22 | 246384 | FILTER, fluid, 60 mesh | Available |
| 23 | 117828 | O-RING, PTFE, encapsulated | Available |
| 24 | 15B071 | INSERT, filter | Available |
| 25 | 15G456 | CAP, filter | Call for availability |
| 26 | 15D000 | CLIP, drain line | Available |
| 27 | 248217 | HOSE, drain, includes 79 | Available |
| 28 | 19C988 | GROMMET, transducer | Call for availability |
| 29 | 20B424 | SHIELD, motor, side, painted, includes 28, 34 | Call for availability |
| 30 | 20B425 | POTENTIOMETER, encoder, includes 33 | Available |
| 31 | 2002370 | KNOB, potentiometer, assembled, includes 33, 62 | Call for availability |
| 32 | 19C527 | HARNESS, display/pot | Call for availability |
| 33 | 15C973 | GASKET | Call for availability |
| 34 | 19D307 | SCREW, mach, torx pan hd. | Call for availability |
| 36 | 131172 | SCREW, mach, | Call for availability |
| 37 | 2002366 | SWITCH, rocker | Available |
| 38 | 20B427 | BOARD, control, assembly, includes 76, 99 - 110-120V | Call for availability |
| 38 | 20B428 | BOARD, control, assembly, includes 76, 99 - 220-240V | Call for availability |
| 39 | 20B443 | SHIELD, motor, top, painted, includes 34 | Call for availability |
| 43 | 20B430 | COVER, front, painted, includes 11 | Call for availability |
| 44 | 17C484 | COVER, PC Pro pump rod | Call for availability |
| 45 | 20B431 | MODULE, display only, includes 34 | Call for availability |
| 45 | 20B432 | MODULE, BlueLink w/ display, includes 34 | Available |
| 47 | 20B204 | FRAME, cart, Lo-Boy, includes 48 | Call for availability |
| 48 | 107310 | CAP, leg | Call for availability |
| 49 | 276975 | CUP, suction/drain | Call for availability |
| 50 | 2002382 | PUMP, Displacement, small electric | Call for availability |
| 51 | 115099 | WASHER | Available |
| 52 | 248216 | HOSE, suction, assembly, includes 51 | Available |
| 53 | 20B439 | HOSE, coupled, includes 54 | Available |
| 54 | 16H137 | O-RING | Call for availability |
| 55 | 189920 | STRAINER | Available |
| 57 | 19B596 | HARNESS, encoder | Call for availability |
| 58 | 109032 | SCREW, mach, pan hd. | Call for availability |
| 61 | 20B551 | LABEL, Xtreme Torque | Call for availability |
| 62 | 19D678 | LABEL, control | Call for availability |
| 63 | 19D261 | PLUG, shroud, painted | Call for availability |
| 65 | 16D576 | LABEL, made in USA | Call for availability |
| 76 | 114391 | SCREW, grounding | Call for availability |
| 79 | 241920 | DEFLECTOR, threaded | Available |
| 80 | 15E891 | CLIP, retaining | Available |
| 81 | 156306 | WASHER | Call for availability |
| 82 | 119420 | WHEEL, semi-pneumatic | Call for availability |
| 84 | 19D790 | FAN, 5V DC, square | Call for availability |
| 85 | 19D789 | SCREW, plastite, #6 torx pan hd. | Call for availability |
| 86 | 19D794 | HANDLE, Lo-Boy, assy. | Call for availability |
| 92 | 15F952 | BRACKET | Call for availability |
| 93 | 116038 | WASHER, spring | Call for availability |
| 94 | 100509 | PLUG, pipe | Call for availability |
| 95 | 114423 | SCREW | Call for availability |
| 96 | 20B514 | BRACKET, strain relief | Call for availability |
| 97 | 120593 | SCREW, mach, torx | Call for availability |
| 98 | 20B541 | TRIM, edge | Call for availability |
| 99 | 20B451 | SCREW, hex hd. | Call for availability |
| 103 | 2001766 | LABEL, moving parts | Call for availability |
