Powerex OBS0307 3hp Oil Free Reciprocating Air Compressor, 10.1cfm, Three Phase, Basemount

$9,664.00
$5,479.00
SKU: OBS0307
Part #: OBS0307
Call to order 800-542-8300

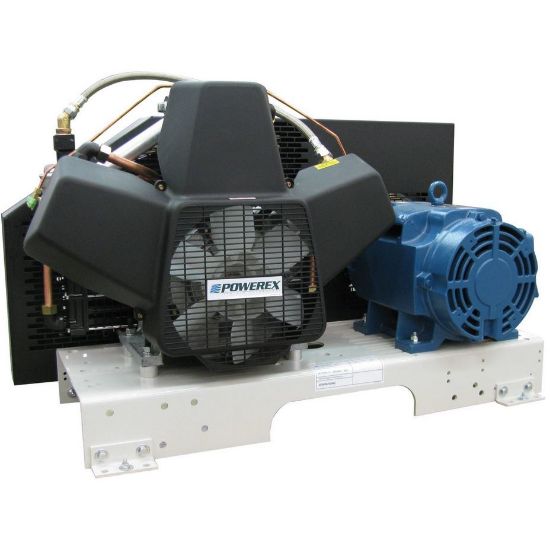

Powerex OBS0307 3hp Oil Free Reciprocating Air Compressor, 10.1cfm, Three Phase, Basemount

The Powerex OBS0307 is a 3hp oil free piston air compressor that is rated to displace 10.1cfm @ 100psi. This model is baseplate mounted and is designed to be paired with a separate air receiver or to tie into a larger piping system. This compressor can run on either 208v, 230v or 460v.

The Powerex oilless reciprocating air compressor line has advanced compressor technology through the development of a completely oilless unit. The Powerex reciprocating compressor is utlizes sealed bearings to provide oil-free compressed air and long compressor life. The on board fan, finned flywheel and temperature reducing composite piston create lower operating
temperatures. The compressor pistons are made of a high-strength, self-lubricating composite using the most advanced technology available. These heat reducing pistons eliminate the effect of excessive grease leakage at the wrist pin bearing. PTFE rings reduce wear and provide self-lubrication.

Powerex oil free compressed air systems are perfect for any application where clean dry air is required. The OBS0307 model utilizes the OPS030 oil free compressor pump.

The OBS0307 is available in either 208 230 or 460v three phase power. A magnetic motor starter with overload protection is pre-installed prior to shipping and wired based on your buildings power.

Powerex has several different configurations in their oil free and oil lubricated compressor lines. Please contact us for a system designed for your operation.

Features - OBS0307

  • Oil-less reciprocating piston pump technology: 100% oil free compressed air
  • Low maintenance
  • Manufactured in ISO 9001:2015 certified facilities
  • Easy installation that maximizes floor space
  • Dual cooling flywheel and fan.
  • Corrosion resistant coating extends valve and ring life.
California Residents: Prop 65 WARNINGS
Products specifications
AvailabilityShips From Manufacturer
Voltage Frequency60Hz
Weight160 lbs
Sound Level71dBA
PhaseThree
Voltage208/230/460 / Tri Voltage
ConfigurationBasemount (tankless)
Drive StyleBelt Drive
CFM @ 100 PSI10.1
Horse Power3
Max Pressure (PSI)145
Dimensions32 x 19 x 23"H
