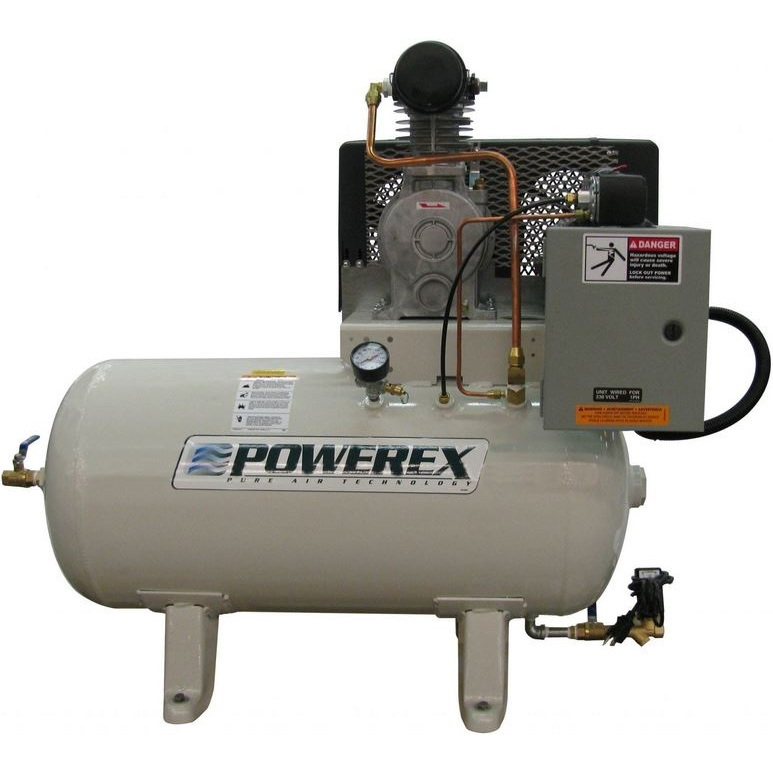

Powerex OTS0303 3hp Oil Free Reciprocating Compressor, Three Phase, 10.1cfm, 80 Gallon Tank

$9,803.00
$4,195.00
SKU: OTS0303
Part #: OTS0303
Call to order 800-542-8300

Powerex OTS0303 3hp Oil Free Reciprocating Compressor, Three Phase, 10.1cfm, 80 Gallon Tank

The Powerex OTS0303 is a 3hp oil free piston air compressor that is rated to displace 10.1cfm @ 100psi. This compressor runs on 208-230 or 460v three phase power and is mounted on an 80 gallon horizontal air receiver. The Powerex simplex reciprocating piston tank mounted systems are perfect for any application where clean dry air is required. The self-lubricating composite piston technology – standard on all Powerex reciprocating compressors – increases ring life and reduces temperature providing reliability for years to come. The dual cooling pistons reduce operating temperatures and the corrosion resistant components and coatings extend ring and valve life. The OTS0303 series utilizes the OPS030 oil free compressor pump.

The Powerex OTS series compressors have been designed and tested to meet the most demanding specifications of the oil free industry. All motors used on these compressors are NEMA Class B or better.

OTS0303 is available in 208, 230 or 460v three phase power. A magnetic motor starter with overload protection is pre-installed prior to shipping and wired based on your buildings power. The 80 gallon receiver tank is ASME rated.

This compressor package is able to be configured in an array of different variants, including the potential to add either a refrigerated or desiccant dryer pre mounted and installed on the receiver tank.  Please contact our sales department to help tailor a compressor specific to your needs.

Features - OTS0303

  • Oil-less reciprocating piston pump technology: 100% oil free compressed air
  • Low maintenance
  • Manufactured in ISO 9001:2015 certified facilities
  • Easy installation that maximizes floor space
  • Dual cooling flywheel and fan.
  • Corrosion resistant coating extends valve and ring life.
  • NFPA 99 compliant
Products specifications
AvailabilityShips From Manufacturer
Voltage Frequency60Hz
Tank Size80 Gallons
Weight479 lbs
Sound Level71dBA
PhaseThree
ConfigurationHorizontal
Drive StyleBelt Drive
Connection Size1/2" NPT
Voltage208/230/460 / Tri Voltage
CFM @ 100 PSI10.1
CFM Range1-12
Horse Power3
Max Pressure (PSI)145
Dimensions70" x 24" x 46"H
