Ingersoll Rand UP6-7.5TAS 7.5HP Rotary Screw Air Compressor with Integrated Refrigerated Air Dryer

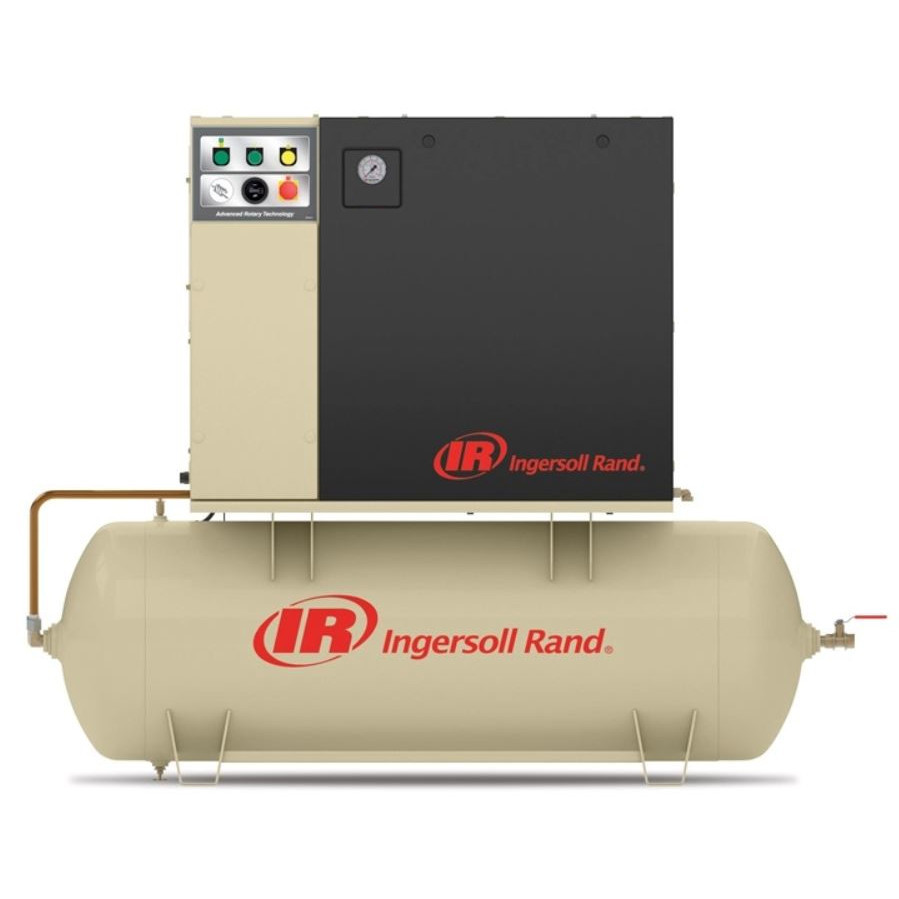

The Ingersoll Rand UP6-7.5 TAS “Total-Air-System” (TAS) is a 7.5hp rotary screw air compressor with integrated air dryer and filtration. This is a unique compressor package, comprising a fully integrated rotary screw compressor with a high efficiency cycling air dryer with general purpose and high efficiency air filters. This is all mounted on either an 80 gallon or 120 gallon horizontal air storage receiver. The TAS package occupies less space, costs less to install, and delivers high quality compressed air to maximize operating efficiency and reduce costs. This model will displace 28cfm @ 125psi or 25cfm @ 150psi.

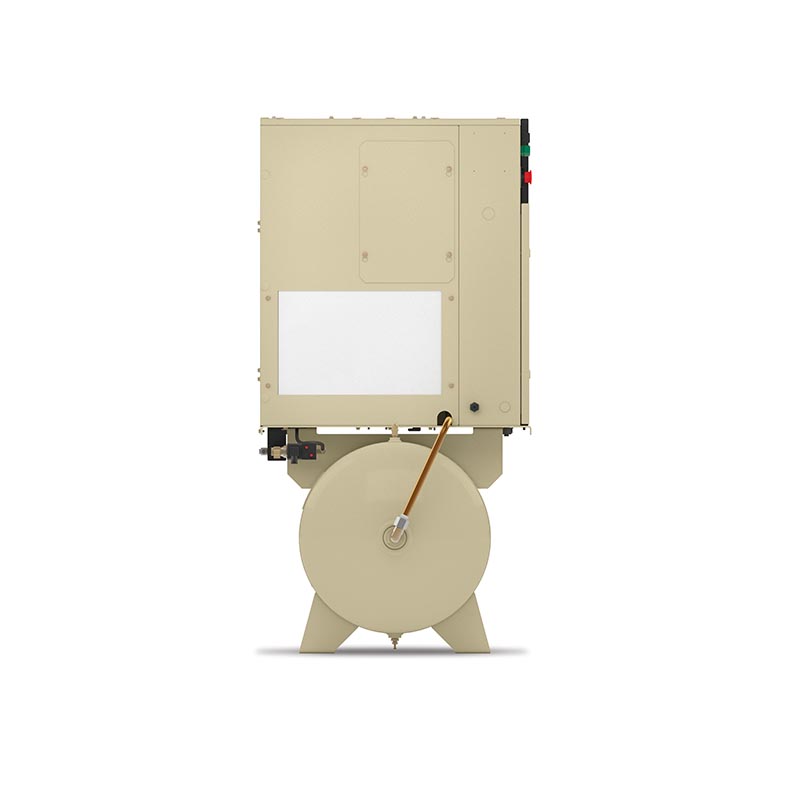

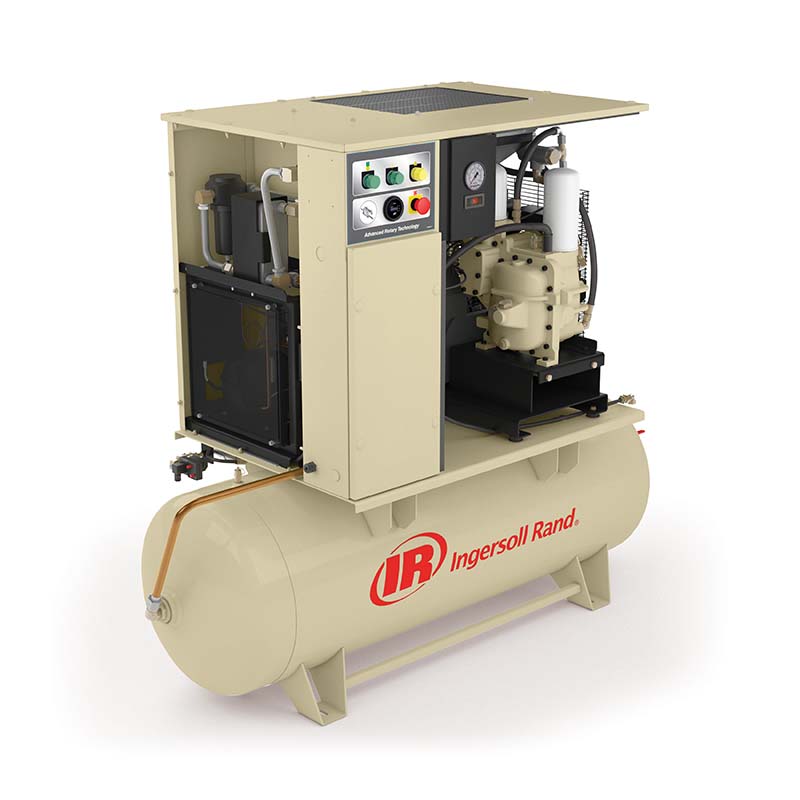

The package enclosure is carefully designed to provide effective sound emission control and suppression, while retaining easy access for maintenance and access to major components. The front door lifts off if required to provide easy access to all routine maintenance points. This door provides easy access to carry out all of the maintenance procedures for the compressor. The side panel can be removed for maintenance on the dryer and filter section.

A cycling refrigerated air dryer for moisture removal is totally integrated within the compressed air package and using the same cooling air flow as the compressor package. The refrigerant air dryer which cycles on and off with the compressor, uses a unique single high efficiency welded stainless steel plate heat exchanger to perform the multiple duties of pre-cooler, refrigerant evaporator, and compressed air re-heater. The environmentally sound R-134a refrigeration cycle utilizes a high efficiency “micro channel” condenser and thermal control is provided with a quick acting hot gas bypass. Condensed water is removed from the airflow directly after the evaporator part of the heat exchanger, by a high efficiency external cyclone separator. This condensate is discharged by solenoid drain from a manifold in parallel with other drain points.

Speed, torque and operating characteristics have been designed to match the load of the compressor. Motor efficiency and power factor have been optimized for the UP6-7.5TAS compressor. The motor has a minimum of class F insulation as standard and is specified to operate in ambient conditions up to 104F (40C).

The UP6-7.5 TAS is pre-wired from the factory based on your building power. This can either be run on three phase or single phase 230v incoming power.

Features and Benefits - UP6-7.5TAS

  • Fewer connections and smart integration eliminate leaks and pressure drops, ensuring maximum reliability
  • Advanced, high-efficiency combination cooler with roof mount package exhaust enables easy ducting
  • Small footprint frees up valuable floor space and reduces installation costs
  • Simple diagnostics for ease-of-operation and reduced downtime
  • Premium Poly-V belt drive system minimizes belt stretching and increases air output
Products specifications
Voltage 208/230/460 / Tri Voltage, 230/1/60
Connection Size 3/4" NPT
Phase Three, Single
Horse Power 7.5
Weight 1035lbs - 120 Gallon, 1019 lbs - 80 Gallon
Dimensions 54x 29 x 61"H - 80 Gallon, 75 x 29 x 61"H - 120 Gallon
Max Pressure (PSI) 150
Drive Style Belt Drive
Duty Cycle 100% Continuous Duty
Configuration Horizontal
Sound Level 65dBA
CFM @ 125 PSI 28
CFM @ 150 PSI 25
Cooling Fan Air Flow (Compressor) 700cfm
Integrated Dryer Yes
