The Ingersoll Rand UP6-10TAS-150 BM is a baseplate mounted 10hp rotary screw compressor. The “Total-Air-System” (TAS) includes the integrated air dryer and filtration and will displaces 32cfm at 150psi. This is a unique compressor package, comprising a fully integrated rotary screw compressor with a high efficiency cycling air dryer with general purpose and high efficiency air filters. The TAS package occupies less space, costs less to install, and delivers high quality compressed air to maximize operating efficiency and reduce costs. Since this is a baseplate mounted compressor it can be tied into a separate air receiver tank at your facility.

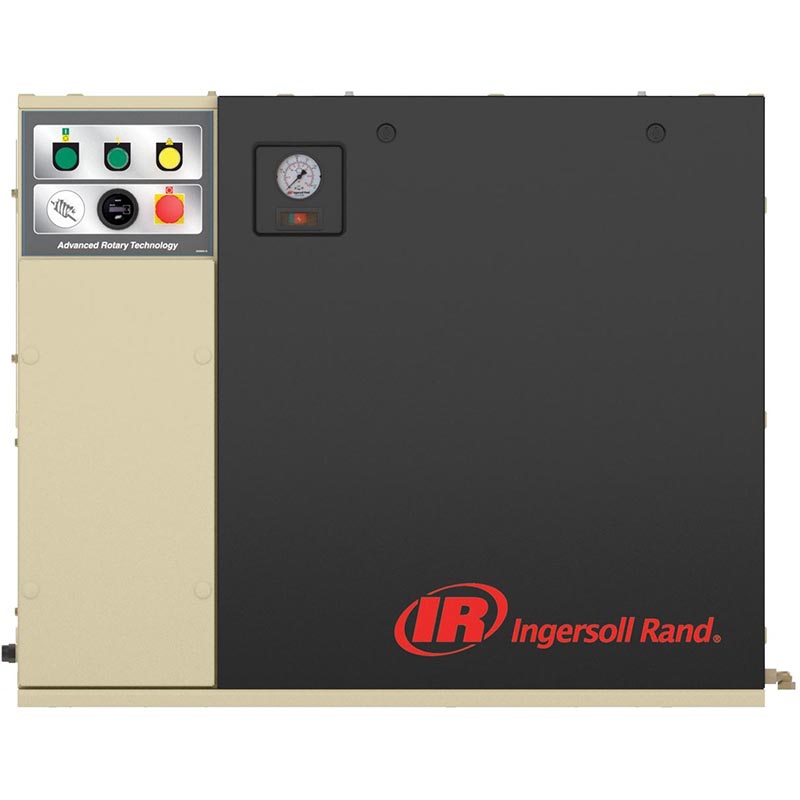

The package enclosure is carefully designed to provide effective sound emission control and suppression, while retaining easy access for maintenance and access to major components. The front door lifts off if required to provide easy access to all routine maintenance points. This door provides easy access to carry out all of the maintenance procedures for the compressor. The side panel can be removed for maintenance on the dryer and filter section.

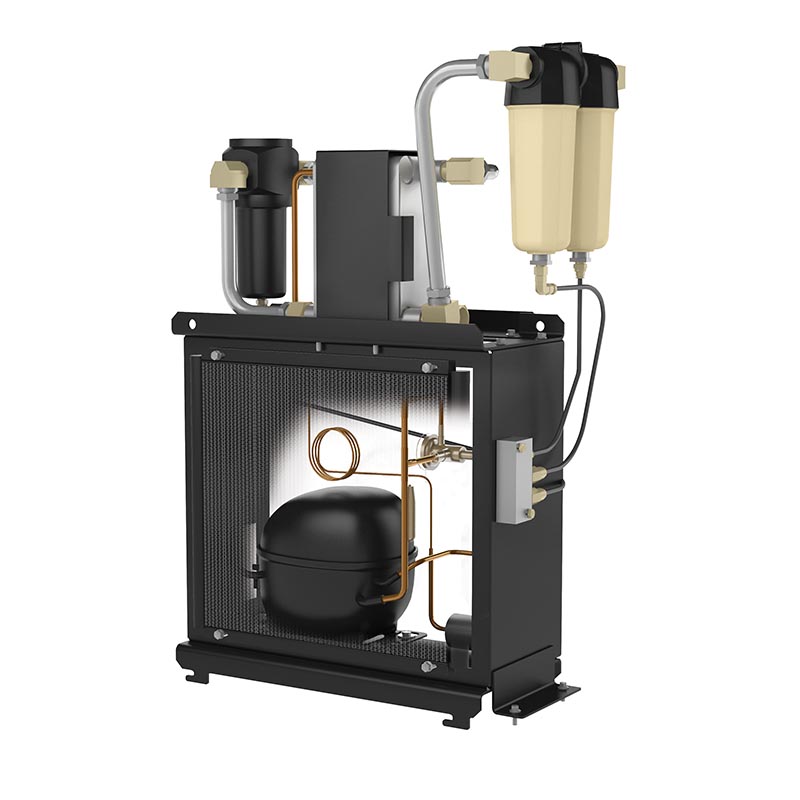

A cycling refrigerated air dryer for moisture removal is totally integrated within the compressed air package and using the same cooling air flow as the compressor package. The refrigerant air dryer which cycles on and off with the compressor, uses a unique single high efficiency welded stainless steel plate heat exchanger to perform the multiple duties of pre-cooler, refrigerant evaporator, and compressed air re-heater. The environmentally sound R-134a refrigeration cycle utilizes a high efficiency “micro channel” condenser and thermal control is provided with a quick acting hot gas bypass. Condensed water is removed from the airflow directly after the evaporator part of the heat exchanger, by a high efficiency external cyclone separator. This condensate is discharged by solenoid drain from a manifold in parallel with other drain points.
Speed, torque and operating characteristics have been designed to match the load of the compressor. Motor efficiency and power factor have been optimized for the UP6-10 TAS 150psi compressor. The motor has a minimum of class F insulation as standard and is specified to operate in ambient conditions up to 104F (40C).
This unit is wired in either 208v/3ph, 230v/3ph or 460v/3ph power.
Features and Benefits - UP6-10TAS-150 BM:
