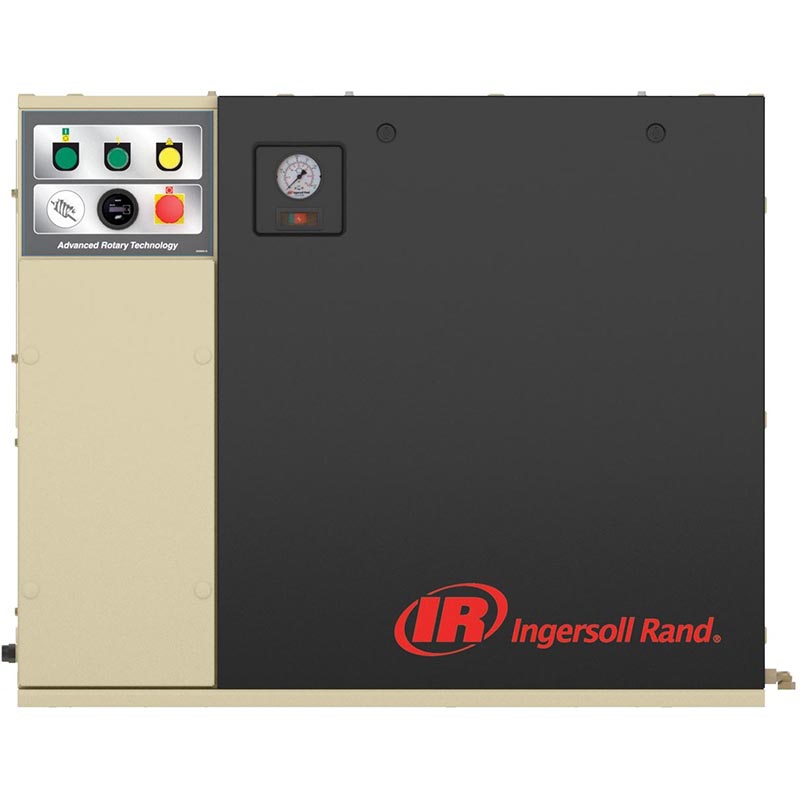

Ingersoll Rand UP6-10TAS-125 10HP Base Mount Rotary Screw Compressor with Air Dryer Total Air System

The Ingersoll Rand UP6-10TAS-125 BM is a baseplate mounted 10hp rotary screw compressor. The “Total-Air-System” (TAS) includes the integrated air dryer and filtration and will displaces 36cfm. This is a unique compressor package, comprising a fully integrated rotary screw compressor with a high efficiency cycling air dryer with general purpose and high efficiency air filters. The TAS package occupies less space, costs less to install, and delivers high quality compressed air to maximize operating efficiency and reduce costs. Since this is a baseplate mounted compressor it can be tied into a separate air receiver tank at your facility.

The package enclosure is carefully designed to provide effective sound emission control and suppression, while retaining easy access for maintenance and access to major components. The front door lifts off if required to provide easy access to all routine maintenance points. This door provides easy access to carry out all of the maintenance procedures for the compressor. The side panel can be removed for maintenance on the dryer and filter section.

A cycling refrigerated air dryer for moisture removal is totally integrated within the compressed air package and using the same cooling air flow as the compressor package. The refrigerant air dryer which cycles on and off with the compressor, uses a unique single high efficiency welded stainless steel plate heat exchanger to perform the multiple duties of pre-cooler, refrigerant evaporator, and compressed air re-heater. The environmentally sound R-134a refrigeration cycle utilizes a high efficiency “micro channel” condenser and thermal control is provided with a quick acting hot gas bypass. Condensed water is removed from the airflow directly after the evaporator part of the heat exchanger, by a high efficiency external cyclone separator. This condensate is discharged by solenoid drain from a manifold in parallel with other drain points.

Speed, torque and operating characteristics have been designed to match the load of the compressor. Motor efficiency and power factor have been optimized for the UP6-10 TAS compressor. The motor has a minimum of class F insulation as standard and is specified to operate in ambient conditions up to 104F (40C).

This unit is wired in either 208v/3ph, 230v/3ph or 460v/3ph power. The standard configuration is 125psi however this can be preset to run at 150psi if desired upon ordering.

Features and Benefits - UP6-10TAS-125 BM:

  • Fewer connections and smart integration eliminate leaks and pressure drops, ensuring maximum reliability
  • Advanced, high-efficiency combination cooler with roof mount package exhaust enables easy ducting
  • Small footprint frees up valuable floor space and reduces installation costs
  • Simple diagnostics for ease-of-operation and reduced downtime
  • Premium Poly-V belt drive system minimizes belt stretching and increases air output

Products specifications
Duty Cycle 100% Continuous Duty
Drive Style Belt Drive
Integrated Dryer Yes
Sound Level 68dBA
Connection Size 3/4" NPT
CFM @ 125 PSI 36
Horse Power 10
Max Pressure (PSI) 125
Voltage 208/230/460 / Tri Voltage
Phase Three
Configuration Basemount with dryer
Dimensions 41 x 29 x 36"H
Weight 725 lbs
