Ingersoll Rand F71IH Replacement Filter Element, 85565554

SKU: 85565554
Part #: 85565554
Free shipping (Excludes Hawaii & Alaska)

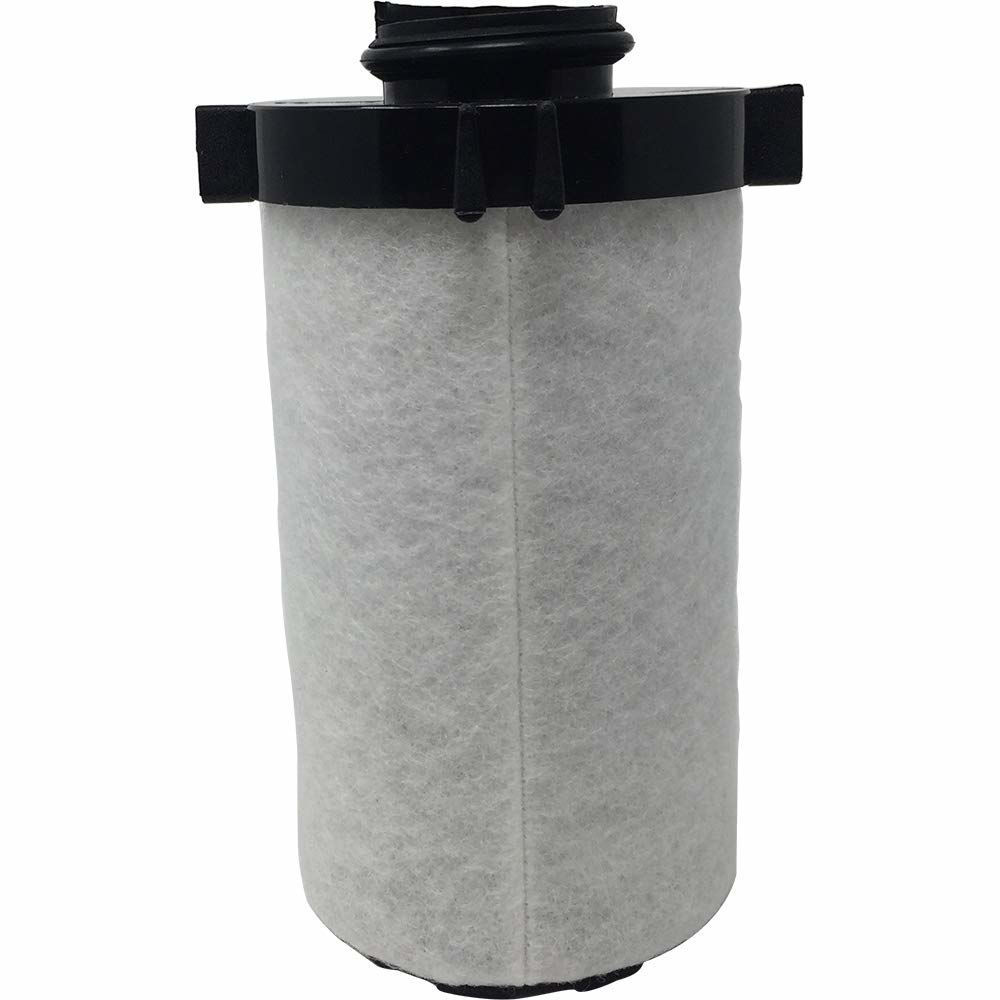

Ingersoll Rand (85565554) F71IH Replacement Filter Element

Replacement general purpose filter element for the F171IH filter housings. This is an extremely common filter element used on the inside of their 5hp and 7.5hp Total Air System (TAS) compressors manufactured between 2008-2014. This filter element was also is used in the 71 series housings that were manufactured by Ingersoll Rand. If you have a UP6-5-125 TAS or a UP6-7.5-125 TAS compressor you may have this filter on the inside of your compressor.

This filter was also used as an inline filter commonly plumbed into air piping or installed after a refrigerated air dryer. The OEM IR housing part number is 85565034. If your inline filter assembly part number is 85565034 then purchasing this 85565554 element is correct.

High efficiency filters remove oil aerosals and trace pieces of debris from the airstream. These elements should be changed out once per year to maintain optimal air quality. Failure to change these filter elements can not only result in impurities getting into the airstream but they can increase your energy cost due to pressure drop across the element. When changing this filter, it is also advised to change the internal element on the 85565547 F71IG filter that is typically installed before this F71IH filter.

This is an OEM filter from Ingersoll Rand. There are several different filter elements that were used on the inside of Ingersoll Rand’s Total Air System rotary screw compressors. If you would like confirmation that this part will work with your compressor or filter housing, please contact our parts department for verification.
