Ingersoll Rand 5hp UP6-5 Single Phase Rotary Screw Air Compressor, 230v/1 Phase, Tank Mounted

Ingersoll Rand 5hp UP6-5 Single Phase Rotary Screw Air Compressor, 230v/1 Phase, Tank Mounted

The Ingersoll Rand UP6-5 is a 5hp single phase rotary screw compressor that offers an exceptional value without sacrificing the reliability you’ve come to expect from Ingersoll Rand. The UP6 Series of oil-flooded rotary screw compressors provides a complete air solution in an easy to use, easy to access compact package, delivering efficient performance. This 5hp rotary screw air compressor is rated to displace 18.5cfm @ 125psi or 16cfm @ 150psi. This compressor comes mounted on an 80 or 120 gallon receiver.

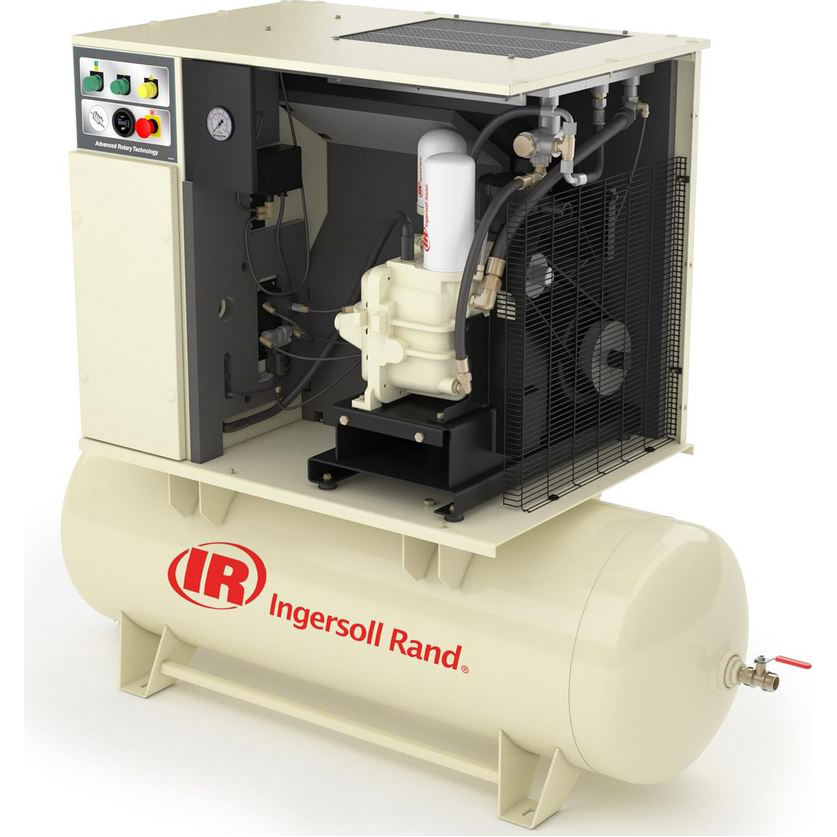

The package enclosure is carefully designed to provide effective sound emission control and suppression, while retaining easy access for maintenance and access to major components. The front door lifts off if required to provide easy access to all routine maintenance points. This door provides easy access to carry out all of the maintenance procedures for the compressor. The side panel can be removed for maintenance on the dryer and filter section.

Speed, torque and operating characteristics have been designed to match the load of the compressor. Motor efficiency and power factor have been optimized for the UP6-5 compressor. The motor has a minimum of class F insulation as standard and is specified to operate in ambient conditions up to 104F (40C).

This unit is pre-wired in 230v single phase power. The standard configuration is 125psi however this can be preset to run at 150psi if desired upon ordering.

Features and Benefits - UP6-5 Single Phase

• Efficient Operation: Advanced high-efficiency combination cooler with roof-mount package exhaust enables easy ducting
• Easy to Use: Simple diagnostics, auto start/stop and a spacious design to maximize serviceability makes the UP6 Series easy to operate
• Safer Work Environment: Whisper quiet operation allows for installation closer to point-of-use, reducing costs and ensuring a better and safer work environment
• Enhanced Reliability: Fewer connections and smart integration eliminates leaks and pressure drops maximizing reliability
• Extend Equipment Life: Closely maintained discharge pressure avoids excessive pressure bands increasing downstream tool and equipment life
• Compact Footprint: Small footprint frees up valuable floor space and reduces install cost
