Chicago Pneumatic 5HP Rotary Screw Air Compressor with Integrated Air Dryer, 3 phase, 60 Gallon Tank Mounted, 18.1 CFM @ 145PSI, QRS 5.5 HPD TM

$11,870.00
$9,496.00
SKU: QRS 5.5 HPD TM
Part #: QRS 5.5 HPD TM
Free shipping (Excludes Hawaii & Alaska)
Call to order 866-203-2944

Chicago Pneumatic QRS 5.5 HPD TM 5HP Rotary Screw Compressor w/ Dryer, 60 Gallon Tank 18.1 CFM, 3ph

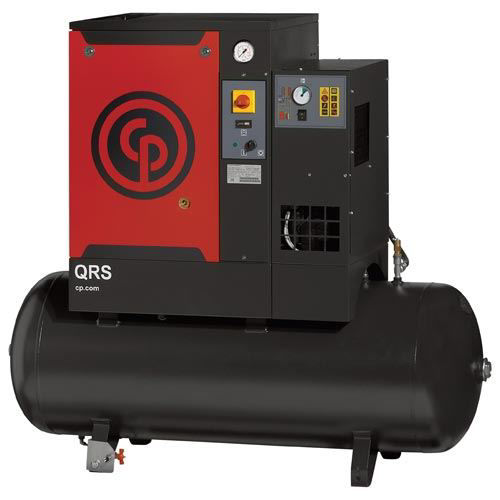

The Chicago Pneumatic QRS 5.5 HPD TM is a 5hp rotary screw air compressor with integrated refrigerated air dryer. This model is mounted on a 60 gallon storage receiver. The QRS 5.5 rotary screw air compressor runs on three phase power and produces 18.1cfm @ 145psi.

Engineered for high performance, efficiency and reliability, the Chicago Pneumatic line of QRS 5.5 HP quiet rotary screw air compressors can meet the compressed air demands of a tire shop, maintenance shop, vehicle body, paint shop or automotive dealership. Quiet by design, the QRS can be installed almost anywhere. With standard mounted receiver tank, the single phase QRS5.0HP is the leading rotary screw compressor for light industrial applications.

The Chicago Pneumatic QRS rotary screw compressors are the ultimate workshop compressor. This compressor is designed to run all day long without needing to shut down for cooling off. This compressor solution is plug and play - since it comes pre-mounted on a 60 gallon air receiver, simply hookup your electrical, connect your piping and you are ready to go!

Maintenance with the QRS5.0 HPD compressor is a breeze since the oil filter and separator are both spin-on filters. The air filter simply pops out for easy insertion of a new filter element. This is also one of the quietest compressors on the market and only displaces 62db(A) when fully loaded - it's designed to operating right on your shop floor, eliminating the need for an expensive compressor room with HVAC controls and noise dampeners.

The motor is a tri-voltage three phase totally enclosed fan cooled (TEFC) main drive motor. This keeps dust and debris out of the motor windings and controls ensuring a long life. This compressor is designed to run on 208v 230v or 460v three phase power only.

The HPD in the part number signifies that the QRS5.0 comes complete with a high performance air compressor dryer. Purchasing an air compressor that comes complete with an air dryer is common practice, and one benefit to the Chicago Pneumatic QRS5.0 air compressor is that a dryer comes standard. The integrated dryer will help to reduce and eliminate water and rust from accumulating in the tank, and also prevents water from flowing through the pipes and into the finished product.

Chicago Pneumatic rotary screw compressors come with a 1-Year Warranty with the option to extend to a full 5-year warranty

Convincing Benefits of Screw Compressor Technology: Are you considering a piston compressor? The rotary screw technology of the QRS 5.5 offers much stronger benefits. A quick comparison of performance, noise, and air quality shows the QRS to be the better workshop solution.

  • Stronger performance: The QRS generates more air and does so more efficiently thanks to its superior compression technology
  • Longer working hours: While pistons need cool-down periods a rotary can be used all day long
  • Cleaner air: Oil carry over is less than 5 ppm. The QRS generates much cleaner air than a typical piston compressor to protect your equipment
  • Built to last: The automated screw air end manufacturing line prevents human error ensuring the QRS is powerful and reliable.

Standard Features - QRS 5.5 HPD TM Chicago Pneumatic Air Compressor with Dryer:

  • Advanced screw air end: The QRS 3-10M comes with a new high-efficiency air end that delivers 15% more air and is 12% more efficient than its predecessor.
  • IE3 efficiency motor: allows for continuous operation while reducing energy costs.
  • Super-silent canopy: reduces sound emissions to a comfortable 61-68 dB(A).
  • Integrated refrigerated air dryer: Pre-installed and pre-plumbed to the air compressor. Eliminates water from getting downstream into the compressed air system.
  • Continuous Operating Capability: Can be ran 24/7/365 when needed.
  • Easy to install: Plug and Play design, the QRS 5.5 was built to be installed and used right where you need it: on your shop floor.
  • 60 gal. ASME/CRN Receiver Tank: Pre installed and plumbed with the air compressor. Simple and easy to bolt to the ground.
California Residents: Prop 65 WARNINGS
Products specifications
Duty Cycle100% Continuous Duty
Integrated DryerYes, Yes
Part Number4152054803
Horse Power5
Max Pressure (PSI)150
CFM @ 150 PSI18.1
Voltage208/230/460 / Tri Voltage
PhaseThree
ConfigurationHorizontal
Tank Size60 Gallons
Dimensions56L x 24W x 50H
Weight474 lb
