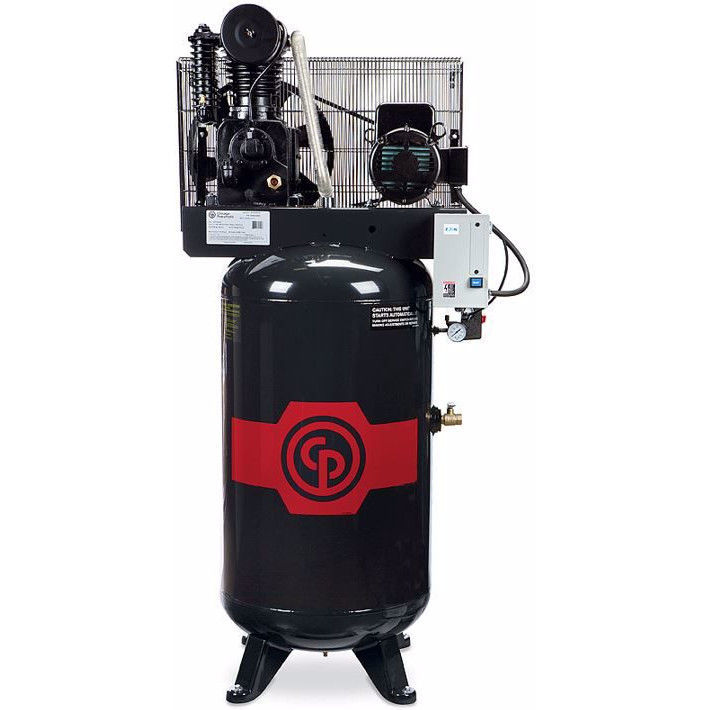

Chicago Pneumatic RCP-C7583VS4 7.5HP Case Iron 460v 3 80 Gallon Vertical Air Compressor

$4,147.84
$3,318.27
SKU: RCP-C7583VS4
Part #: RCP-C7583VS4
Call to order 866-203-2944

Chicago Pneumatic RCP-C7583VS4 7.5HP Case Iron 460v 3 80 Gallon Vertical Air Compressor

The RCP-C7583VS4 is a 7.5hp industrial grade three phase 460v air compressor on an 80 gallon receiver. The pump is pre-filled with oil and the compressor is "plug and play" – simply connect power to the compressor and it’s ready to run. This Chicago Pneumatic compressor is part of their "Iron Series" product line featuring an all cast iron pump with a 2 Year CP Secure Warranty with no additional purchase required.

The RCP-C7583VS4 compressor utilizes an all cast iron piston compressor pump. This pump is built to last and features a finned discharge tube for cooler operation, tapered roller bearings, and automotive style wrist pins for increased lifespan. Inside of the pump, disc and spring valves are utilized rather than reed or finger valves. Disc valves are more reliable and can be changed without pulling the entire pump apart. This C1 pump from Chicago Pneumatic is paired with an industrial grade and high quality Baldor motor.

Standard Features RCP-C7583VS4

  • Solid Cast Iron Cylinders
  • Mounted and wired magnetic motor starter
  • Cast iron two stage pump intercooler
  • 80 gallon vertical air receiver, ASME certified
  • Baldor motor – three phase, 460
  • Disc and spring valves – longer lasting than reed valves
California Residents: Prop 65 WARNINGS
Products specifications
Part Number8090253025
Voltage460/3/60hz
CFM Range13-25
Max Pressure (PSI)175
Drive StyleBelt Drive
PhaseThree
Tank Size80 Gallons
ConfigurationVertical
CFM @ 175 PSI24.0 CFM
Horse Power7.5
