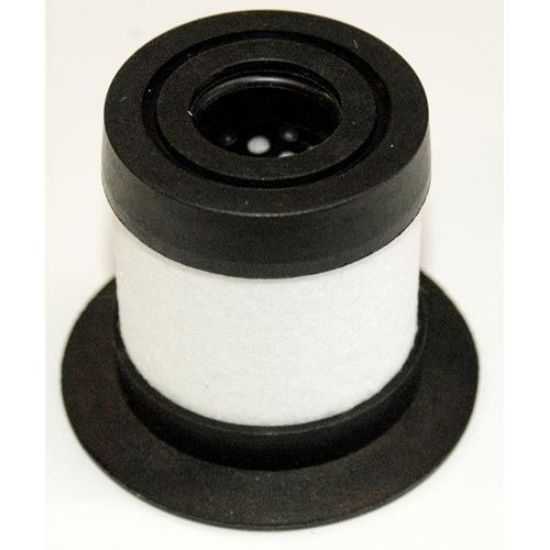

SPX Hankison OEM E9-12 3210729 General Purpose 3 Micron Replacement Filter Element

SPX Flow / Hankison OEM E9-12 3210729 General Purpose 3 Micron Replacement Filter Element

This is an OEM replacement part manufactured by SPX Flow / Hankison. The part number is E9-20 and the internal material number is 3210729.

E9-12 is a general purpose particulate replacement inline filter element. This is a grade 9 Hankison air compressor filter element. This filter element features corrosion resistant inner and outer cores. The air goes through a two stage filtration process. The first stage has a coated closed cell foam sleeve to act as a prefilter and flow dispenser. The second stage has multiple layers of matrix blended fiber media for ultra fine coalescence.

This filter is used to remove dust and debris particles down to 3 micron and will also remove moisture and oil down to 5ppm. It is commonly used upstream of a refrigerated air dryer or in places with a lot of debris in the air.

This element works with the following Hankison filter housings:

• HF9-12-4
• HF9-12-3
• HF9-12-4-CRS
• 07.4441-01

Hankison also made a variety of private label filters for other companies. E9-20 is also the OEM filter for the below part numbers and will work in the filter housing:
