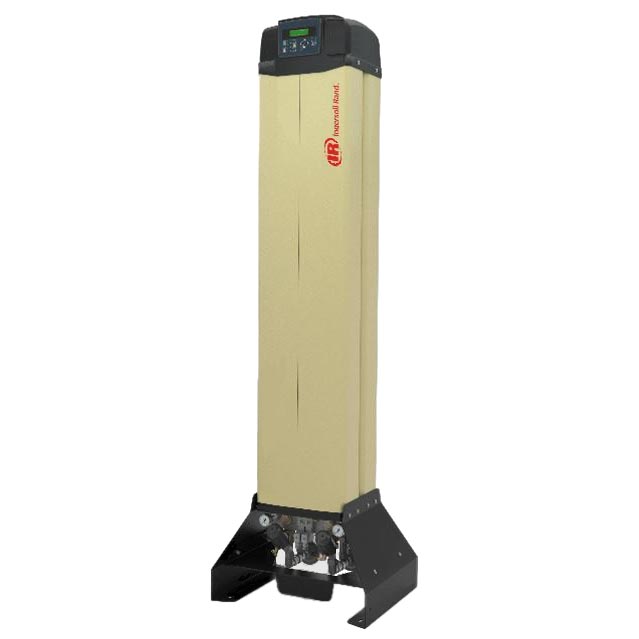

Ingersoll Rand DA70IM Modular Heatless Desiccant Air Dryer, 41cfm, -40F PDP, 115v, 47675078001

SKU: 47675078001
Part #: 47675078001
Call to order 800-542-8300

Ingersoll Rand DA70IM Modular Heatless Desiccant Air Dryer, 41cfm, -40F PDP, 115v, 47675078001

***If you are looking for the same air dryer in a more energy efficient version, we recommend the DA70IM with Energy Management System Purge Control to reduce the amount of compressed air that is consumed.***

The Ingersoll Rand DA70IM without purge control is a modular desiccant dryer that is designed to provide a steady -40ºF dew point. This is ideal for point-of-use applications so you only pay to dry the air required for your operation. The dryer delivers an ISO Class 2 dew point to help prevent corrosion, minimize production disruptions and losses due to moisture or contamination.

Ingersoll Rand’s DA heatless desiccant dryers are designed to adsorb moisture from compressed air. The DA dryers are constructed with two towers that alternate between online (drying) and offline (regenerating modes) in order to yield a continuous stream of dry air at the dryer’s outlet. Each tower contains desiccant beads. During normal operation, wet air passes through the online tower and water vapor from the air is adsorbed (collected) on the desiccant beads. While air is being adsorbed in the online tower, the moisture on the desiccant in the offline tower is removed by a process called desorption (regeneration). After an initial rapid depressurization, a portion of dried air from the online tower passes over the desiccant bed and carries the moisture off the bed and out the dryer’s exhaust.

The DA70IM is rated to 41cfm. The internal Ingersoll Rand part number for this dryer is 47675078001. The entire air dryer package operates on 110v/1ph/60hz power.

DA55IM w/out EMS Features and Benefits:

  • High Air Quality: High-performance desiccant technology delivers ISO Class 2 or Class 1 pressure dew point air for critical applications; high efficiency pre-filter and general Purpose after-filter protect desiccant and downstream air from oil contamination and particulates.
  • Reliable Operation: High-strength desiccant, durable valves and components and long cycles extend equipment life.Low pressure drop across dryer and filtration for energy savings
  • Reduced Energy Use: Low pressure drop design saves on energy costs and provides an economical drying solution.
  • State-of-the-Art Control: Easy to use, advanced microprocessor with visual display showing data in real time to maintain dryer performance at optimum levels, providing preventative maintenance alerts as well as protection notifications for efficiency and connectivity.
  • Easy Installation and Maintenance: With a compact footprint and low noise operation, modular dryers are suitable to be quickly installed right in the work environment and easy maintained, with preventative maintenance alerts
Products specifications
Flow Rate 41 cfm
Maximum Inlet Temperature 120 F
Max Pressure (PSI) 200 psi
Air Dryer Dew Point -40ºF Standard / Optional -100ºF
Min ambient temperature 50 F
Purge Air Flow 7.4 CFM
CFM Range 36-55
Weight 135 LBS
Dimensions 19 x 15 x 52"H
Connection Size 3/4" NPT
Voltage 115/1/60hz
