Ingersoll-Rand's 7100E15VP 460v air compressor is one of the most popular 15hp reciprocating air compressors on the market. It's two-stage v shape design pump is built to last and an ideal choice for heavy duty body shops, CNC machine shops, and more. The 7100E15 value plus package is priced right and designed for the most demanding jobs where a dependable air supply is required.
The 7100 compressor pump utilizes 100% cast iron cylinders in a v-type configuration. The cylinders are honed for low oil carryover and radial fins on the culinders help remove heat and provide increased cooling. Unlike traditional inline pumps, the 7100 v shape design has a 3 piece intercooler made of finned copper to provide maximum cooling area. It is located directly in the flywheel air blast to remove the heat of compression between stages keeping running temperatures and power needs to a minimum, ensuring high air delivery for horsepower expended. v-shape designed pump

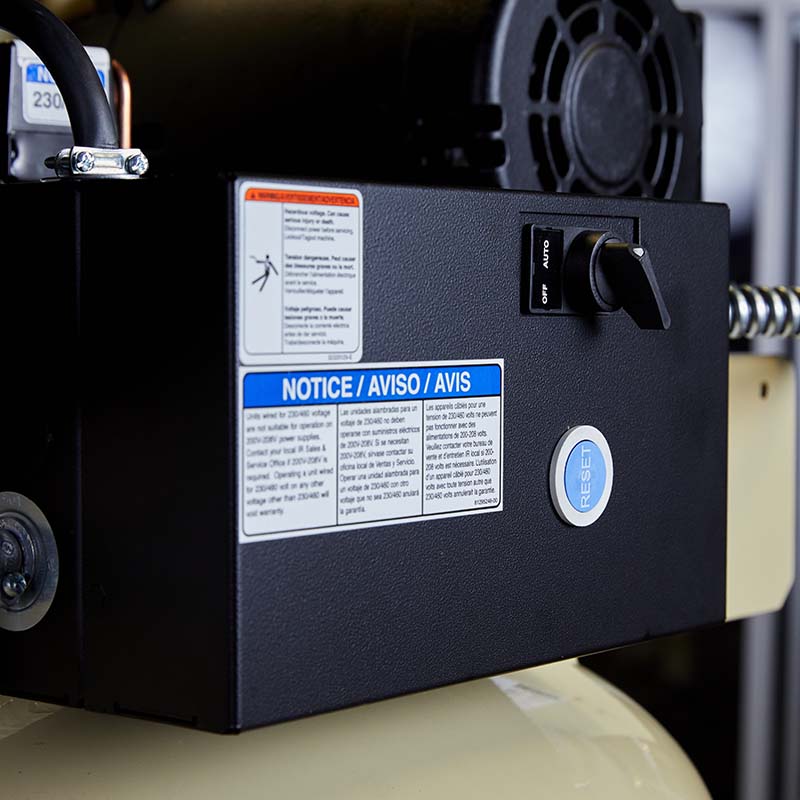

A E series magnetic motor starter with overload protection is included and pre-wired to the pressure switch and motor. Starters provide full voltage control of electric motors. They include thermal relays which protect the motor windings from harmful currents and resultant temperature rise caused by overloaded motor, low line voltage or stalled rotor. An on/off switch is also included.

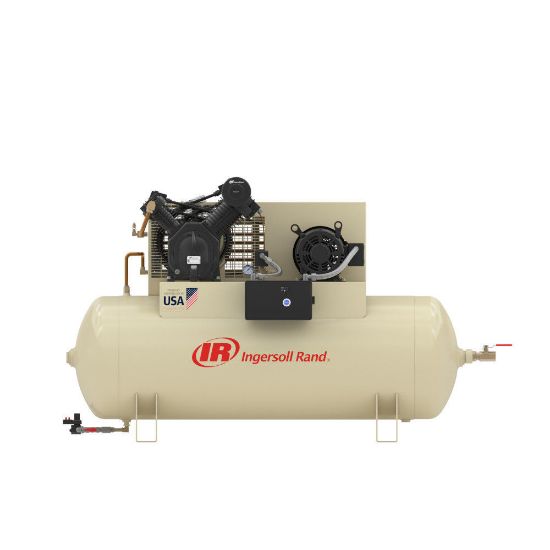

The IR 7100E15-VP 460v is mounted on a 120 gallon horizontal air receiver that is ASME coded and includes a pressure gauge, ball valve and safety relief valve.
This 7100E15VP Ingersoll Rand reciprocating air compressor is their value plus package. The value plus package includes:
Purchasing the 32305898 startup kit at the same time as the compressor will give you an additional year warranty on the pump. Each start-up kits contains all the parts needed to correctly start up and maintain the compressor for the first year of operation. 32305898 includes All Season Select lubricant, filter elements, MSDS sheet for lubricant, and one proof of warranty decal. The All Season lubricant is specifically formulated to protect and preserve the air compressor pump. All Season Select Lubricant can operate up to 2000 hours (under normal operating conditions) between oil changes.
Ingersoll Rand 7100E15V 460v Features
