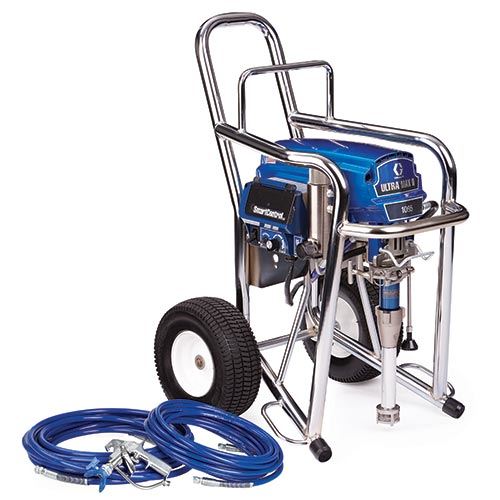

Graco Ultra Max II 1095 Airless Paint Sprayer IronMan

Part #: 16W901

Sorry - this product is no longer available

Free Shipping

in the 50 United States

Graco Ultra Max II 1095 IronMan Series

The New Ultra Max II 1095 is the industry standard for the large residential and commercial contractor who sprays a wide variety of coatings. Designed for the painting professional, who paints daily with the need for higher output to spray thicker materials or who likes to / needs to use larger tips.

The Ultra Max II 1095 has a brushless DC motor which is totally enclosed to protect internal components for prolonged motor life and includes a lifetime warranty.

Roll Cage Frame Design - The Graco Ultra Max II 1095 IronMan frame is built for the most rugged and demanding jobsites. With the heavy duty roll cage frame, it can withstand the most extreme and brutal abuse from industrial jobsites.

Extreme Duty MaxLife Pump - Features MaxLife sleeve and rod. Oversized clearances ensure minimal pressure drop and increased performance. Long-life ceramic and stainless steel balls included for maximum versatility no matter what you’re spraying.

ProConnect 2 - Quickly and easily swap out the pump for a spare with no tools.

SmartControl 3.0 - Offers precision pressure control that delivers a consistent spray fan without pressure fluctuations.

Other Features
  • TiltBack kickstand cart design holds the inlet clear of the paint bucket for easy one-person bucket changes
  • Easy Out Design Filters from the inside out to prevent filters from getting stuck when dirty
  • WatchDog™ system automatically shuts the pump off when material runs out
Box Includes
  • Silver Plus Gun
  • RAC X 517 SwitchTip and Guard
  • 2 BlueMax II Airless Hoses 1/4" X 50 ft. For a total of 100 feet of hose.
Products specifications
Gallons per Minute 1.2
Max Tip Size 0.035
Tip Type RAC X
Max Pressure (PSI) 3300
Configuration Hi-Boy
Material Water, Oil, Solvent-based (flammable)
Horse Power 2.4
Voltage 115
Weight 120 lb
Shipping Weight 186 lb

Graco Contractor Grade Sprayer Warranty

  • Lifetime Motor and Power-train
  • 3 Years Bumper-to-bumper, less wear parts
  • Details on Last Page of Corresponding Manual

California Residents see Prop 65 WARNINGS
