Graco Ultra 495 XT Electric Airless Paint Sprayer - Lo-Boy

$4,170.00
$2,769.00
SKU: 19D523
Part #: 19D523
GTIN: 769946346336
Free shipping (Excludes Hawaii & Alaska)

Graco Ultra 495 XT Electric Airless Paint Sprayer, Lo-Boy (19D523)

When purchasing the 19D523 Graco 495 XT from Portland Compressor, you will also receive coupons for:

  • 5 FREE RAC X LP Tips*
  • A FREE Pump Repair packing Kit*

*Online rebate by Graco AFTER sprayer has been delivered. Details will be included with the sprayer upon delivery. Additional information.

The Ultra 495 XT delivers an airless spray experience like no other. Made in the USA with a Graco 1.7 HP Xtreme Torque motor, featuring Next Generation Rapid-Response Pressure Control, elevated performance, and the longest life pump in its class.

Xtreme Productivity. Xtreme Reliability. Graco's Xtreme Torque Midsize Electric sprayers make it easier to get more work done in a day with increased flow and production rates.

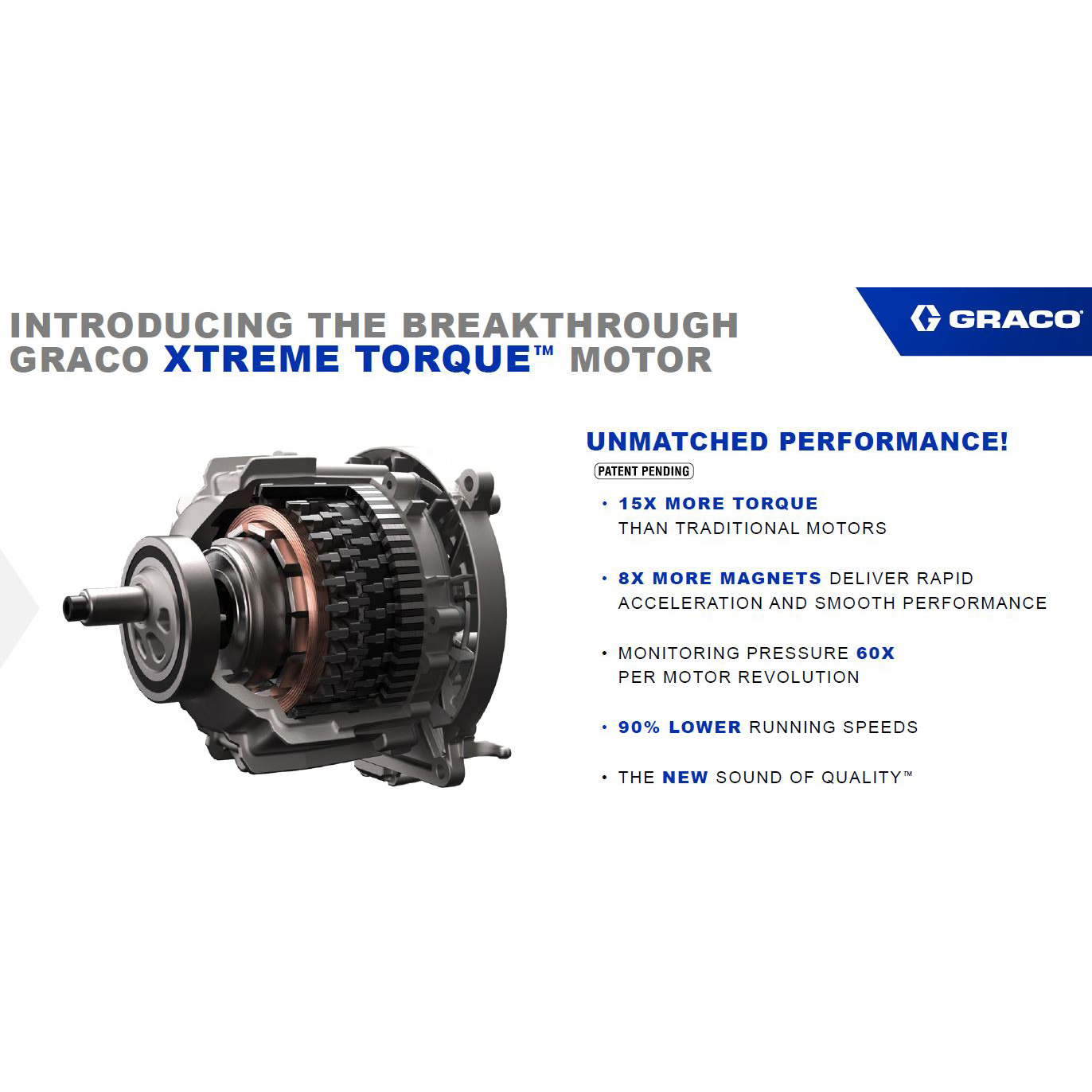

  • Xtreme Torque Motor Technology
    • 15X more torque than traditional motors
    • 8X more magnets provide unmatched power and performance
    • 90% lower running speeds extend motors life
    • 10X quieter
    • Brushless
    • Has has a lifetime warranty
  • RapidResponse Control
    • Instantly responds to deliver the best finish quality
    • More performance across its full tip size range
    • Industry's largest operating pressure range (50-3,300 psi)

The newest in the Ultra series - XT. This machine can spray as low as 50psi and up to 3300psi. There are two power mode ranges: Low Pressure, 50-2000psi and High Pressure, 500-3300psi. Low Pressure mode saves on tip wear and material usage. Use High Pressure mode for thicker materials.

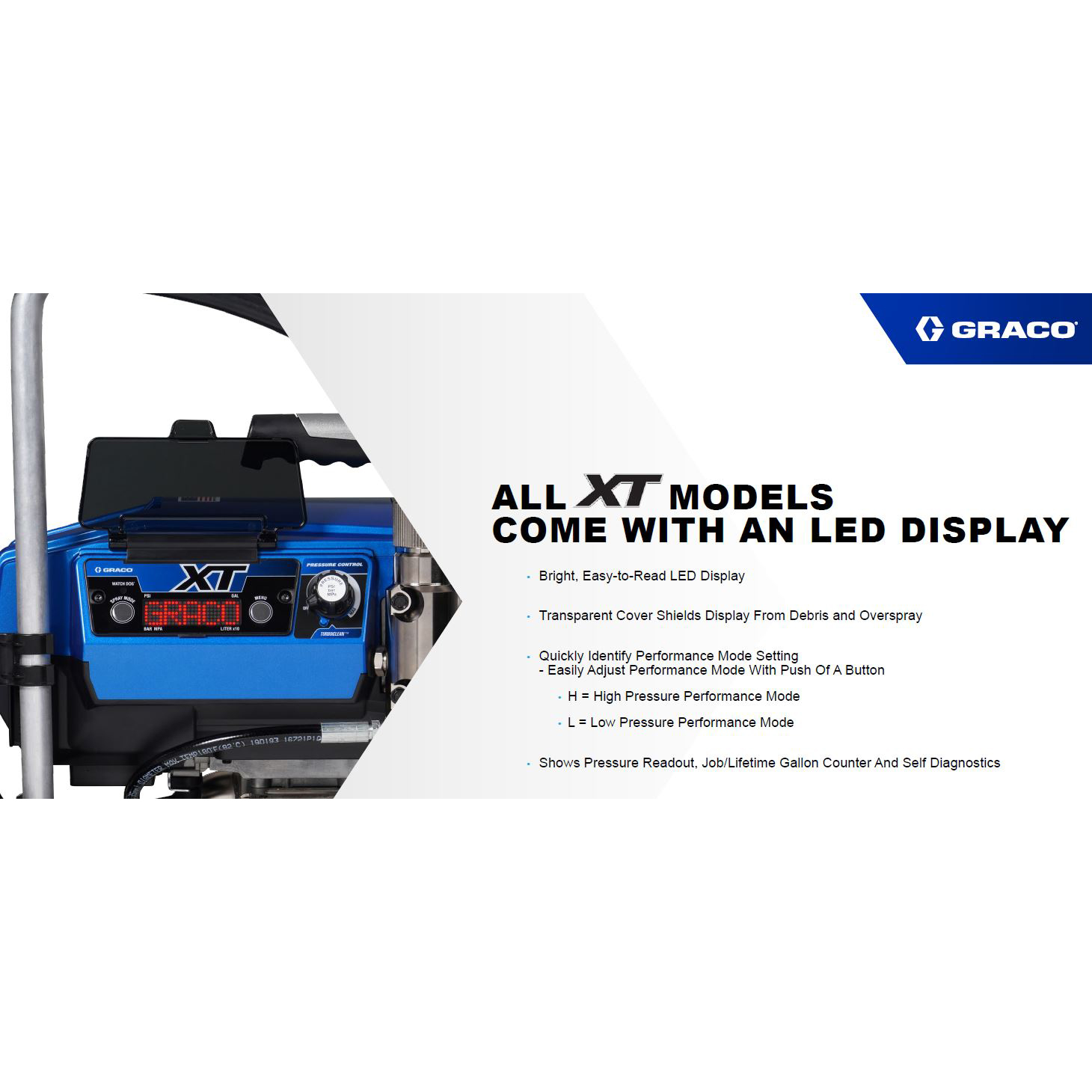

Outfitted with a new easy to read LED digital display which can be seen further away than previous displays.

The Ultra XT series comes with features previously only available on larger / Pro models.
These include

  • Endurance Vortex Piston Pump with ProConnect
    • Endurance Vortex Rod Lasts 3X longer than the closest competitor
        The rod rotates with each cycle to minimize wear
    • ProConnect Pump Removal for fast on-the-job service
  • TurboClean Cleaning System
    • Industry’s fastest pump cleaning system
    • Delivers 6X faster cleaning with 1/2 the water
    • Convenient location
  • WatchDog Pump Protection
    • Prevents damage by shutting off pump when it's time to refill

Due to the new motor design and gearless drive the XT has higher output and is lighter than previous models. The 495 XT has more output than the previous Ultra Max II 495 at 0.8 gpm, which equates to a larger maximum tip size of 0.027!

19D523 Graco 495 XT Sprayer comes complete with:

  • 240794 1/4 in x 50 ft BlueMax™ II Airless Graco Paint Sprayer Hose
  • 17Y042 Contractor PC Spray Gun
  • LP517 RAC X Tip (517)
  • 246215 Rac X Tip Guard
  • 238049 TSL Throat Seal Liquid, 4 oz

Additional Product Information

  • Graco Electric Airless Paint Sprayers Brochure
  • Graco Ultra 490-650 XT Operations and Parts Manual
California Residents: Prop 65 WARNINGS
Products specifications
Gallons per Minute0.8
Max Tip Size0.027
Tip TypeRAC X
Max Pressure (PSI)3300
ConfigurationLo-Boy
MaterialWater, Oil, Solvent-based (flammable)
Horse Power1.7
Voltage115
Shipping Weight83 lb
