Graco 249125 Pump Piston Rod Kit

Part #: 249125
Availability: In Stock
$104.00
$99.00
Graco
OEM Graco

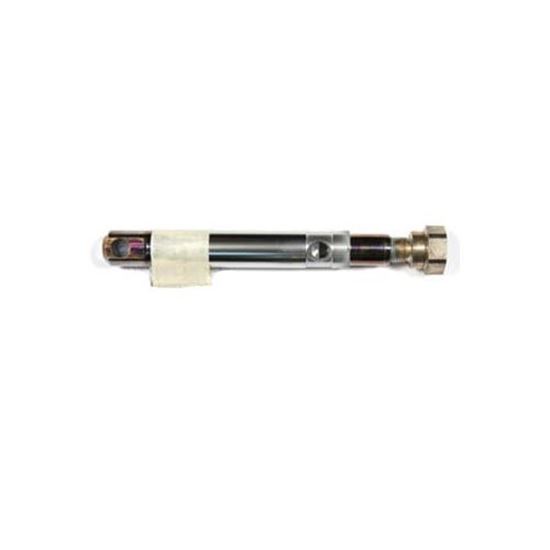

Graco Paint Sprayer Pump Piston Rod - 249125

The piston rod connects the internal parts to the motor and gear box. On the rods upstroke, it draws paint into the chamber, and on the down stroke it pushes the paint into the hose.

For use with these airless paint sprayers:

Airless Paint Sprayer Model No. Series Letter Fluid Section
490 II Ultra Max Hi-Boy 249914   246428
490 II Ultra Max Lo-Boy 249913   246428
490 II Ultra Max Stand 249911   246428
490 II Ultimate MX Stand 825028   246428
490 II Ultimate MX Hi-Boy 825036   246428
490 II Ultimate MX Lo-Boy 825029   246428
495 Hi Performance Max 233982   246428
495 Performance Max 233981   246428
495 ULTIMATE NOVA HB 826019   246428
495 ULTIMATE NOVA LB 826018   246428
495 ULTIMATE NOVA S 826017   246428
495 Ultra HI-BOY 233968   246428
495 Ultra LO-BOY 233967   246428
495 Ultra STAND 233966   246428
495 II Ultra Max Hi-Boy 249917   246428
495 II Ultra Max Lo-Boy 249916   246428
495 II Ultra Max Stand 249915   246428
495 II Ultimate Stand 825037   246428
495 II Ultimate MX Hi-Boy 825039   246428
495 II Ultimate MX Lo-Boy 825038   246428
595 Duron Pro Hi boy 234590   246428
595 Duron Pro Lo boy 234589   246428
595 Ultimate S. Nova Hi 826046   246428
595 Ultimate S. Nova Lo 826052   246428
595 Ultra Hi boy 234435   246428
595 Ultra Lo boy 234490   246428
595 II Ultra Max Hi-Boy 249919   246428
595 II Ultra Max Lo-Boy 249918   246428
595 II Ultimate MX Hi-Boy 825045   246428
595 II Ultimate MX Lo-Boy 825046   246428
695 Ultimate Mx Hi 826024   246428
695 Ultimate Mx Lo 826025   246428
695 Ultimate Mx Hi 825000 A 244195
695 Ultimate Mx Hi S 825000 B 246428
695 Ultimate Mx LO 825002 A 244195
695 ULTIMATE MX 825002 B 246428
695 ULTIMATE MX 824130   239769
695 ULTIMATE MX 824132   239769
695 Ultimate Mx Hi Boy 824910   243189
695 Ultimate Mx Lo Boy 824912   243189
695 Ultra Hi boy (Pump 244195) 246308   244195
695 Ultra Lo boy (Pump 244195) 245309   244195
695 Ultra Hi boy (Pump 246428) 246308   246428
695 Ultra Lo boy (Pump 246428) 245309   246428
695 Ultra Max 232910   243189
695 Ultra Max 232911   243189
695 Ultra Max 232912 A,B 243189
695 Ultra Max 232913 A,B 243189
695 Ultra Max 695 Hi-Boy(Old) 232130   239769
695 Ultra Max 695 Hi-Boy(Old)Bare 232131   239769
695 Ultra Max Hi boy 245000 B 246428
695 Ultra Max Hi boy 245000 A 244195
695 UltraMax Hi boy 245001 A 244195
695 UltraMax Hi boy 245001 B 246428
695 Ultra Max Lo boy 245002 B 246428
695 Ultra Max Lo-boy 245002 A 244195
695 Ultra Max Lo-boy 245003 A 244195
695 Ultra Max Lo-boy 245003 B 246428
695 Ultra Max 695(Old) Lo-Boy 232132   239769
695 Rental Hi Boy (245000 Sprayer) 245050   244195
190ES High Boy (Factory Filter) 261825   255198
190 LTS Magnum High Boy 257075   255198
210 ES High Boy 261830   255198
210 LTS Magnum 257085   255198
210 RentalPro 255679   246428
230 ES RentalPro 261904   246428
3400 GMAX (HI boy bare) 248663   246428
3400 GMAX (Hi boy Comp) 248664   246428
3400 GMAX (LO boy bare) 248665   246428
3400 GMAX (Lo boy comp) 248666   246428
390 Hi Boy 262019   246428
390 (With Factory Filter) 253958 A,B 246428
390(2005) 248800   249127
390 Duron (2005) 248802   249127
ProStep 390 826098   246428
390 Nova (With Factory Filter) 826084 A 246428
395 ULTIMATE NOVA HB 826016 A,B 246428
395 ULTIMATE NOVA LB 826015 A,B 246428
395 ULTIMATE NOVA S 826014 B 246428
390 Nova (With Factory Filter) 826084 B 246428
390 Nova (2005) 826055   249127
395 Performance Max 233980   246428
395 ULTIMATE NOVA S 826014 A 246428
395 Ultra 395 STAND 233960 A,B 246428
395 Ultra HI-BOY 233962 A,B 246428
395 Ultra LO-BOY 233961 A,B 246428
3400 LineLazer 248861   246428
FinishPro 390 249690   246428
FinishPro 395 249691   246428
