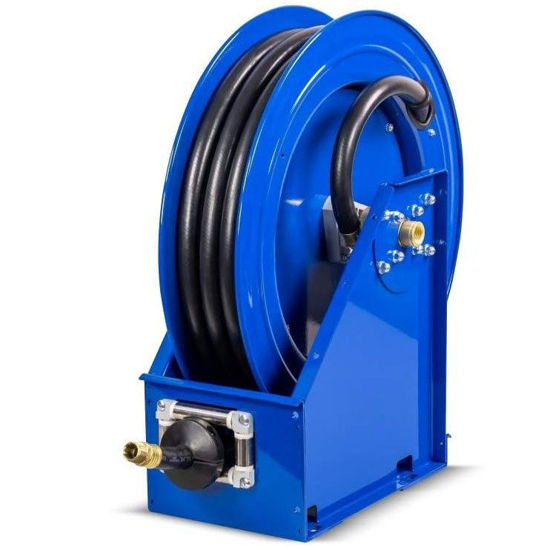

COXREELS XTM-LP-3100 Extreme Duty Spring Rewind Air and Water Hose Reel, .38 x 100' Hose, XTM Series

COXREELS XTM-LP-3100 Extreme Duty Spring Rewind Air and Water Hose Reel, 3/8" x 100' Hose, XTM Series

***MADE IN THE USA***

The XTM-LP-3100 is an extremely heavy duty hose reel that can be used for compressed air and water applications. This spring rewind hose reel includes a 3/8" x 100' air/water hose pre-installed on the reel.

COXREELS XTM "Extreme Duty" Series is designed for high demand industries requiring a level of construction above truck duty. Built with mining, off-road, heavy equipment, and heavy equipment lubrication in mind, the XTM series features the most robust offerings of the reel industry. This series is the combination of all the heavy duty features available inside a solid all-welded box frame, with an integral roller bracket, focused to deliver the toughest reel for the toughest environments and applications.

The swivel design on the XTM series uses a nitrile seal and the external fluid path is machined from solid brass. The spring drive retration has an enclosed and factory tuned/matched cartridge style spring motor. The internal spring is non-corrosive and stainless steel with a zinc plated ratchet. The retraction also includes a lock mechanism that will secure the hose at your desired length - you only have to utilize the hose required, rather than having excess hose drag across the ground creating a safety hazard.

Design and Structure

• Fully welded box frame construction, with redundant flanges. Wider frames feature Coxreels exclusive Super Hub™ triple axle support system
• Accessible stainless steel pawl and pawl spring on ratchet locking mechanism
• Stainless Steel rollers on all models
• 1" solid steel axle & dual lubricated precision bearings for smooth & stable rotation

Signature Features - XTM-LP-3100:

• Professional grade heavy duty steel construction
• Durable proprietary CPC™ powder coat process
• Rolled edges & ribbed discs provide strength & safety
• Leading 2-year manufacturer's limited warranty
• Made in the U.S.A. - Sold & Supported Worldwide

Fields of application:

• Lubrication
• Chemical Fluid Transfer
• General Industrial
• Off Road
• Manufacturing Plants
• Chemical Fluid Transfer
• General Industrial
• Lube Skids & Trucks
• Service / Mechanic / Utility Vehicles
• Mining, Construction & Railroad Operations

Specifications - XTM-LP-3100

• Hose Included? YES
• Hose Length - 100'
• I.D. - 3/8"
• O.D. - 5/8"
• Maximum PSI - 300
• Dimensions - 10.13"(W) 26.13"(H) 24.06"(L)
• Weight - 92 lbs
