Chicago Pneumatic 5HP 3 phase 460v 60 Gal QRS5.0 HP Horizontal Air Compressor

Part #: QRS5.0HP-3
Availability: Low Stock
Old price: $6,312.00
Call to order 866-203-2944
Free shipping

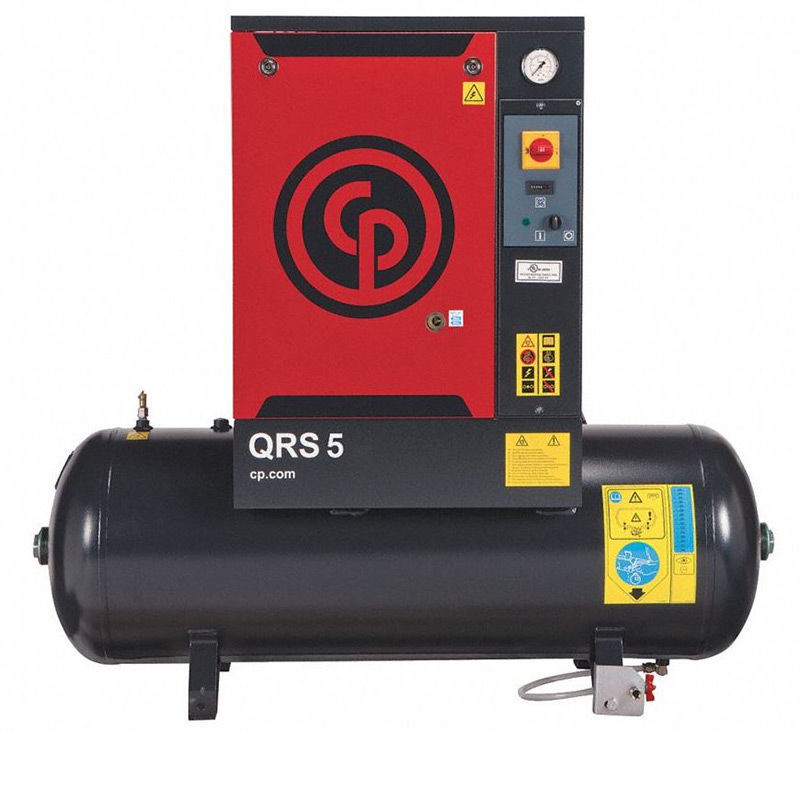

Chicago Pneumatic 5 Horse Power 3phase Rotary Screw Air Compressor - QRS5.0 HP

Engineered for high performance, efficiency and reliability, the Chicago Pneumatic line of QRS 5.5 HP quiet rotary screw air compressors can meet the compressed air demands of a tire shop, maintenance shop, vehicle body, paint shop or automotive dealership. Quiet by design, the QRS can be installed almost anywhere. With standard mounted receiver tank, the QRS5.0HP is the leading rotary screw compressor for light industrial applications.

The Chicago Pneumatic QRS rotary screw compressors are the ultimate workshop compressor. This compressor is designed to run all day long without needing to shut down for cooling off. This compressor solution is plug and play - since it comes pre-mounted on a 60 gallon air receiver, simply hookup your electrical, connect your piping and you are ready to go!

Maintenance with this compressor is a breeze since the oil filter and separator are both spin-on filters. This is also one of the quietest compressors on the market and only displaces 62db(A) when fully loaded - it's designed to operating right on your shop floor, eliminating the need for an expensive compressor room with HVAC controls and noise dampeners.

The motor is a tri-voltage totally enclosed fan cooled (TEFC) main drive motor. This keeps dust and debris out of the motor windings and controls ensuring a long life. Since it's tri-voltage by design, it will work with any common 3 phase power found in the United States. It's pre-wired 230v/3/60hz, but can be converted to either 208v/3/60 or 460/3/60 in as little as 5 minutes.

Chicago Pneumatic rotary screw compressors come with a 1-Year Warranty with the option to extend to a full 5-year warranty. The internal Chicago Pneumatic part number for this compressor is 4152054777.

Standard Features

  • Low sound enclosure - 62dbA
  • Dust protection cabinet
  • 3-phase, tri-voltage 208-230/460V
  • Continuous Operating Capability
  • 60 gal. ASME/CRN Receiver Tank
  • Totally enclosed fan cooled main drive motor
  • UL and UL-C Approved Control Panel
Products specifications
Part Number4152054777
Duty Cycle100% Continuous Duty
Horse Power5
Max Pressure (PSI)150
CFM @ 150 PSI18.1
Full Load Amps - 208v18.4
Full Load Amps - 230v15.8
Full Load Amps - 460v7.9
Tank Size60 Gallons
Dimensions56L x 24W x 50H
Weight419 lb
Choose from:
Standard Warranty -
  • 1-year or 4000 running hours against manufacturer defects.
Extended CP SECURE 5 Year Warranty* -
  • Complete compressor covered for 1-Year.
  • Major parts covered for 60 Months.
*Eligibility for the CP SECURE 5 Year Warranty requires:
  • Authorized distributor start-up of compressor ($350 Start-up Fee).
  • Maintenance in accordance with instruction manual.
  • Conduct annual oil analysis.
  • Use only genuine CP parts.
