Chicago Pneumatic 25HP, 208-230-460 Quiet Rotary Screw Air Compressor

Part #: QRS-25

Sorry - this product is no longer available

Please use QRS 25 125 BM

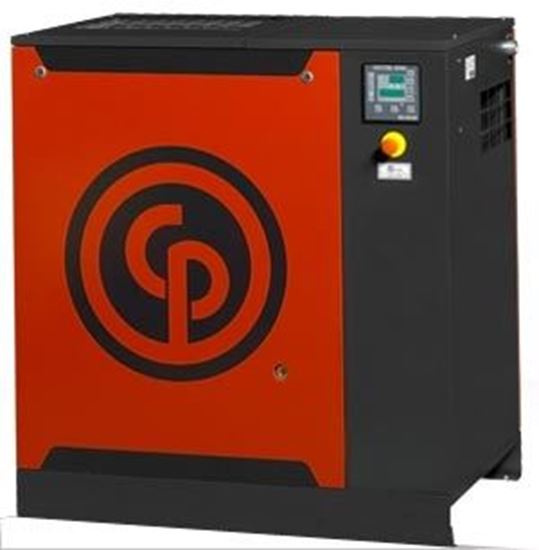

Chicago Pneumatic 25HP Quiet Rotary Screw Air Compressor - QRS25HP

The QRS25HP Chicago Pneumatic quiet rotary screw air compressor combines solid performance with long durability. Ideal for applications that need consistant and reliable air, the QRS is engineered and built to support the most demanding requirements.

The QRS-25 is managed by the ES3000, an electronic control unit programmed for energy saving operation with intelligent shut-down. It is known that when the motor is not running it does not consume electric power so the goal of the ES3000 is to let the electric motor work for the shortest period of time during idle operation. The intelligent shut-down feature can save a customer hundreds of dollars per year.

Standard Features

  • Low Sound Enclosure
  • 100-175 psig
  • Wye-Delta, reduced voltage start
  • Tri-Voltage, TEFC Motor
  • Continuous operating capability
  • Air-cooled aftercooler
Products specifications
Part Number 4152006963
Horse Power 25
Max Pressure (PSI) 150
CFM @ 150 PSI 89
Voltage 208/230/460
Phase Three
Configuration Basemount (tankless)
Dimensions 47" x 32" x 48"
Weight 1345 lb
Choose from:
Standard Warranty -
  • 1-year or 4000 running hours against manufacturer defects.
Extended CP SECURE 5 Year Warranty* -
  • Complete compressor covered for 1-Year.
  • Major parts covered for 60 Months.
*Eligibility for the CP SECURE 5 Year Warranty requires:
  • Authorized distributor start-up of compressor ($350 Start-up Fee).
  • Maintenance in accordance with instruction manual.
  • Conduct annual oil analysis.
  • Use only genuine CP parts.

California Residents see Prop 65 WARNINGS
