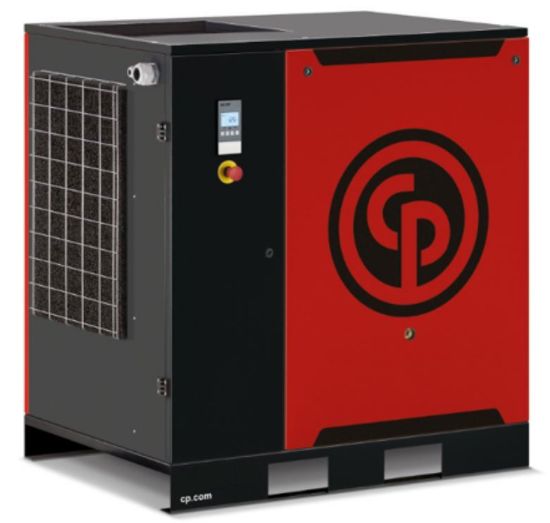

Chicago Pneumatic QRS 25 125 BM Quiet Rotary Screw Air Compressor, 99.4 CFM at 125 PSI

Chicago Pneumatic QRS 25 125 BM 25 HP Quiet Rotary Screw Air Compressor, 99.4 CFM @ 125 PSI

The QRS 25 125 is a rugged, rotary screw compressor that combines proven design with superior performance. Ideal for automotive and industrial applications, the QRS is engineered and built to support the most demanding requirements. The base mount model can save vital floor space and provide a continuous supply of quality compressed air. Installation into every application is quick and easy - simply supply power to the electrical panel, connect your discharge piping and you’ll have instant access to high quality compressed air. This specific QRS 25 is a base mount model and can be paired with a separate receiver tank. The QRS25 compressor is designed for 100% continuous duty and can support the most demanding air requirements. This means it can run indefinitely, non-stop, 24 hours a day.

The motor is a tri-voltage totally enclosed fan cooled (TEFC) motor. This makes for extremely simple installations with any building that has three phase power. The compressor is pre-shipped 230/3/60hz power, but can be easily changed over to 460v or 208v three phase. Since the motor is totally enclosed, this results in less debris being pulled into the bearings and windings for a longer life.

Maintenance is simple on the QRS line. The oil filter and separator elements are spin-on filters for easy removal and installation. The air filter can be replaced in just a few seconds. Since this model includes a dust protection enclosure, the inside of the compressor stays clean to increase life and performance. The dust enclosure doubles as a sound a sound attenuation device which lowers the decibel level to 69dBA, making this one of the quietest compressors on the market. An integrated air cooled aftercooler combined with a cooler operation results in less moisture buildup and less moisture downstream in your production equipment.

ES4000 Connect Microprocessor Controller:

The ES4000 Connect controller manages the QRS25 with air dryer. The ES4000 connect offers a clear display that is easy to use. Even better: thanks to Chicago Pneumatic's ICONS software, you don’t even need to walk over to your compressor to monitor and control its performance. You can check pressure, temperature, running hours and operating mode on any computer or mobile device. You can even start/stop your 25 horsepower air compressor, set a week timer and pressure band using Bluetooth on your smartphone or tablet.

The controller can sense when you are not using air and will shut the compressor off. When system air pressure drops, the compressor will automatically power on. This saves on energy without sacrificing air production in the plant. The ES4000 controller makes operation simple with warning and service alarms to help prevent any unexpected shutdowns.

The ES4000 Connect controller operates the compressor in load/unload mode. This operation is much more energy efficient than modulation controls used by other rotary screw air compressor manufacturers.

How can you ensure your CP compressor gets even better over time? Just set your ES4000 connect to receive over-the-air software updates. That means you never miss out on upgrades, new features, and optimized algorithms.

The QRS 25 rotary screw air compressor also includes ICONS. With ICONS, compressor control and monitoring are always within reach. The app keeps a constant eye on your compressor and sends you real-time notifications.

The ES4000 Connect comes with a host of features that allow you to optimize the reliability and efficiency of your CP compressor. Here are just a few examples:

• The Delayed Second Stop algorithm, included as standard, minimizes the time your compressor motor runs to give you a stable air flow and advanced energy savings.
• Run a leakage detection program in your ICONS app to prevent air and energy waste.
• Get notifications on your computer or mobile device of potential issues before they become problems.
• Service alerts ensure your compressor is always maintained for optimal operation

Please contact us if you have any questions or would like a free consultation on what compressor is best suited for your company.

Standard Features - 25hp Rotary Screw Compressor

• Low sound enclosure
• Wye-Delta, reduced voltage start
• ES4000 Microprocessor Controller
• Continuous operating capability
• 3-phase, 208-230/460V and 575V, TEFC Motor
• Space saving design, < 16 sq. ft.
• Load/no-load with intelligent shutdown
• Spin-on oil filter and separator
• NEMA 1 electrical protection
• Vibration isolated assembly
• UL and cUL approved control panel
• Permanently aligned belt drive system
