Atlas Copco GA7-125FF 10HP Rotary Screw Compressor w/ Dryer on 71 Gal Tank 42cfm 125 PSI 8153137015

Atlas Copco GA7-125FF 10HP Rotary Screw Compressor w/ Dryer on 71 Gal Tank 42cfm 125 PSI 8153137015

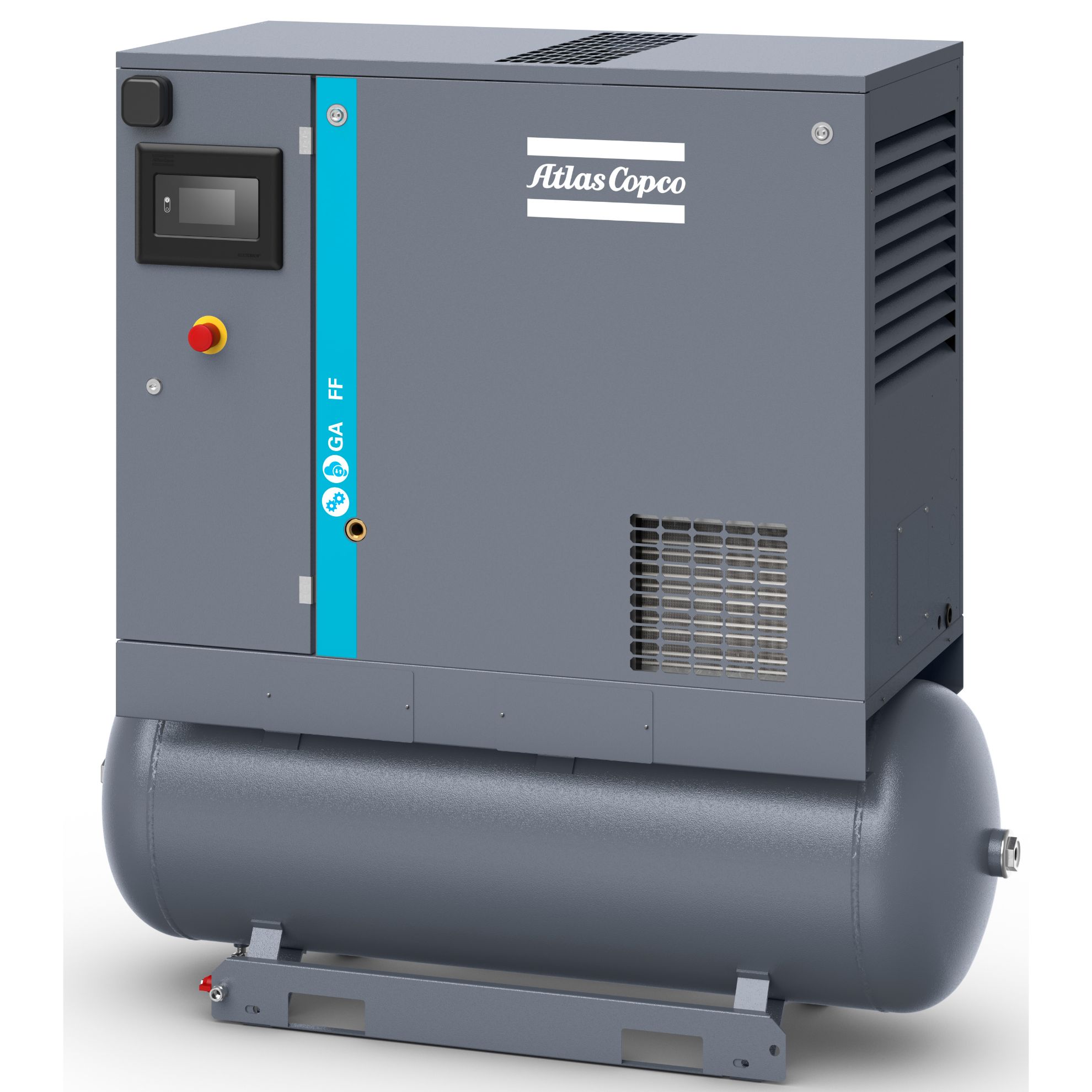

The Atlas Copco GA7 125 FF Full Feature is a premium 10 HP rotary screw air compressor with integrated air dryer. The GA7FF displaces 42.6cfm with a maximum pressure of 125psi. This 10hp air compressor comes mounted on a 71 gallon receiver tank.

The Atlas Copco GA7 Full Feature rotary screw air compressor is a dependable, space-saving compressed air solution that includes all necessary components in an air system: compressor, tank and dryer. Since all components are pre-plumbed into a single system, installation is a breeze - Just plug and play! .

Designed for real-world daily use, the GA7FF combines Atlas Copco’s in-house developed rotary screw element and IE3 energy efficiency motor to deliver strong air output with reduced energy waste and dependable long-term operation. Atlas Copco’s GA 5-11 platform is built to minimize total cost of ownership while maintaining the air quality and reliability needed to keep production moving.

The motor is a totally enclosed fan cooled (TEFC) tri-voltage design. The tri-voltage motor can be ran on 208v, 230v or 460v 3 phase power.  The compressor will ship pre-wired in 230v/3ph power, but can be converted to 208v or 460v in a few minutes.

This newest version of the GA7FF compressor includes an upgraded belt design. The new timing belt reduces slippage to ensure optimized operation with reduced maintenance costs.

Engineered for shops and industrial facilities that need dependable compressed air, quiet operation, and a compact footprint. This tank-mounted Pack configuration is built on a 71-gallon receiver tank and is ideal for users who want the proven performance of an Atlas Copco rotary screw compressor without an integrated refrigerated dryer. That makes it a strong fit for operations that already have downstream air treatment in place or want the flexibility to customize filtration and drying equipment separately.

The GA series is designed, manufactured and tested in accordance with ISO 9001, ISO 14001 and ISO 1217, Ed. 4, Annex C ensuring a long and trouble-free life at the lowest operating cost

Integrated Refrigerated Air Dryer:

The GA7 Full Feature air compressor comes with a built-in refrigerant air dryer. It cools the compressed air and removes any moisture before it can enter your air system. Untreated compressed air contains moisture, aerosols and dirt particles that can damage your air system, creating the risk of corrosion and leaks, and contaminate your end product. Maintenance and repair expenses can far exceed air treatment
costs. An air dryer is therefore essential to protect your systems and processes.

• Controlled and monitored by the Elektronikon central controller
• Space-saving all-in-one solution with low installation costs
• Use of energy-efficient, environmentally friendly refrigerant reduces operating costs and ensures zero ozone depletion.
• Zero waste of compressed air thanks to no-loss condensate drain.
• Advanced control functions ensure dry air under all circumstances and prevents freezing at low load.

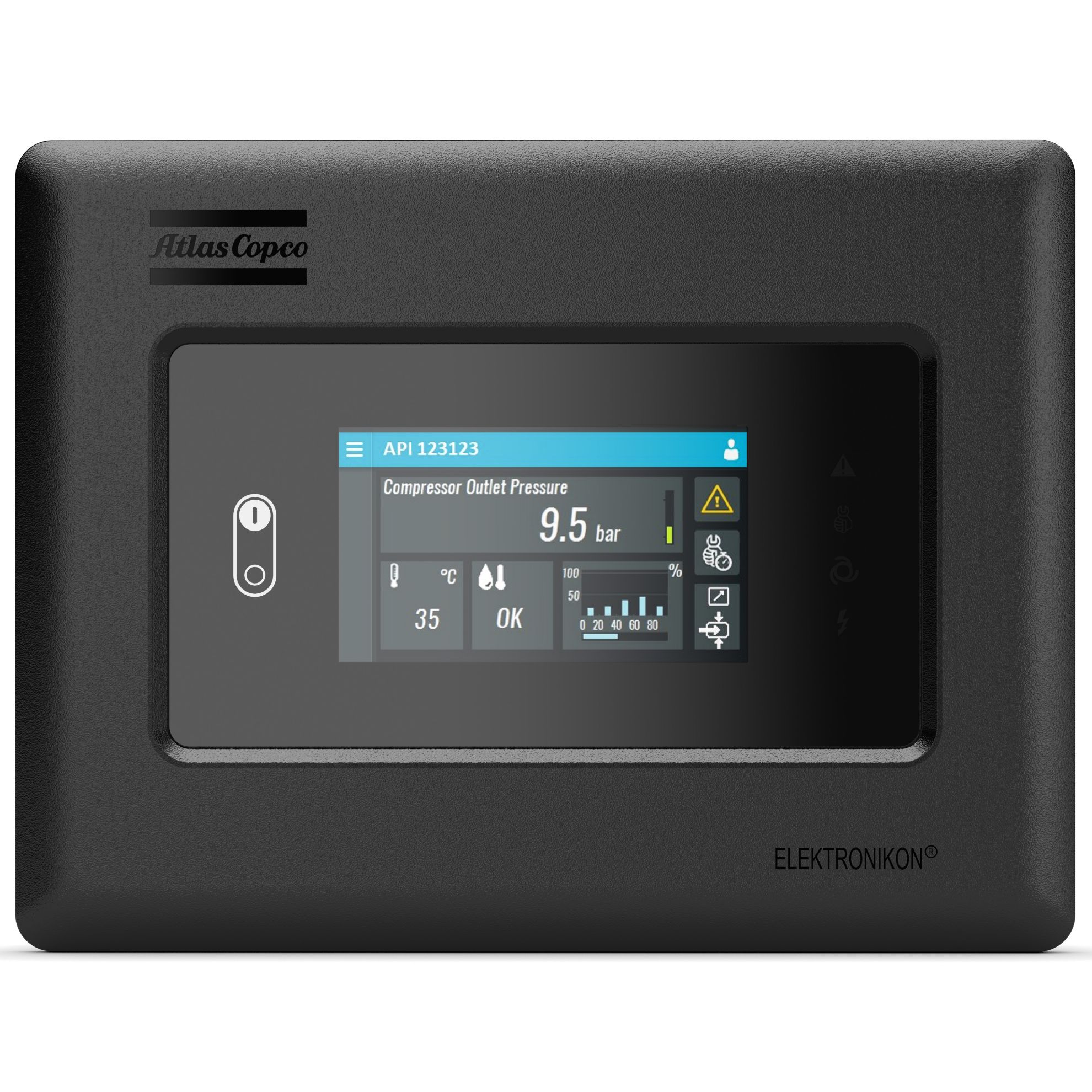

Elektronikon Touch Microprocessor Controller

The GA7FF 10HP rotary screw compressor includes an Elektronikon Touch controller. The Touch controller features a 4.3-inch high-definition color display, clear service indicators, scheduling capability, Ethernet-based visualization, and remote connectivity functions. Combined with SMARTLINK remote monitoring, it gives users better visibility into compressor status, service timing, and operating efficiency, which is especially valuable for small plants and busy service shops trying to minimize downtime.

• 4.3-inch high-definition color display makes compressor status, settings, and alarms easier to read at a glance.
• Clear pictograms and service indicator helps operators quickly understand machine condition and upcoming maintenance needs.
• User-friendly multilingual interface improves ease of use for a wider range of operators and facilities.
• Four different week schedules for 10 consecutive weeks allows users to better match compressor operation to plant hours and reduce unnecessary runtime.
• Ethernet-based compressor visualization makes it easier to monitor machine performance through a network connection.
• Remote control and connectivity functions gives users more flexibility in managing compressor performance and status without being directly at the machine.
• Supports SMARTLINK remote monitoring enables access to service alerts, maintenance follow-up, machine health, and efficiency insights from a computer or mobile device.

Key Features & Benefits: Atlas Copco GA7FF-125T / 8153137015

• 10 HP oil-injected rotary screw compressor for reliable compressed air in commercial and industrial settings.
• 125 PSI operating pressure for common shop and plant air applications.
• 42.6 CFM at 125 PSI provides steady air delivery for demanding daily use.
• 71-gallon horizontal receiver tank creates a compact, space-saving installation.
• Full Feature model with integrated dryer pre-installed
• Atlas Copco rotary screw element is designed for strong free air delivery with low power consumption.
• IE3 efficiency motor helps lower energy consumption over the life of the compressor.
• Timing belt drive helps reduce slippage while improving transmission efficiency and lowering maintenance compared with standard V-belts.
• Low-noise enclosed design allows installation closer to the point of use.
• Plug-and-play design simplifies installation and servicing.
