#2 Quick Release Fluid Set - Edge Gun

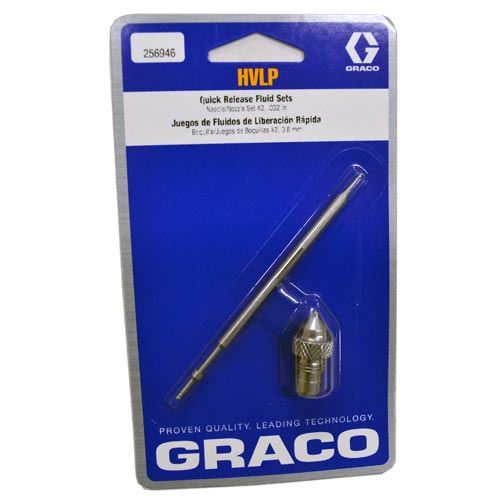

Graco 256946 #2 Quick Release Fluid Set for HVLP Edge Guns

For use with the original Graco HVLP EDGE Guns (256855, 256856, 257092, 257388, 257827, 24Y630)
Does NOT work with Edge II guns! Please verify the part number on your gun before placing order.

The Graco 256946 Fluid Set is a #2 Quick Release Needle-Nozzle Kit designed for use with the original Graco HVLP EDGE Spray Guns. This set is ideal for applying thin fine finish materials such as inks and dyes

.8mm / .032 Inch Size

The Graco 256946 Fluid Set Provides:

• Precision Application:  The .8 mm needle size allows for controlled and even application of fine finish materials, ensuring a smooth and professional-quality finish.
• Quick Release Design: Facilitates easy and fast swapping between different fluid sets, enhancing efficiency during multi-material projects.
• Durable Construction: Built to withstand the demands of professional use, providing longevity and reliability.
• OEM Compatibility: As an original equipment manufacturer (OEM) part, it ensures optimal performance and fit with compatible Graco EDGE HVLP guns.

The Graco 256946 Fluid Set works by providing the necessary components to control and apply different types of coatings efficiently through a spray gun.

The spray needle is responsible for controlling the flow of paint from the spray gun to the nozzle. The #2 needle in this set (.8 mm) is designed for finer materials like dyes, offering a controlled and smooth flow of fluid. The size of the needle determines how much material is released at once.

The nozzle works in conjunction with the needle. As the needle moves, it opens or closes the passage for fluid, controlling how much material flows out. The nozzle determines the shape and pattern of the spray, allowing you to customize your finish depending on the type of material you are spraying.

The Graco quick release feature allows you to easily swap out fluid sets without needing to disassemble the entire spray gun. This helps to save time, especially when working with multiple materials or needing to clean the gun in between coatings. Simply releasing and attaching a new fluid set lets you quickly switch between applications like lacquer, epoxy, or enamel.

256946 #2 Fluid Set Used For:

• Inks
• Dyes
• Non-Wiping Stains
• Automotive Finishes
