  4. Upper Packing Nut

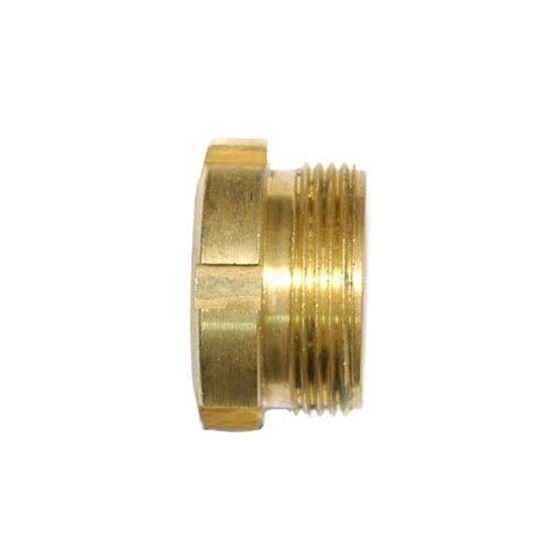

Picture of Upper Packing Nut
Shop Graco
OEM Graco

Upper Packing Nut

SKU: 193047
Part #: 193047
GTIN: 633955823280
Low Stock
Call to Confirm Availability
$34.00
$32.98
Please verify the series number of your unit before ordering Please verify the series number of your unit before ordering
Graco Upper Packing Nut - 193047 by Graco

The upper packing nut houses the bottom plug and screws into the main cylinder of the fluid section, enclosing the piston rod and sprayer packings.

For use with the following Graco airless sprayers:

Airless sprayer descriptionSprayer Model No.Series Letter
490 ST231208
490 ST high boy231357
490 UltraMax II Hi-Boy249914
490 UltraMax II Lo-Boy249913
490 UltraMax II Stand249911
490 Ultimate MX II Stand825028
490 Ultimate MX II Hi-Boy825036
490 Ultimate MX II Lo-Boy825029
495 Duron232654
495 Duron Hi Boy232655
495 Duron Pro (Performance Plus or Pro)232990
495 Duron Pro HiBoy (Performance Plus or Pro)232992
495 Hi Performance Max233982
495 Performance Max233981
495 ST231584
495 ST Hi-Boy231586
495 ST Hi-Boy232676
495 ST LO BOY231585
495 ST PRO-Hi Complete232942
495 ST PRO-Lo Complete232941
495 ST PRO-Stand Mount232940
495 ULTIMATE NOVA HB826019
495 ULTIMATE NOVA LB826018
495 ULTIMATE NOVA S826017
495 Ultra HI-BOY233968
495 Ultra LO-BOY233967
495 Ultra STAND233966
495 UltraMax II Hi-Boy249917
495 UltraMax II Lo-Boy249916
495 UltraMax II Stand249915
495 II Ultimate Stand825037
495 Ultimate MX II Hi-Boy825039
495 Ultimate MX II Lo-Boy825038
500 ULTIMATE Hi-Boy820105
500 ULTIMATE Lo-Boy820170
500 Ultra Bare231032A,B,C
500 Ultra Complete231041A,B,C
500 Ultra CSA Complete220409
500 Ultra Lo-Boy Bare231054AB,C
500 Ultra Lo-Boy Complete231055A,B,C
595 Duron Pro Hi boy234590
595 Duron Pro Lo boy234589
595 Ultimate S. Nova Hi826046
595 Ultimate S. Nova Lo826052
595 Ultra Hi boy234435
595 Ultra Lo boy234490
595 UltraMax II Hi-Boy249919
595 UltraMax II Lo-Boy249918
595 Ultimate MX II Hi-Boy825045
595 Ultimate MX II Lo-Boy825046
695 Ultimate Mx Hi826024
695 Ultimate Mx Lo826025
695 Ultimate Mx Hi825000A,B
695 Ultimate Mx LO825002A,B
695 ULTIMATE MX824130
695 ULTIMATE MX824132
695 Ultimate Mx Hi Boy824910
695 Ultimate Mx Lo Boy824912
695 Ultra Hi boy (Pump 244195)246308Used 244195
695 Ultra Lo boy (Pump 244195)245309Used 244195
695 Ultra Hi boy (Pump 246428)246308Used 246428
695 Ultra Lo boy (Pump 246428)245309Used 246428
695 Ultra Max232910
695 Ultra Max232911
695 Ultra Max232912A,B
695 Ultra Max232913A,B
695 Ultra Max 695 Hi-Boy(Old)232130
695 Ultra Max 695 Hi-Boy(Old)Bare232131
695 Ultra Max Hi boy245000A,B
695 UltraMax Hi boy245001A,B
695 Ultra Max Lo-boy245002A,B
695 Ultra Max Lo-boy245003A,B
695 Ultra Max 695(Old) Lo-Boy232132
695 Rental Hi Boy (245000 Sprayer)245050
DTX234140
DT234139
Encapsulator 1222685A,B,C,D,E
Encapsulator 1222685
LoPro 500 SPRAYER231123
NOVA (new) HiBoy824922
NOVA (new)-Stand824920
NOVA (old)820001
NOVA PLUS824002
NOVA SP820158
NOVA SPX824012
NOVA SPX (OLD)820226
NOVA-PRO HI boy824932
190ES High Boy (Factory Filter)261825
190 LTS Magnum High Boy257075
210 ES High Boy261830
210 LTS Magnum257085
210 RentalPro255679
230 ES RentalPro261904
230 ES (Home Depot Rental)246737
295 ST233686A,B
NOVA-PRO Stand Mount824930
PRO 301(Fuller O'Brien)223636
PRO 301 (Fuller O'Brien)224604
Pro 301ST(Fuller O'Brien)231202
Pro 301sts (Fuller O'Brien)231344
500 Fultronic (Fuller O'Brien)235039
PRO 501ST (Fuller O'Brien)231299
PRO 501 (Fuller O'Brien)223637
PRO 501 (Fuller O'Brien)224605
Roberts Monobond Deluxe231108
Roberts Monobond218307
SATURN-590’” PORTABLE220017
SP826031
SPX826032
SPX,SW,RENTAL (Reference 826032)826020
SPX826009A,B,C
ST234127
STX234126
Super Nova (With 2 piece piston valve)820002A
SUPER NOVA820002
SUPER NOVA SP (NEW)824175
SUPER NOVA SP (NEW)820169
SUPER NOVA SP (OLD)820248
SUPER NOVA-PRO HiBoy824942
SUPER NOVA-PRO LoBoy824941
SUPER NOVA-PRO Stand824940
3000 GM LOBOY (Bare)231550
3000 GM LOBOY231552
3000 GM UPRIGHT (Bare)231363
3000 GM UPRIGHT231551
3400 GMAX (HI boy bare)248663
3400 GMAX (Hi boy Comp)248664
3400 GMAX (LO boy bare)248665
3400 GMAX (Lo boy comp)248666
190 ES Stand233797E
380 EM226820
390 EM Bare231001
390 EM231390
390 Hi Boy262019
390 (With Factory Filter)253958A,B
390(2005)248800
390 Duron231553
390 Duron (2005)248802
ProStep 390826098
390 Nova (With Factory Filter)826084A
395 ST PRO-Hi Boy232922
395 ST PRO-Stand Mount232920
395 ULTIMATE NOVA HB826016A,B
395 ULTIMATE NOVA S826015A,B
395 ULTIMATE NOVA S826014A,B
390 Nova (With Factory Filter)826084B
390 Nova (2005)826055
390 ST231201
390 STS231353
395 Duron231580
395 Duron Pro (Performance Plus or Pro)232970
395 Performance Max233980
395 ST231575
395 Ultra 395 STAND233960A,B
395 Ultra HI-BOY233962A,B
395 Ultra LO-BOY233961A,B
400 Ultra231400
450 ST231547
455 ST231581
455 ST PRO-Hi Complete232932
455 ST PRO-Lo Complete232931
455 ST PRO-Stand Mount232930
490 EM Bare LoBoy220679
490 EM Bare231002
490 EM LoBoy231050
490 EM231490
3000 LineLazer232650
3400 LineLazer248861
Field Lazer248942
Turf Liner (S/W)826059
FinishPro 390249690
FinishPro 395249691
190 ES Stand (Home Depot Sprayer)232900A,B,C,D,E,F
190 ES Stand232901A,B,C,D,E
190 ES Stand233797AB,C,D
190 ES Stand233815A,B,C,D,E
500 FT826115
3000 LineLazer233010
190 LTS Magnum Stand257418
295 ST233686C
295 ST233823A,B
