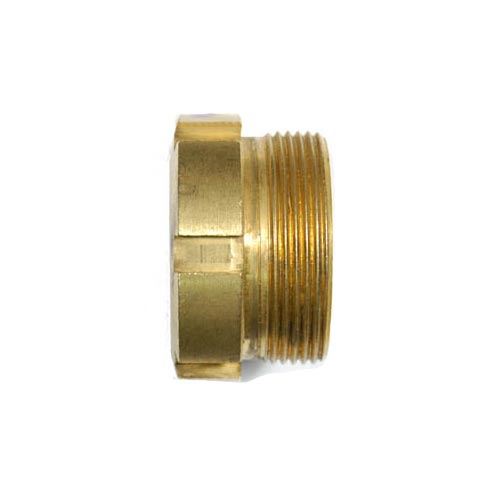

Picture of Graco 193046 Fluid Packing Nut
Graco
OEM Graco

Graco 193046 Fluid Packing Nut

$84.50
$81.97
SKU: 193046
Part #: 193046
GTIN: 633955823273
Ships From Manufacturer
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Please verify the series number of your unit before ordering Please verify the series number of your unit before ordering

Graco Upper Packing Nut - 193046 by Graco

The upper packing nut houses the bottom plug and screws into the main cylinder of the fluid section, enclosing the piston rod and sprayer packings.

For use with the following Graco airless sprayers:

Airless sprayer description Sprayer model number Series Letter
795 UltraMax II Prem Lo-boy 248033
795 UltraMax II Std Lo boy 248308
795 UltraMax II Standard Hi-Boy 249646 C
795 UltraMax II Premium Hi-Boy 249648 A,B
795 UltraMax II Premium Lo-Boy 249649
795 UltraMax II Standard Lo-Boy 249647
795 UltraMax II Premium Lo-Boy 255133 A
795 UltraMax II Standard Lo-Boy 255132 A
795 Ultimate MX II Prem. High-Boy 826072 A,B
795 Ultimate MX II Stand. High-Boy 826071 C
795 Ultimate MX II Prem. High-Boy 826042
795 Ultimate MX II Stand. High-Boy 826049
795 ULTIMATE MX 824140
795 ULTIMATE MX HB 825020
795 ULTIMATE MX LB 825022
795 Ultra Max 232140
795 Ultra Max HB 245020
795 Ultra Max LB 245022
900 ULTIMATE PLUS 824029
1000 ULTIMATE 820040
1000 ULTIMATE 820110
1000 ULTIMATE PLUS 820210
1000 Ultra Plus 231411
1000 Ultra (Sleeved Pump) 231043 B
1000 Ultra (Non Sleeved Pump) 231043 A
1000 Ultra BARE 231034
1000 Ultra Plus (Bare) 231410
1000 ULTIMATE NOVA (Non Sleeved Pump) 820053 A
1000 ULTIMATE NOVA Bare (Non Sleeved Pump) 820045 C
1000 ULTIMATE NOVA (Sleeved Pump) 820045 A
1095 ULTIMATE MX (Non-Display) 824150
1095 ULTIMATE MX (Display) 825030
1095 Ultra Max (Non-Display) 232150
590 EM Bare Sprayer 231590
590 EM Bare Sprayer (Sleeved Pump) 222586 D
590 EM Bare Sprayer 220856
590 EM Bare Sprayer (Non Sleeved Pump) 222586 A,B,C
695 Ultimate MX II Std Lo-boy 826048
695 UltraMax II Prem Hi-boy 248030
695 UltraMax II Prem Lo boy 248031
695 UltraMax II STD Hi-boy 248036
695 UltraMax II II STD Lo boy 248037
695 Ultimate MX II Prem Lo-boy 826041
695 Ultimate MX II Prem Hi-boy 826040
695 Ultimate MX II Std HI-boy 826047
695 UltraMax II Standard Lo-Boy 249643 A
695 UltraMax II Premium Lo-Boy 249645
695 UltraMax II Standard Lo-Boy 255130 A
695 UltraMax II Premium Lo-Boy 255131 A
695 Ultimate MX II Premium Hi-Boy 826069 D
695 Ultimate MX II Premium Hi-Boy 826069 A,B,C
695 Ultimate MX II Standard. Hi-Boy 826067 A,B,C
695 Ultimate MX II Standard. Hi-Boy 826067 D
695 Ultimate MX II Standard Lo-Boy 826068
695 Ultimate MX II Prem. Lo-Boy 826070
695 Ultimate MX II Prem. Lo-Boy 826094 A
695 Ultimate MX II Standard Lo-Boy 826093 A
700 SUPER (Sleeved Pump) 820066 D
750 Ultra Hi boy bare (Non Sleeved Pump) 231033 A
750 Ultra Hi boy bare (Sleeved Pump) 231033 B
750 Ultra Hi boy (Sleeved Pump) 231042 B
750 Ultra lo boy (Non Sleeved Pump) 221130 B
750 Ultra Plus Bare 231407
750 Ultra Plus 231573
795 UltraMax II Std Hi-boy 248038
795 UltraMax II Prem Hi-boy 248032
750 Ultra Hi boy (Non Sleeved Pump) 231042 A
750 Ultra lo boy Bare (Sleeved Pump) 221120 A
750 Ultra lo boy Bare (Non Sleeved Pump) 221120 B
750 Ultra lo boy (Sleeved Pump) 221130 A
1095 Ultra Max (Display) 245030
270 ES (Home Depot Rental) 246417
PRO 1002 (Fuller O'Brien) 223630
PRO 701 (Fuller O'Brien) 223638
330 GS (Home Depot Rental) 246418
360G RentalPro (GMax ll 3900) 255667
3500 GM Hi boy 231578
3500 GM Lo boy 231579
3500 GM Hi-Boy 231057
3500 GM Lo boy 231077
3500 GM Lo boy 222028
3500 GM Lo boy 221040
3900 GMAX (Non Display) 232610
3900 GMAX (Non Display) 232611
3900 GMAX (Non Display) 232612
3900 GMAX (Non Display) 232613
3900 GMax Bare/HiBoy 233701
3900 GMax Bare/LoBoy 233700
3900 II GMax Prem Hi boy 248686
3900 II GMax Prem Lo boy 248685
3900 II GMax Std HI Boy 248684
3900 II GMax Std Lo Boy 248683
333 Ultra 231333
433 Ultra 231008
433 Ultra 231433
3500 LineLazer 231132
3900 LineLazer II W/1 Gun with driver 233726
3900 LineLazer II W/2 Guns with driver 233727
3900 LineLazer II W/1 Guns 232651
3900 LineLazer II W/2 Guns 232652
3900 LineLazer III 1 GUN 233688
3900 LineLazer III 2 GUNS 233689
3900 LineLazer IV 1 gun 248862
3900 LineLazer IV 2 gun 248863
3900 LineLazer IV Auto-Layout 1 gun 253920
3900 LineLazer IV Auto-Layout 2 gun 253953
160 Model Airless (LDI) Series 231149
Mark IV W/GFI Filter 249636
700 Super Nova (Non Sleeved Pump) 820066 A,B,C
695 UltraMax II Standard Lo-Boy 255130 B
695 UltraMax II Premium Lo-Boy 255131 B
795 UltraMax II Standard Lo-Boy 255132 B
795 UltraMax II Premium Lo-Boy 255133 B
695 UltraMax II Standard Hi-Boy 249642 A,B,C,D
695 UltraMax II Premium Hi-Boy 249644 A,B,C,D
795 UltraMax II Standard Hi-Boy 249646 A,B
795 UltraMax II Premium Hi-Boy 249648 C
3500 LineLazer 2 Gun 231140
795 Ultimate MX II Stand. High-Boy 826071 A,B
795 Ultimate MX II Prem. High-Boy 826072 C
695 Ultimate MX II Standard Lo-Boy 826093 B
695 Ultimate MX II Prem. Lo-Boy 826094 B
