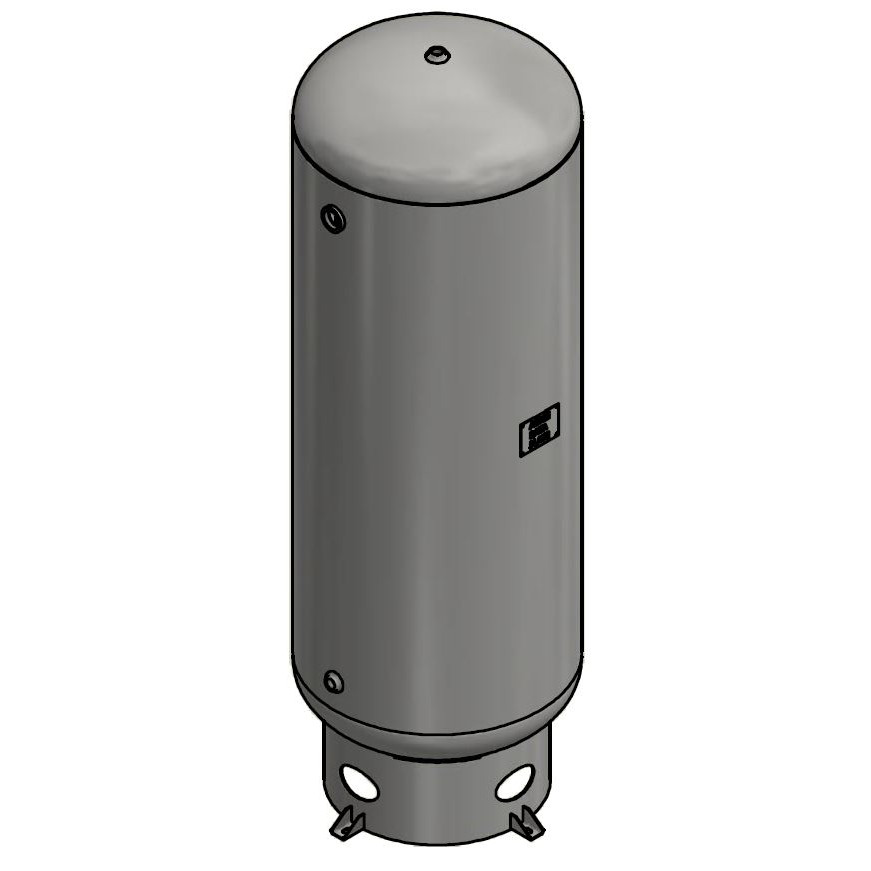

Samuel A10325 80 Gallon Vertical Air Receiver Tank, 200psi Max Pressure, 69" x 20"
The Samuel A10325 vertical air receiver has a capacity of 80 gallons and is rated for 200psi maximum air pressure. This bolts to the ground via (4) equally spaced 11/16" x 1 1/16" slots. This is pre-primed from the factory in a gray universal water based Alkyd enamel
There are eight total openings for NPT fittings. These include 1/4" (for a safety valve/gauge), 1/2", 3/4", and 2"
Samuel A10325 Specifications and Benefits- Capacity (Gallons): 80 Gallon
- Maximum Pressure: 200psi
- Diameter x Height: 20" x 69"H
- Weight: 205lbs
- CRN#: L4033.5C
- Configuration: Vertical without Topplate
- Built in accordance with the ASME Section VIII Division I code
- "U" stamped and registered with National Board
Please let us know if you have questions on how to size an air receiver for your plant. We have calclulators to assist with pump up time, peak demand sizing and more. Don’t see the size or configuration you're after on our website? Give us a call! There are many custom options available depending on your needs. We can supply vertical air tanks, horizontal receivers, special exterior/interior coatings and more.
