Rolair 5230K30CS 5HP Electric Wheelbarrow Air Compressor, 230v/1phase, 18.8cfm, 135psi

In Stock
SKU: 5230K30CS
Part #: 5230K30CS
GTIN: 662865251821
Call to order 866-203-2944

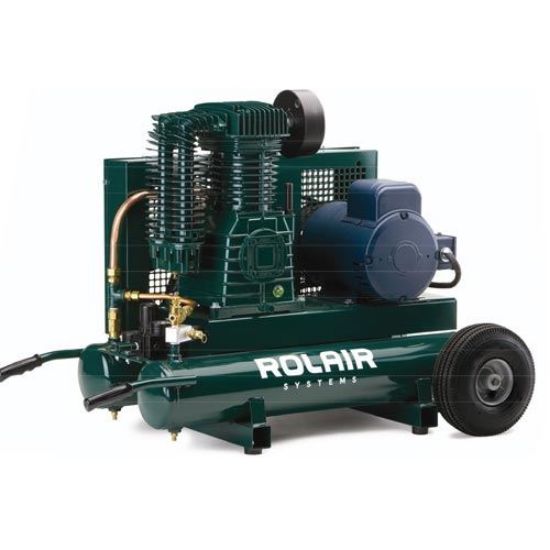

Rol-Air 5230K30CS 5hp 2 Stage Portable Electric Wheelbarrow Air Compressor

The Rolair model 5230K30CS is the biggest electric portable available. This 230v/1/60hz air compressor delivers 18.8 CFM @ 90 PSI. This is the equivilent flow to a 5hp stand up air compressor mounted on an 80 gallon receiver - but the 5230K30CS is a wheelbarrow compressor with only a 9 gallon tank! The two-stage pump compresses the air to 175psi. allows for cooler and more efficient operation. Because of the high CFM output and for protection of the motor, this unit is built for constant-run operation.

This RolAir electric air compressor features a heavy duty two stage pump. The compressor pump also includes ball bearings, is splash lubricated, and has cast iron valve plates with Swedish Lamellar reed valves. The connecting rods are made of aluminum alloy, and has automotive style inserts.

The 5230 compressor operates on 230v single phase power. A pre-installed pilot/unloader valve is mounted on the receiver tank. This valve will allow the compressor to run 100% duty cycle and will bleed off air pressure when additional air is not needed.

Rol-Air 5230K30CS Features

  • Heavy duty 5hp main drive motor
  • Intake Filter with Silencer and Replaceable Element
  • Air-Cooled aftercooler for moisture removal
  • Totally Enclosed Steel Belt Guard
  • Pilot Unloader Valve for Constant Speed Operation
  • Pressure Gauge 0-200 in 5 lb. Graduations
Products specifications
Drive Style Belt Drive
Horse Power 5
Max Pressure (PSI) 150
CFM @ 90 PSI 18.8
Voltage 230/1/60
Phase Single
Configuration Wheelbarrow
Tank Size 9 Gallons
Dimensions 46-L x 27-W x 34-H
Shipping Weight 296
