Rol-Air 4090HK17 5.5 HP Wheelbarrow Gas Drive Air Compressor with GX160 Honda Engine

In Stock
SKU: 4090HK17-A
Part #: 4090HK17-A
GTIN: 662865210569
Call to order 866-203-2944

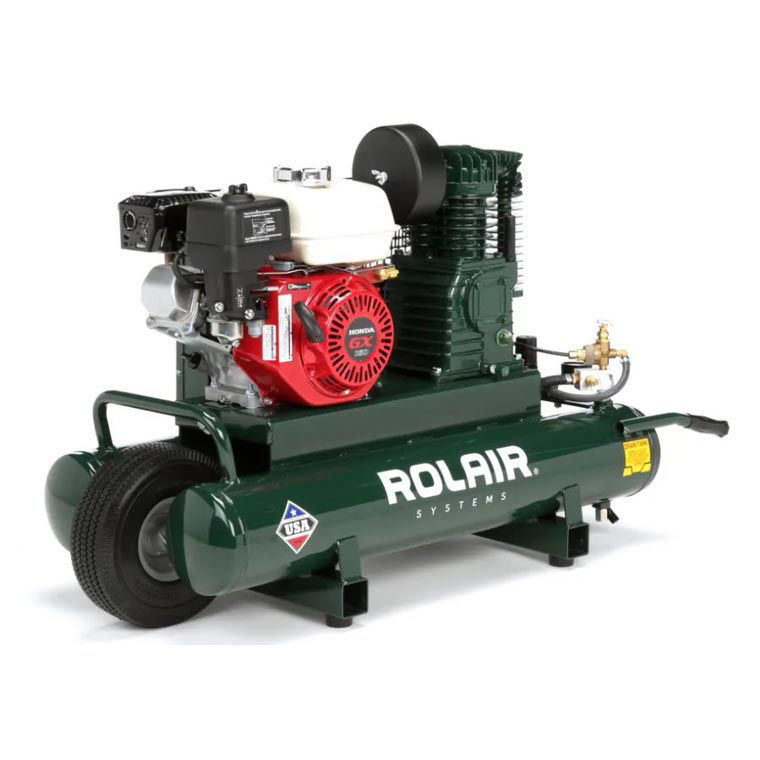

Rol-Air 4090HK17 5.5 HP Wheelbarrow Gas Drive Air Compressor with GX160 Honda Engine

The 4090HK17 gas-powered air compressor has long been the top choice of framing and roofing contractors. It is the top compressor when looking for high quality and reliability at an affordable price. Delivering over 9cfm @ 90psi, the 4090 incorporates the popular GX160 Honda engine with automatic idle down to increase fuel efficiency.

The RolAir 4090HK17 air compressor features a 9 gallon tank capacity mounted in a wheelbarrow style for ultimate portability. The engine is a 5.5HP Honda 4 Cycle, with complete die cast aluminum alloy with a cast iron sleeve, overhead valves, and a low-oil shutdown. The pump is a single stage splash lubricated Chinook compressor pump with cast iron valve plates and is designed to run up to 135psi during normal operation. A cold start valve is pre-installed so the compressor can run unloaded during initial startup in the colder months.

Standard equipment includes an automatic pilot valve, automatic idle control for economy and long service life, intake filter w/ silencer & replaceable element, easy belt tightening device, air-cooled aftercooler, a totally enclosed steel belt guard and a safety relief valve

Looking for a compressor that displaces more air at a marginal cost difference? Consider the RolAir 6590HK18-A

Rol-Air 4090HK17-A Features

  • Single Stage Pump
  • Cast Iron Cylinder with Rod Inserts
  • Oil Level Sight Gauge
  • Flexible Discharge Line
  • Regulator and Gauge pre-installed on the air outlet
  • Honda Engine with Low Oil Safety
  • Fully Pneumatic Wheel (no-flat)
  • Low Profile 9 Gallon Tank Assembly

Products specifications
Drive Style Belt Drive
Horse Power 5.5
Max Pressure (PSI) 135
CFM @ 90 PSI 9.3
Configuration Wheelbarrow
Tank Size 9 Gallons
Dimensions 46-L x 19-W x 28-H
Shipping Weight 180
