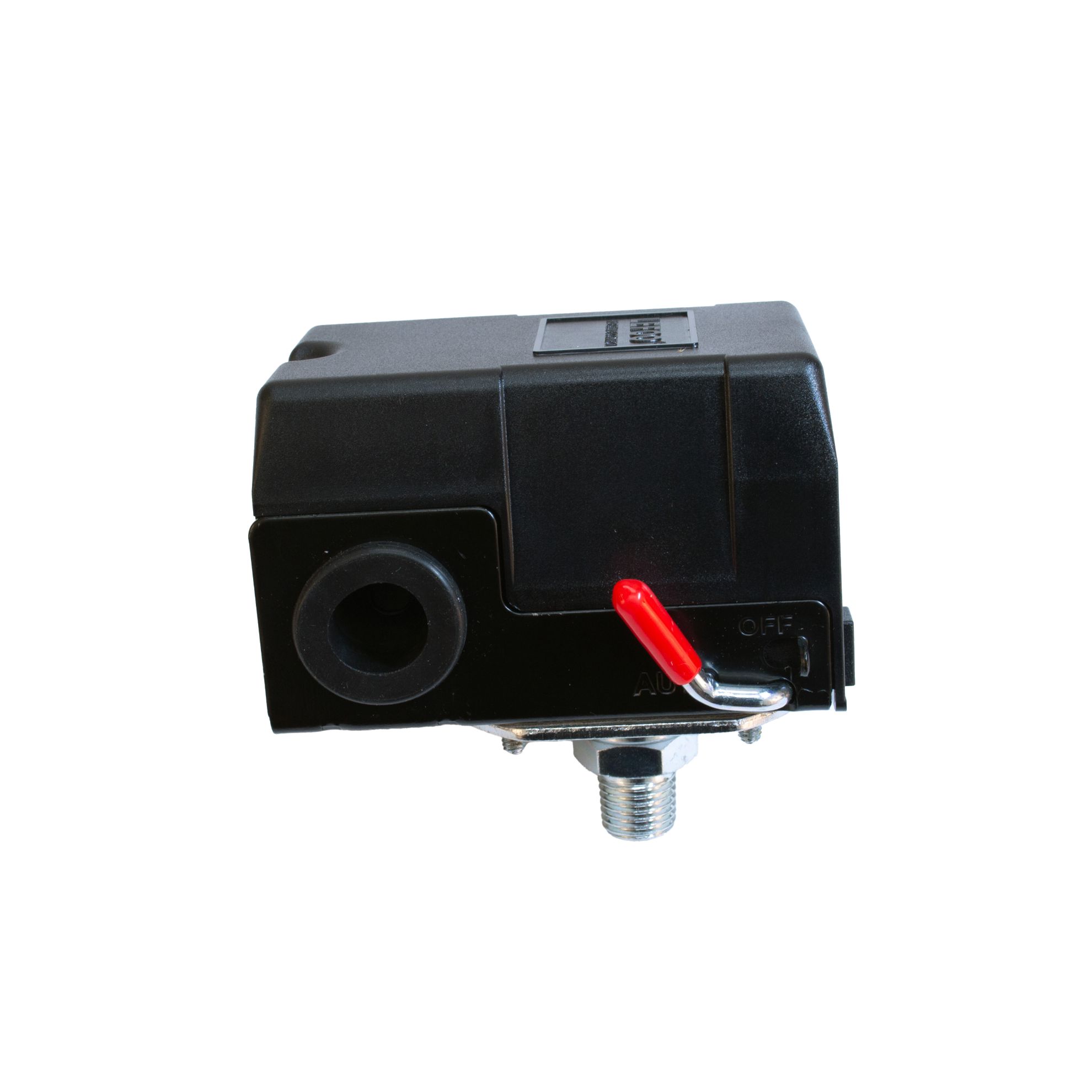

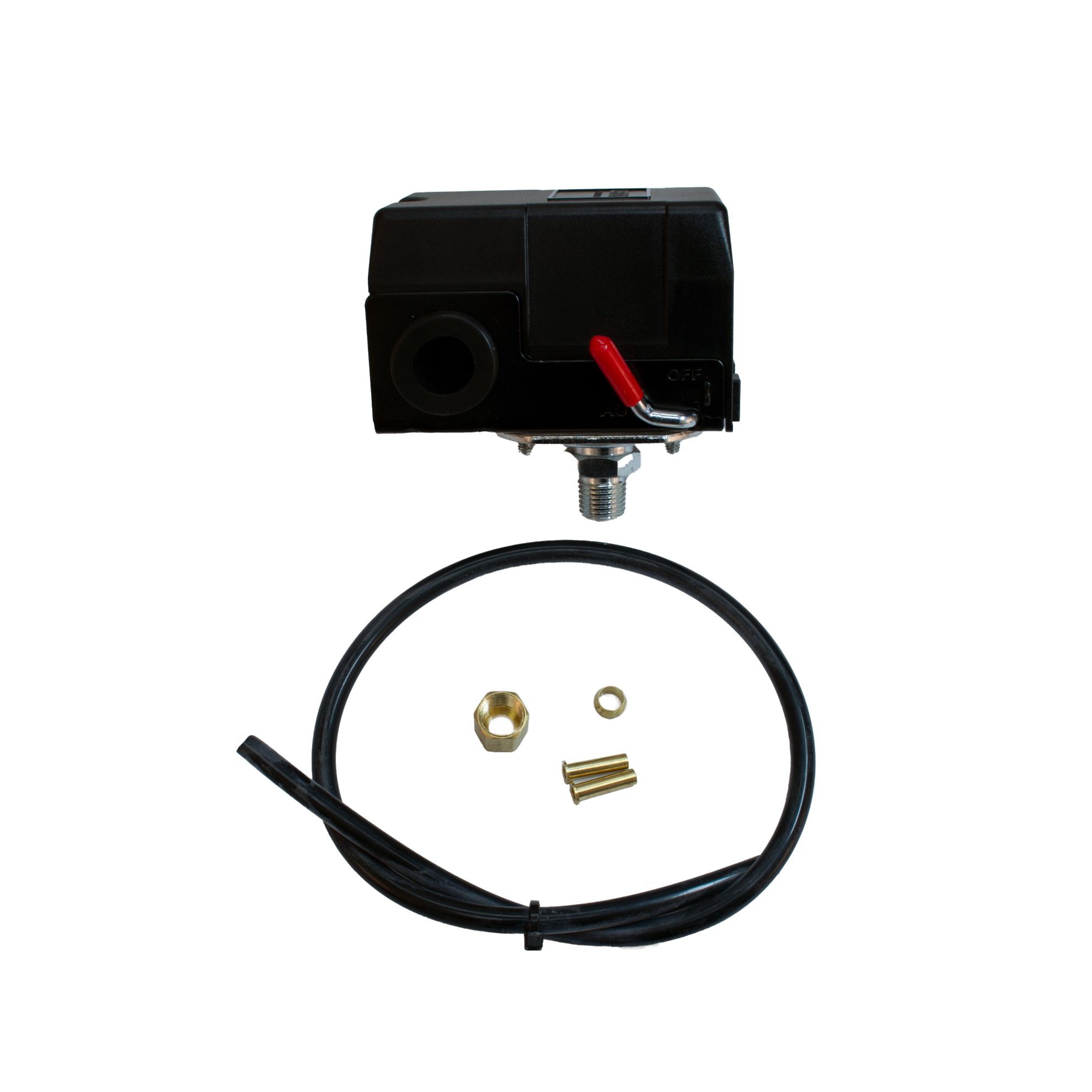

Rol-Air PSKIT2020ML Compressor Pressure Switch Kit

RolAir PSKIT2020ML OEM Lefoo Air Compressor Pressure Switch, 105-135psi

The pressure switch is used to manually turn the compressor on/off and will also start the compressor when the pressure drops and stops the compressor when the pressure reaches the upper setpoint. This switch was used on the majority of RolAir’s electric wheelbarrow compressor models.

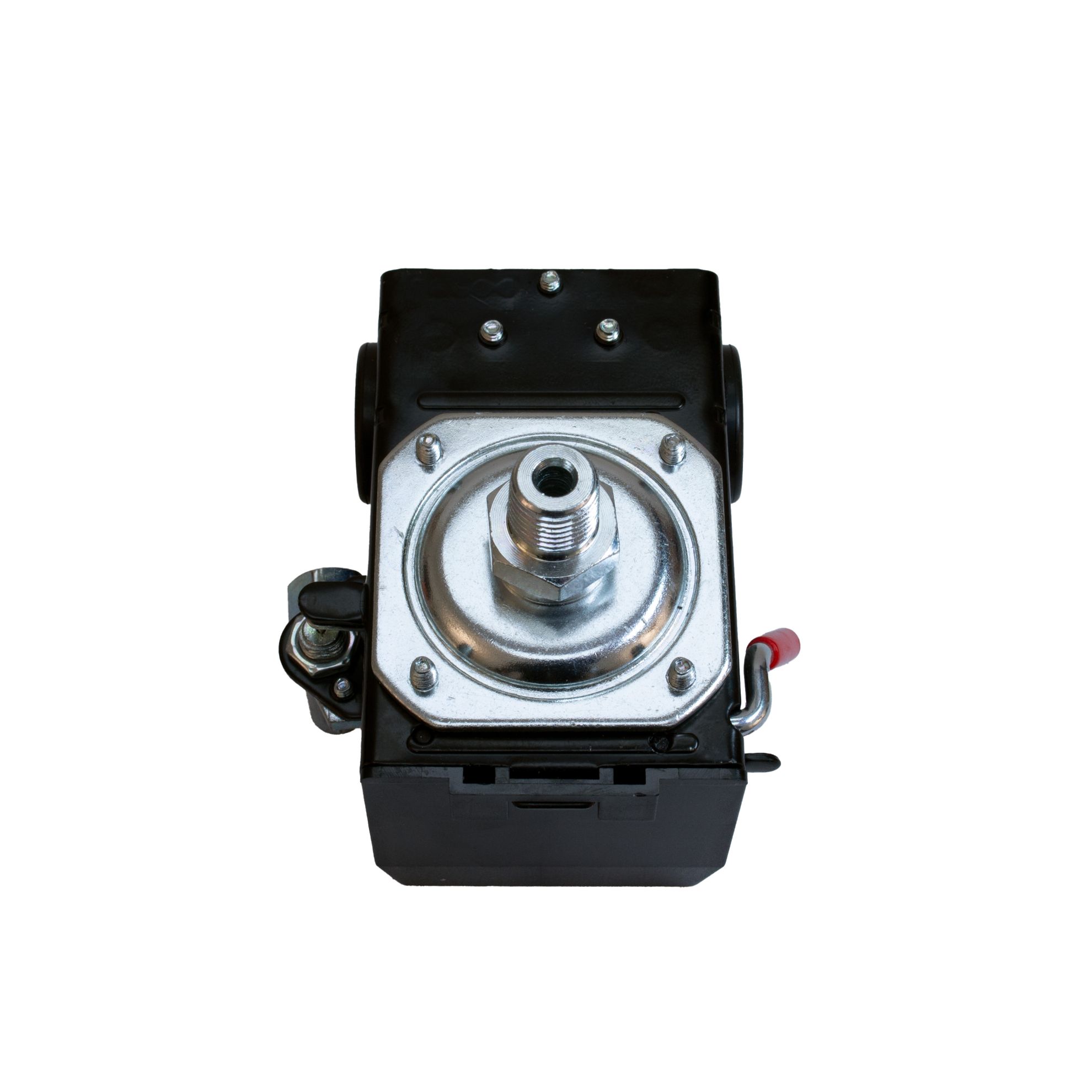

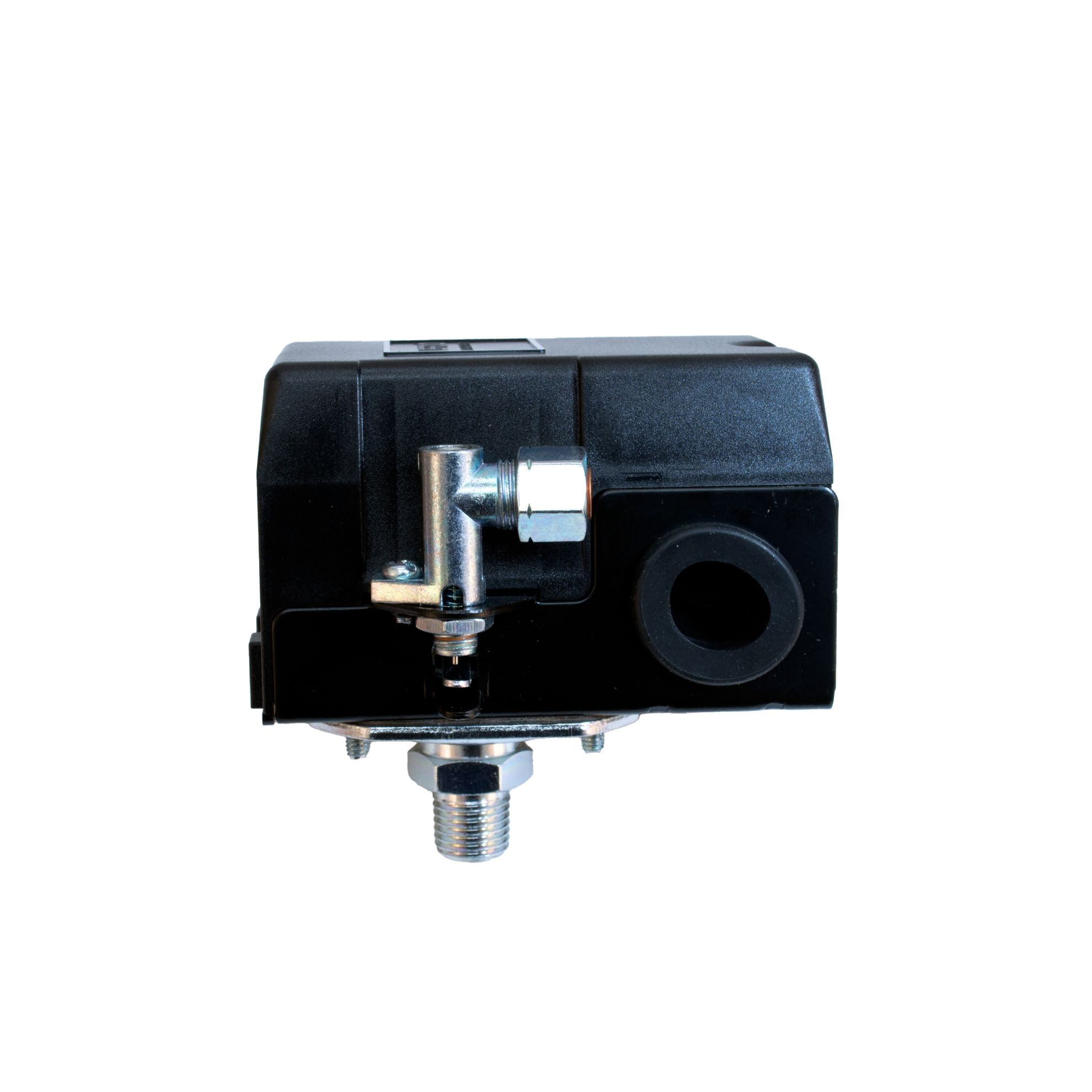

There is a single male threaded port on the bottom of the switch that would thread directly into the tank or into a tank manifold. There is also an unloader port which will connect the copper or plastic unloader line from the tank check valve to the switch. An on/off lever is also included with this pressure switch.

This will turn the compressor on when the PSI gets below 105 and will turn the compressor off when it reaches the 135psi upper setpoint.

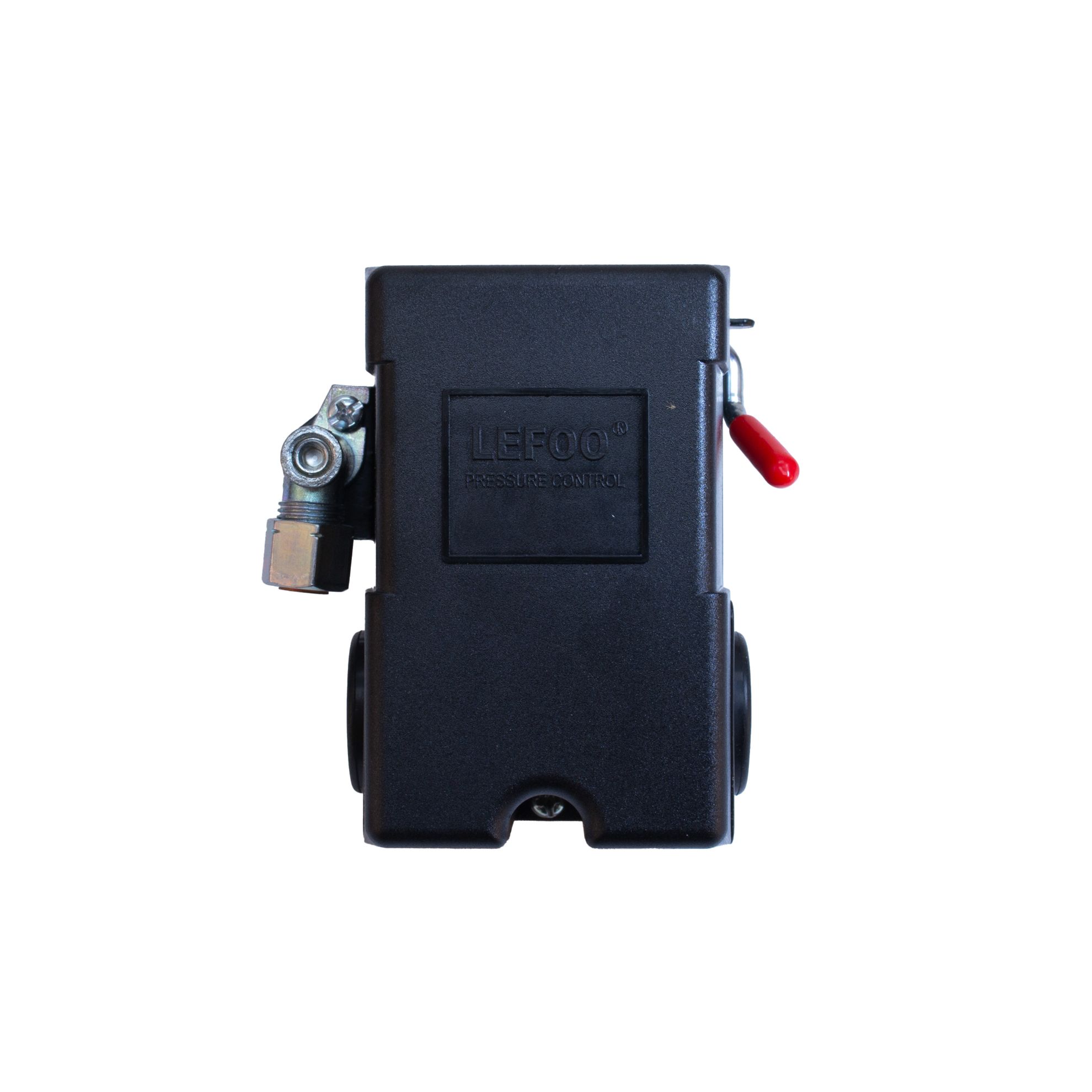

This is an OEM switch that was manufactured by Lefoo.

Key Features:

• OEM Quality: Manufactured by Lefoo, ensuring compatibility and reliability.
• Pressure Settings: Activates compressor at 105 PSI and shuts off at 135 PSI.
• Threaded Connection: 1/4" NPT male fitting for direct installation into the tank or manifold.
• Unloader Port: Includes a 1/4" compression fitting to connect the unloader line from the tank check valve.
• Manual On/Off Lever: Allows for easy manual control of the compressor.
• Voltage Compatibility: Suitable for both 120V and 240V applications

PSKIT2020ML Installation Tips:

• Safety First: Always disconnect power and release all air pressure from the compressor before replacing the pressure switch.
• Thread Sealant: Use appropriate thread sealant on the 1/4" NPT male fitting to ensure a secure, leak-free connection.
• Unloader Line: Ensure the unloader line is properly connected to the 1/4" compression fitting to allow for proper pressure relief during compressor shutdown.
