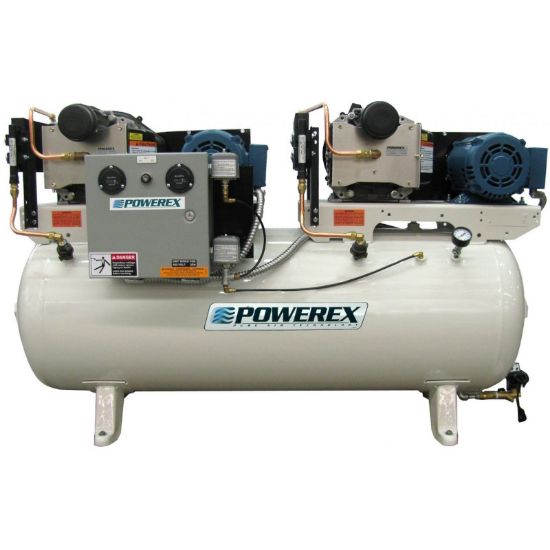

Powerex STD10B6 Duplex 20hp (2x10hp) Oil Free Scroll Air Compressor, 62.4cfm@100psi 240 Gallon 3 Phase

Part #: STD10B6
Call to order 800-542-8300

Powerex STD10B6 Duplex 20hp (2x10hp) Oil Free Scroll Air Compressor, 62.4cfm@100psi 240 Gallon 3 Phase

The Powerex STD10B6 duplex 20hp oil free scroll air compressor utilizes (2) 10hp compressor pumps to displace 62.4cfm @ 100psi. This compressor runs on three phase power and is mounted on a 240 gallon horizontal air receiver. The Powerex Scroll tank mounted system is designed to provide clean, dry air for industrial applications where the quality of the compressed air is critical. The STD Series Powerex Duplex Air Compressors have been designed and tested to meet the most demanding specifications for reliability in the pneumatic oil-free industry.

The Powerex oilless rotary scroll air compressor has advanced scroll compressor technology through the development of a completely oilless unit. The Powerex Scroll Compressor offers a dynamically balanced air end which insures vibration-free operation. The rotary design permits a continuous 100% duty cycle. No oil separation, oil filtration, or inlet valves are required on the Powerex scroll compressor.

STD10B6 would be pre-wired in 208/230/460v 3 phase power prior to shipping depending on your buildings power. The 240 gallon receiver tank is ASME rated.

This compressor package is able to be configured in an array of different variants, including the potential to add a refrigerated dryer, desiccant dryer, aftercooler and more. Please contact our sales department to help tailor a compressor specific to your needs.

Features STD10B6

  • Oil-less scroll pump technology: 100% oil free compressed air
  • Less noise and vibration than comparable reciprocating piston compressors
  • Easy installation that maximizes floor space
  • Manufactured in ISO 9001:2015 certified facilities
  • SLAE10 bare scroll compressor airend
  • 240 gallon horizontal ASME air receiver
  • Pre-installed and wired duplex compressor alternator
California Residents: Prop 65 WARNINGS
Products specifications
AvailabilityShips From Manufacturer
Voltage Frequency60Hz
Tank Size240 Gallons
Weight1700 lbs
Sound Level79dBA
Drive StyleBelt Drive
Connection Size1" NPT
Voltage208/230/460 / Tri Voltage
CFM @ 100 PSI62.4
Max Pressure (PSI)116
Horse Power20
Dimensions50" x 94" x 56"H
