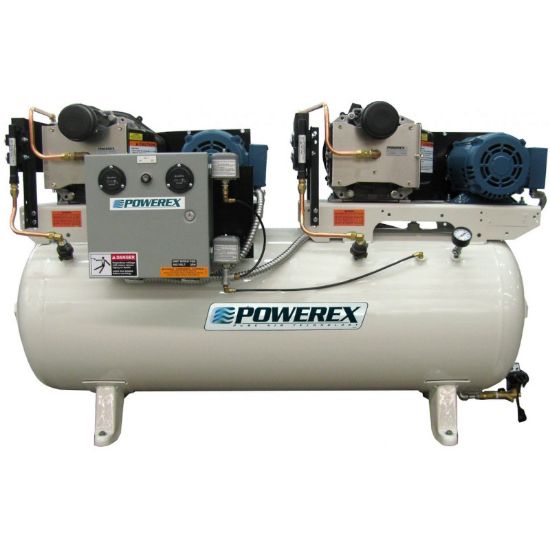

Powerex STD0754 Duplex 15hp (2x7.5hp) Oil Free Scroll Air Compressor, 46.2cfm@100psi 120 Gallon 3 Phase

Powerex STD0754 Duplex 15hp (2x7.5hp) Oil Free Scroll Air Compressor, 46.2cfm@100psi 120 Gallon 3 Phase

The Powerex STD0754 duplex 15hp oil free scroll air compressor utilizes (2) 7.5hp compressor pumps to displace 46.2cfm @ 100psi. This compressor runs on three phase power and is mounted on a 120 gallon horizontal air receiver. The Powerex Scroll tank mounted system is designed to provide clean, dry air for industrial applications where the quality of the compressed air is critical. The STD Series Powerex Duplex Air Compressors have been designed and tested to meet the most demanding specifications for reliability in the pneumatic oil-free industry.

The Powerex oilless rotary scroll air compressor has advanced scroll compressor technology through the development of a completely oilless unit. The Powerex Scroll Compressor offers a dynamically balanced air end which insures vibration-free operation. The rotary design permits a continuous 100% duty cycle. No oil separation, oil filtration, or inlet valves are required on the Powerex scroll compressor.

STD0754 would be pre-wired in 208/230/460v 3 phase power prior to shipping depending on your buildings power. The 120 gallon receiver tank is ASME rated.

This compressor package is able to be configured in an array of different variants, including the potential to add a refrigerated dryer, desiccant dryer, aftercooler and more. Please contact our sales department to help tailor a compressor specific to your needs.

Features STD0754

• Oil-less scroll pump technology: 100% oil free compressed air
• Less noise and vibration than comparable reciprocating piston compressors
• Easy installation that maximizes floor space
• Manufactured in ISO 9001:2015 certified facilities
• SLAE075 bare scroll compressor airend
• 120 gallon horizontal ASME air receiver
• Pre-installed and wired duplex compressor alternator
