Powerex SEQ2007 20HP Enclosed Quiet Oil Free Scroll Air Compressor, 60.8cfm, Three Phase

$50,050.00
$28,395.00
SKU: SEQ2007
Part #: SEQ2007
Call to order 800-542-8300

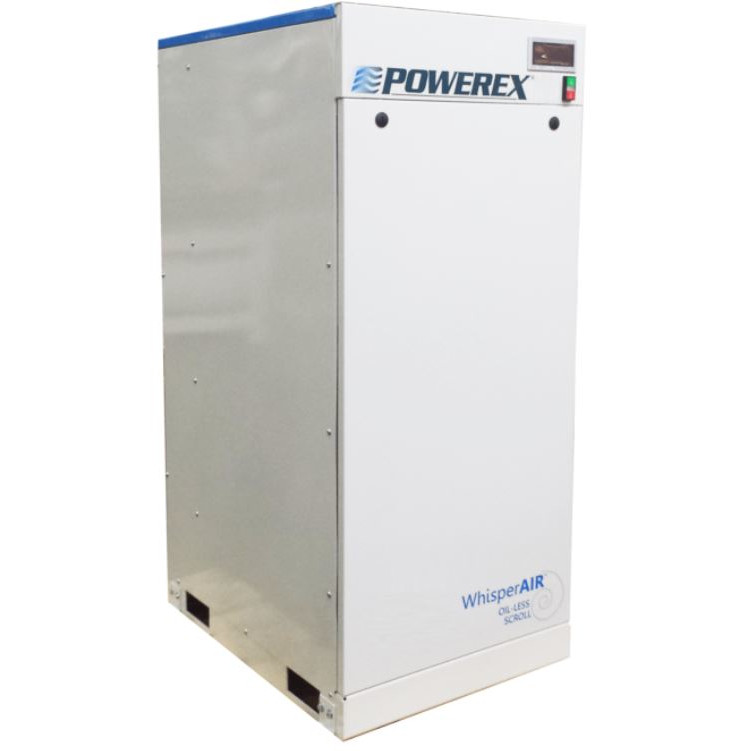

Powerex SEQ2007 20HP Enclosed Quiet Oil Free Scroll Air Compressor, 60.8cfm, Three Phase

The Powerex SEQ2007 is a 20hp oil free scroll air compressor that displaces 61cfm @ 116psi. The SEQ2007 will run on three phase power and is one of the quietest compressors on the market at only 58dBA.

The SEQ2007 utilizes four 5hp motors and scroll pumps for a total of 20hp. This system uses the Powerex Variable Pump Drive system, where each compressor pump is automatically staged on/off individually based on actual system demand, maximizing energy efficiency at all usage levels. Lead compressor status will alternate every time a pump is called for – or every 10 minutes, whichever comes first – which maintains equal run hours and extends maintenance intervals. Redundancy is built into the system with the multiple pump design, eliminating the need to purchase an additional compressor.

The controls operate the duplex air compressor modules as needed in response to a pressure signal from a transducer located in the system manifold. An illuminated on/off push button controls power to the motor starters. When the button is in the off position, the system is merely in stand-by mode, not powered off. An HMI touch screen interface displays system status
and alarm conditions. Pressure settings are user adjustable within factory predetermined setting limits.

The baseplate design is meant to be paired with an existing air receiver. Each compressor motor is a TEFC, NEMA construction motors. These are also EISA compliant and premium efficient. The compressor would be pre-wired in 208/230/460v 3 phase power prior to shipping depending on your buildings power.

Powerex’s trademarked oil-free enclosure systems offer the lowest noise levels in the industry. Each system is packaged in a rigid steel frame with powder coated panels and lined with sound-deadening insulation. The low noise levels are unmatched in the industry and allow installation at the point of use, while the small footprint simultaneously maximizes floor space.

Two pressure setpoints are available on the SEQ2007 20hp compressor depending on your sites psi requirements. 116psi is the most common but this is also available in a 145psi configuration at a slightly higher cost.

This compressor package is able to be configured in an array of different variants. Please contact our sales department to help tailor a compressor specific to your needs.

Features - SEQ2007

  • Scroll pump technology – 100% oil-less air compressor
  • Air-cooled aftercooler for each compressor
  • Easy installation that maximizes floor space
  • UL listed magnetic starter / UL508A listed control panel
  • Manufactured in ISO 9001:2015 certified facilities
  • SLAE05E bare scroll compressor airends
  • Powerex Variable Pump Drive system
California Residents: Prop 65 WARNINGS
Products specifications
AvailabilityShips From Manufacturer
Voltage Frequency60Hz
Weight1125 lbs
Sound Level58dBA
PhaseThree
Voltage208/230/460 / Tri Voltage
Duty Cycle100% Continuous Duty
ConfigurationBasemount (tankless)
Drive StyleBelt Drive
CFM Range56-99
Max Pressure (PSI)145, 116
Connection Size1" NPT
CFM @ 100 PSI61
CFM @ 145 PSI50
Horse Power20
Dimensions26" x 38" x 61"H
