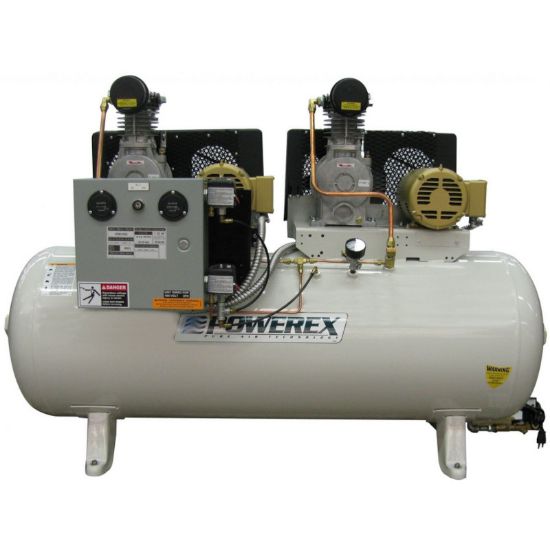

Powerex OTD0504 Duplex 10hp (2x5hp) Oil Free Piston Air Compressor, 36.4cfm, 120 Gallon, 3 Phase

$27,445.00
$15,559.00
SKU: OTD0504
Part #: OTD0504
Call to order 800-542-8300

Powerex OTD0504 Duplex 10hp (2x5hp) Oil Free Piston Air Compressor, 36.4cfm, 120 Gallon, 3 Phase

The Powerex OTD0504 duplex 10hp oil free air compressor utilizes (2) 5hp compressor pumps to displace 36.4cfm. This compressor runs on three phase power and is mounted on a 120 gallon horizontal air receiver. The Powerex duplex reciprocating tank mounted compressors are perfect for any application where clean dry air is required with integrated backup. The OTD Series Powerex Duplex Air Compressors have been designed and tested to meet the most demanding specifications for reliability in the pneumatic oil-free industry.

The OTD0504 is an extremely reliable compressor that features high quality construction and components. An unloading feature is included to provide loadless starting. Powerex oilless pumps use composite piston technology, low compressor speeds and PTFE compression ring(s) at low maintenance costs. The self-lubricating composite piston technology – standard on all Powerex reciprocating compressors – increases ring life and reduces temperature providing reliability for years to come. The dual cooling pistons reduce operating temperatures and the corrosion resistant components and coatings extend ring and valve life. The OTD0504 10HP utilizes two OPT050 oil free compressor pumps.

This duplex air compressor package consists of two motor/compressor assemblies mounted on a single 120 gallon receiver tank. These are ideal reciprocating air compressors for instrumentation systems requiring an alternate compressor for standby or overload capacity. This style air compressor is desirable for a variety of reasons. When a duplex air compressor is alternated, the temperature of both compressors is kept above the ambient dew point to minimize moisture deterioration and corrosion. This still keeps temperatures low enough to prevent overheating on the motor and pump for increased life.

OTD0504 would be pre-wired in 208/230/460v 3 phase power prior to shipping depending on your buildings power. The 120 gallon receiver tank is ASME rated.

This compressor package is able to be configured in an array of different variants, including the potential to add a refrigerated dryer, desiccant dryer, aftercooler and more. Please contact our sales department to help tailor a compressor specific to your needs.

Features OTD0504

  • Oil-less reciprocating piston pump technology: 100% oil free compressed air
  • High efficiency ODP motors
  • Manufactured in ISO 9001:2015 certified facilities
  • Easy installation that maximizes floor space
  • Three year warranty on compressor pump
  • UL listed controls
California Residents: Prop 65 WARNINGS
Products specifications
AvailabilityShips From Manufacturer
Voltage Frequency60Hz
Tank Size120 Gallons
Weight930
Sound Level79dBA
PhaseThree
ConfigurationHorizontal
Drive StyleBelt Drive
Connection Size3/4" NPT
Voltage208/230/460 / Tri Voltage
CFM @ 100 PSI36.4
Horse Power15
Max Pressure (PSI)145
Dimensions78" x 30" x 55"H
