Pack of 20 Pipe Clips for AIRnet 40mm 1.5" Blue Aluminum Air Compressor Pipe

$75.21
SKU: 2811 4122 20
Part #: 2811 4122 20
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

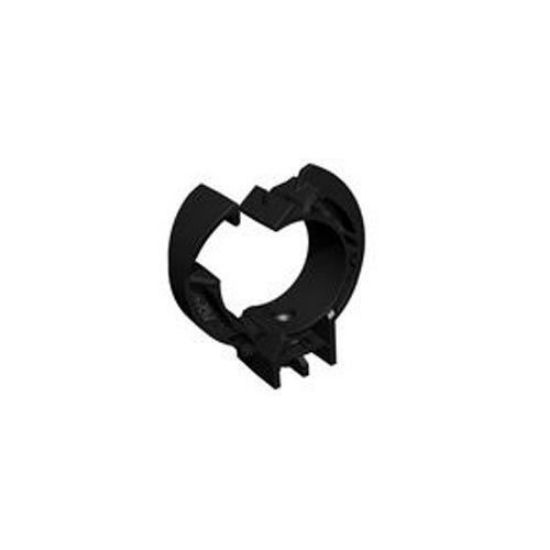

AIRnet 2811 4122 20 Pack of 20 Pipe Clips for AIRnet 40mm 1.5" Blue Aluminum Air Compressor Pipe

2811 4122 20 pipe clips are specifically designed to be used with the AIRnet 40mm / 1.5” blue aluminum air pipe. The clips come in a pack of 20. These clips are designed to secure the line piping to the wall. One end of the clip snaps around the pipe and the bottom portion has a ¼” threaded port to thread a screw thorough.

These clips can be mounted to any surface and can hang the pipe horizontally and vertically along a wall or ceiling. They are also commonly secured to Unistrut.

The clips not only hold the pipe to the wall but they also push the piping out by approximately ½” to get around conduit or other wall imperfections.

The factory recommends installing a pipe clip every 10' of straight pipe. A clip should also be included within 6” of each fitting. As a general rule of thumb, we recommend budgeting 3 clips per stick of piping.

The part number may be displayed as 2811412220 or 2811-4122-20.



This air pipe clip is commonly sold by Atlas Copco Compressors, Chicago Pneumatic, and Quincy Compressors.
