OEM Thermostatic Valve Kit 2200599825 for Chicago Pneumatic and Quincy Compressors

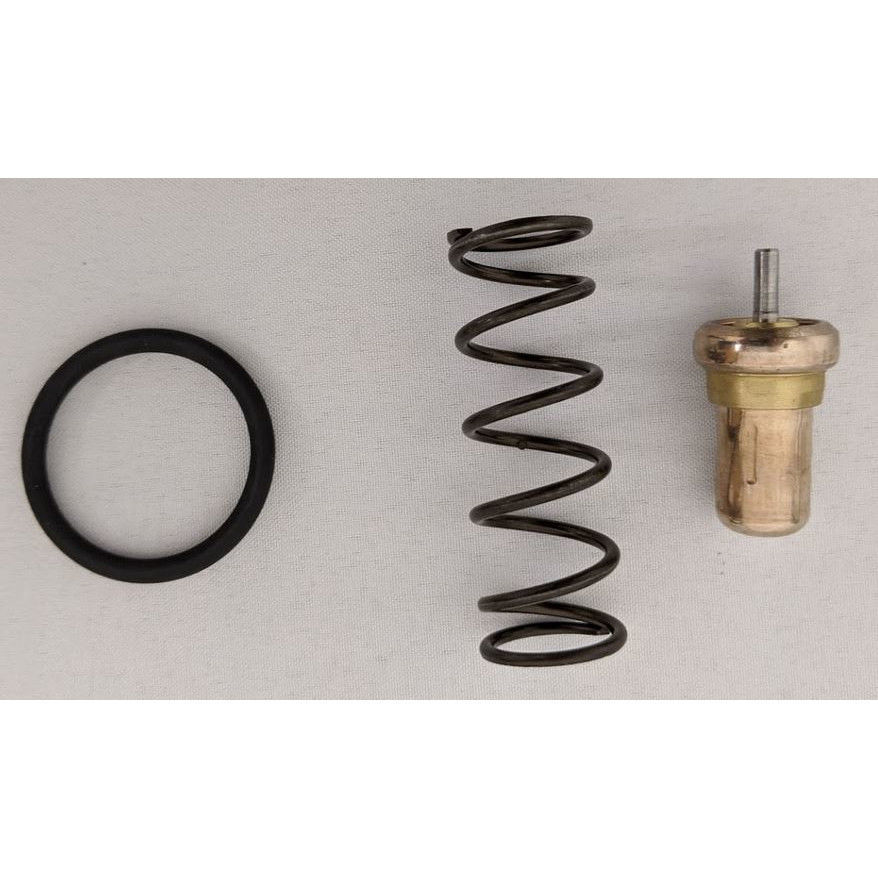

Chicago Pneumatic 2200 5998 25 OEM Thermostatic Valve Kit / Thermal Kit

The 2200 5998 25 thermostatic valve kit is used on a wide variety of Chicago Pneumatic, Quincy, and Atlas Copco rotary screw air compressors. It is recommended to replace the thermal valve every two years or 8,000 hours of operation to prevent your compressor from overheating.

A compressor thermal valve opens when the oil gets hot to let coolant/oil flow through the cooler before the oil is sent back into the sump tank. This prevents the compressor from overheating. If your compressor is consistently shutting down on high temp and your oil is full, more than likely this valve needs to be replaced.

This 2200599825 thermal valve part number is also commonly shown as 2200599825 and 2200-5998-25. The description may also read Thermal Valve Kit. This is an OEM part that was also used on several Atlas Copco and Quincy air compressors.

The 2200599825 thermal kit is used on the following Chicago Pneumatic rotary screw air compressors manufactured in 2011 or later

• QRS20
• QRS25
• QRS30
• CPBG35 (before serial number ITJ076934)
• CPBG40 (before serial number ITJ076934)
• CPBG50 (before serial number ITJ076934)
• CPVS20
• CPVS25
• CPVS30
