Milton Industries S-99787, 1/4" FNPT T-Style Safety Coupler

$19.95
$17.95
In Stock
SKU: S-99787
Part #: S-99787
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

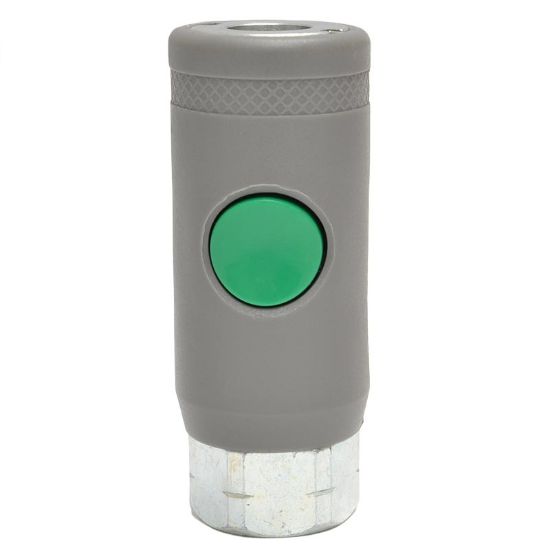

Milton Industries S-99787 Automotive Style Push Button Safety Air Compressor Coupler, 1/4" NPT Female

Milton S-99787 Automotive T-Style® safety couplers are easy to use. Simply push once to stop airflow, twice to release plug. Safety couplers prevent possible injury or damage due to accidental disconnects. OSHA required in certain areas and applications. T-Style® / Tru-flate couplers have a 1/4" basic flow size and offer air flow of up to 36 SCFM. Maximum pressure of 300 PSI. Green button color for easy identification.

The S-99787 uses 1/4" NPT Female threads.

This push button coupler fits Automotive Style plugs. More information.

Features and Benefits

  • Push Button Disconnect - No coupler sleeves to pull back on or air blowback. Push the button to release the plug.
  • Safety Release - Press the button once to release the air, then press again to release the nipple plug for disconnect. Does not fight back pressure or cause the hose to whip.
  • One handed operation - with the push button coupler design, only one hand is needed to release the plug since you do not need to pull back on a coupler collar.
  • Plug inserts with ease - no need to pull back on a coupler collar to insert the plug.
  • For use with Automotive style couplers and plugs.

Specifications

CFM Flow 36
Coupler Type Automotive Style / Milton T Style
Key feature Green button color for easy identification
Basic Flow Size 1/4" Basic Flow Size
NPT thread size 1/4" Female NPT
Height 1.125
Width 1.125
Length 2.875
