Ingersoll Rand 7100E15P 15hp Air Compressor, 200v 3 Phase, Premium Package, 50cfm @ 175psi, 120 Gallon Tank

SKU: 7100E15P 200V
Part #: 7100E15P 200v
Call to order 866-203-2944

Ingersoll Rand 7100E15-P 15HP Two Stage Industrial Air Compressor, 50cfm @ 178psi, 120 Gallon Receiver Tank, Premium Package, 200v/3/60hz

Ingersoll-Rand's 7100E15P 200v air compressor is one of the most popular 15hp reciprocating air compressors on the market. It's two-stage v shape design pump is built to last and an ideal choice for heavy duty body shops, CNC machine shops, and more. The 7100E15 value plus package is priced right and designed for the most demanding jobs where a dependable air supply is required.

The 7100 compressor pump utilizes 100% cast iron cylinders in a v-type configuration. The cylinders are honed for low oil carryover and radial fins on the culinders help remove heat and provide increased cooling. Unlike traditional inline pumps, the 7100 v shape design has a 3 piece intercooler made of finned copper to provide maximum cooling area. It is located directly in the flywheel air blast to remove the heat of compression between stages keeping running temperatures and power needs to a minimum, ensuring high air delivery for horsepower expended. v-shape designed pump

A E series magnetic motor starter with overload protection is included and pre-wired to the pressure switch and motor. Starters provide full voltage control of electric motors. They include thermal relays which protect the motor windings from harmful currents and resultant temperature rise caused by overloaded motor, low line voltage or stalled rotor. An on/off switch is also included.

The IR 7100E15P 200v is mounted on a 120 gallon horizontal air receiver that is ASME coded and includes a pressure gauge, ball valve and safety relief valve.

This 7100E15V Ingersoll Rand reciprocating air compressor is their "Premium Package". The premium package air compressor includes:

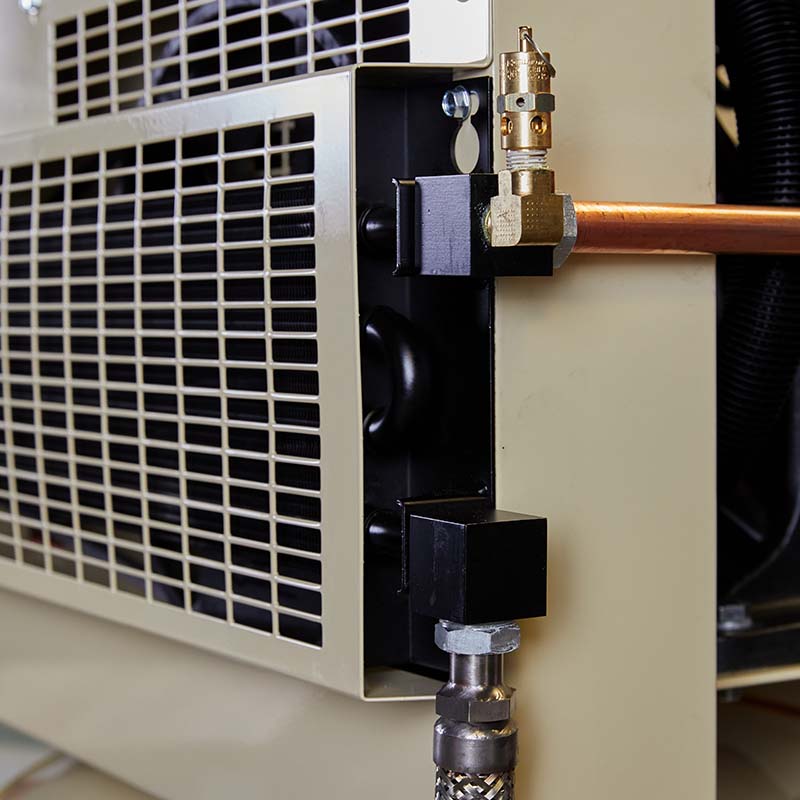

  • An air cooled aftercooler pre-installed on the back of the beltguard. An aftercooler lowers package discharge air to within 25°F of ambient temperature. This cools the air prior to entering the receiver tank, which reduces the moisture content by about 70%.
  • An automatic timed electric tank drain is installed on the bottom of the receiver tank. An auto drain discharges water from the receiver tank automatically, no longer requiring you to stick your hand under the tank daily to remove moisture.
  • Low oil level shutdown switch which will automatically shut off the pump if oil is low. This prevents the pump from seizing up during operation.
  • Dual Control/Constant Run - the operator can change the setting on the air compressor to either run in on/off model or constant run. In constant run mode, head unloaders hold the valves shut so the compressor will continually run but will not build air when the upper pressure setpoint is met. This prevents the motor from excessively starting and stopping during operation and lengthens the motor life.

Purchasing the 32305898 startup kit at the same time as the compressor will give you an additional year warranty on the pump. Each start-up kits contains all the parts needed to correctly start up and maintain the compressor for the first year of operation. 32305898 includes All Season Select lubricant, filter elements, MSDS sheet for lubricant, and one proof of warranty decal. The All Season lubricant is specifically formulated to protect and preserve the air compressor pump. All Season Select Lubricant can operate up to 2000 hours (under normal operating conditions) between oil changes.

Ingersoll Rand 7100E15P 200v Features

  • 100% solid cast iron construction
  • Air cooled aftercooler for moisture removal
  • 120 gallon horizontal ASME receiver tank
  • Automatic timed electric tank drain
  • Totally enclosed beltguard
  • 200/3/60hz power.
  • Air cooled aftercooler for moisture removal
  • Low oil level shutdown switch
  • Can operate on/off or in constant run mode
California Residents: Prop 65 WARNINGS
Products specifications
Drive StyleBelt Drive
Connection Size3/4" NPT
Dimensions71" x 32" x 57"H
Horse Power15
Max Pressure (PSI)175
CFM @ 175 PSI50
Tank Size120 Gallons
Weight1035 lb
