Ingersoll Rand 2545K10V 10hp Industrial Air Compressor, Value Package, 35cfm @ 175psi, 120 Gallon VerticalTank, 460v 3 Phase

$6,175.00
$4,389.99
SKU: 2545K10V 460v
Part #: 2545K10V 460v
Call to order 866-203-2944

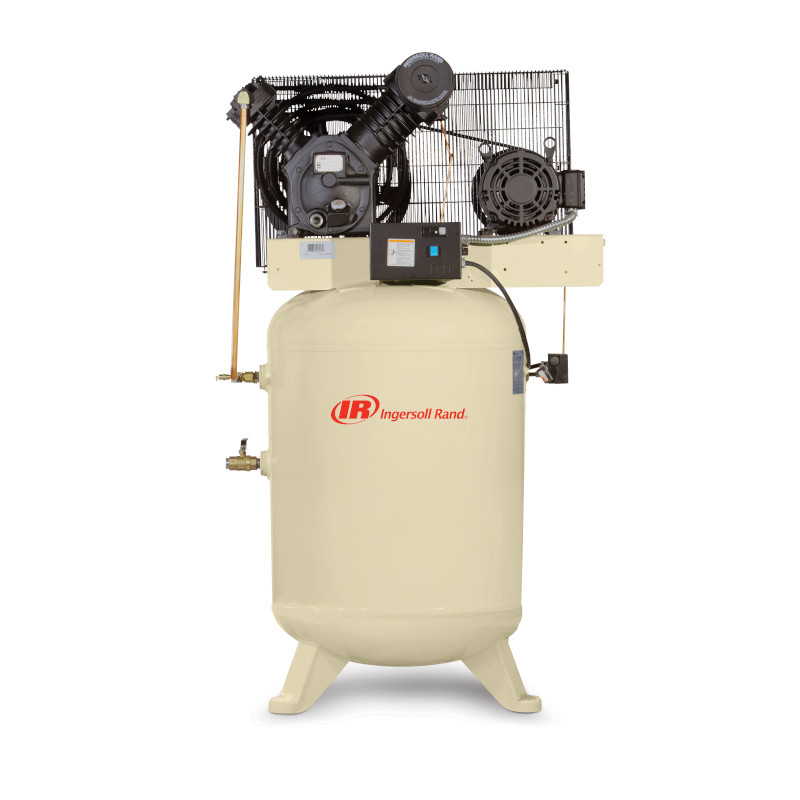

Ingersoll Rand 2545K10V 10HP Two Stage Industrial Air Compressor, 120 Gallon Vertical Receiver Tank, Value Plus Package, 460v/3/60hz

The 2545 is one of Ingersoll Rand's most popular reciprocating air compressors. The 2545K10V utilizes a 120 gallon vertical receiver with a 10hp main drive motor pre-wired to run on 460v three phase power. It's designed for heavy shop or industrial use. Ingersoll-Rand Two-Stage electric air compressors provide the quality and performance that are ideal for most applications and users, including: automotive service and body shops; fleet maintenance; machine shops; production and manufacturing lines; construction; wood working shops; dry cleaners; car washes; maintenance/repair shops and farms.

The 2545 pump utilizes 100% cast iron cylinders in a v-type configuration. The cylinders are honed for low oil carryover and radial fins on the culinders help remove heat and provide increased cooling. Unlike traditional inline pumps, the 2545 V shape design has a 3piece intercooler made of finned copper to provide maximum cooling area. It is located directly in the flywheel air blast to remove the heat of compression between stages keeping running temperatures and power needs to a minimum, ensuring high air delivery for horsepower expended.

A E-series magnetic motor starter is included and pre-wired to the pressure switch and motor. Starters provide full voltage control of electric motors. They include thermal relays which protect the motor windings from harmful currents and resultant temperature rise caused by overloaded motor, low line voltage or stalled rotor. An on/off switch is also included.

The 2545K10V 460v is mounted on a 120 vertical air receiver tank that is ASME coded and includes a pressure gauge, ball valve and safety relief valve.

This compressor is also available in their 2545K10VP 460v value plus compressor package which includes an air cooled aftercooler and electronic tank drain.

Ingersoll Rand 2545K10V 460/3/60 Features

  • Two-Stage electric air compressor
  • Durable cast-iron pump
  • Easy to repair removable cylinders with 360° radial fins
  • Finned copper intercooler lowers operating temperature
  • One-piece connecting rod with fewer wearing parts
  • Precision-balanced overhung crankshaft runs smoothly and quietly
  • Reliable stainless steel reed valves
  • Three Phase, 460/3/60hz power
  • Simple and reliable splash lubrication eliminates need for oil pump, inexpensive and easy to maintain
Products specifications
Drive Style Belt Drive
Horse Power 10
Max Pressure (PSI) 175
CFM @ 175 PSI 35
Voltage 460/3/60hz
Phase Three
Configuration Vertical
Tank Size 120 Gallons
Weight 850 lb
