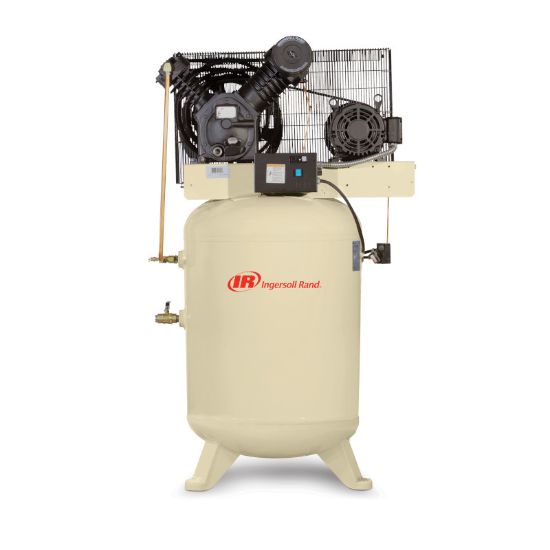

Ingersoll Rand 2545K10V 10hp Air Compressor, 35cfm @ 175psi, 120 Gallon Vertical Tank, 230v 3 Phase

SKU: 2545K10V 230v
Part #: 2545K10V 230v
GTIN: 678384657709
Call to order 866-203-2944

Ingersoll Rand 2545K10V 10hp Air Compressor, 35cfm @ 175psi, 120 Gallon Vertical Tank, 230V 3 Phase

The 2545 is one of Ingersoll Rand's most popular reciprocating air compressors. The 2545K10V utilizes a 120 gallon vertical receiver with a 10hp main drive motor pre-wired to run on 460v three phase power. It's designed for heavy shop or industrial use. Ingersoll-Rand Two-Stage electric air compressors provide the quality and performance that are ideal for most applications and users, including: automotive service and body shops; fleet maintenance; machine shops; production and manufacturing lines; construction; wood working shops; dry cleaners; car washes; maintenance/repair shops and farms.

The 2545 pump utilizes 100% cast iron cylinders in a v-type configuration. The cylinders are honed for low oil carryover and radial fins on the culinders help remove heat and provide increased cooling. Unlike traditional inline pumps, the 2545 V shape design has a 3piece intercooler made of finned copper to provide maximum cooling area. It is located directly in the flywheel air blast to remove the heat of compression between stages keeping running temperatures and power needs to a minimum, ensuring high air delivery for horsepower expended.

A E-series magnetic motor starter is included and pre-wired to the pressure switch and motor. Starters provide full voltage control of electric motors. They include thermal relays which protect the motor windings from harmful currents and resultant temperature rise caused by overloaded motor, low line voltage or stalled rotor. An on/off switch is also included.

The 2545K10V 230v is mounted on a 120 vertical air receiver tank that is ASME coded and includes a pressure gauge, ball valve and safety relief valve. The internal IR CCN# is 45465770.

Ingersoll Rand 2545K10V 230v/3/60 Features

  • Two-Stage electric air compressor
  • Durable cast-iron pump
  • Easy to repair removable cylinders with 360° radial fins
  • Finned copper intercooler lowers operating temperature
  • One-piece connecting rod with fewer wearing parts
  • Precision-balanced overhung crankshaft runs smoothly and quietly
  • Reliable stainless steel reed valves
  • Three Phase, 230/3/60hz power
  • Simple and reliable splash lubrication eliminates need for oil pump, inexpensive and easy to maintain
California Residents: Prop 65 WARNINGS
Products specifications
Drive StyleBelt Drive
Horse Power10
Max Pressure (PSI)175
CFM @ 175 PSI35
Tank Size120 Gallons
Weight850 lb
