Ingersoll Rand 247PD5-P 5hp Premium Pressure Lube Compressor 80 Gallon Horizontal 19.1cfm 230v 1ph

Ingersoll Rand 247PD5-P 5hp Premium Pressure Lube Compressor 80 Gallon Horizontal 19.1cfm 230v 1ph

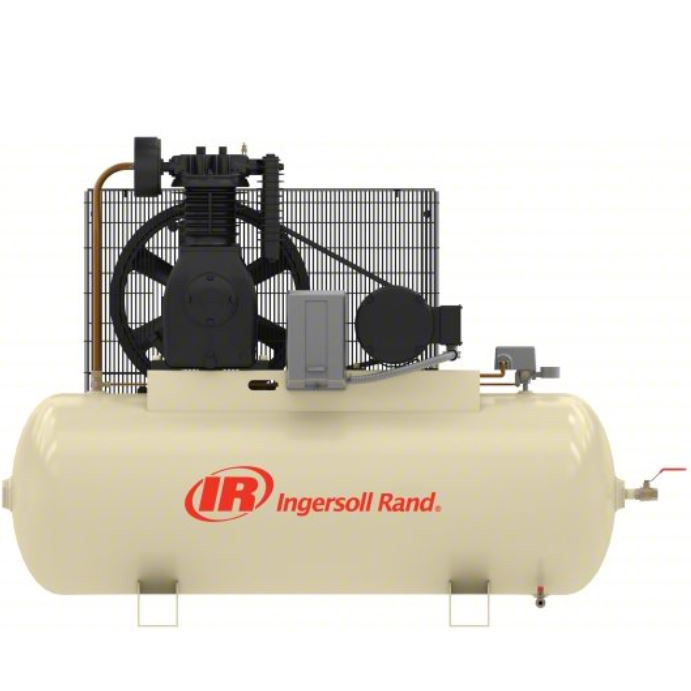

The Ingersoll Rand 247PD5-P is a premium package 5hp pressure lubricated air compressor mounted on an 80 gallon horizontal air receiver. This compressor is pre-wired to run on single phase 230v power.

The 247PD5-P industrial grade air compressor will displace 19.1cfm @ 175psi. The IR pressure lube line of air compressors are built to perform in your most demanding industrial environments. The solid cast iron construction ensures superior performance when you need it. The innovative pressure lubrication technology delivers oil to the necessary components, minimizing friction and extending compressor life. Ingersoll Rand designs each machine to meet high standards throughout each step of our development process to keep you up and running.

A pressure-lubricated air compressor utilize a pump driven by the crankshaft which pumps oil to the crankshaft and wrist pin. This helps to reduce the amount of heat that you might see from a standard splash lubricated compressor. A pressure lubricated compressor is best suited for enviroments where the compressor may be exposed to extreme operating conditions.

This Ingersoll Rand single phase 2475PN5-P premium packaged piston air compressor is one of the largest compressors that can operate reliably on single phase power. It's an ideal choice for applications that demand a reliable air supply for everyday use, but do not have access to a three phase power source.

A magnetic motor starter containing the motor contactor and overload is pre wired and isntalled between the main motor and pressure switch.  Since this is IR's premium package line, an automatic tank drain and low oil level shutdown switch is also installed. The internal Ingersoll Rand part number for this compressor is 47704975001.

Ingersoll Rand 247PD5-P Horizontal Single Phase Features:

• 80 gallon horizontal ASME rated horizontal air receiver
• 230v single phase main drive motor
• Pre installed and wired magnetic motor starter
• Durable cast-iron pump design
• 175 PSI maximum operating pressure
• Reliable Performance: Slow-running compressor pump PRM reduces heat and extends bearing life to deliver long-lasting operation
• Reduced Downtime: Innovative pressure lubrication technology ensures oil delivery to all necessary components to reduce friction
• Enhanced Serviceability: Easy access to user-maintainable components reduces maintenance needs and ensures increased uptime
