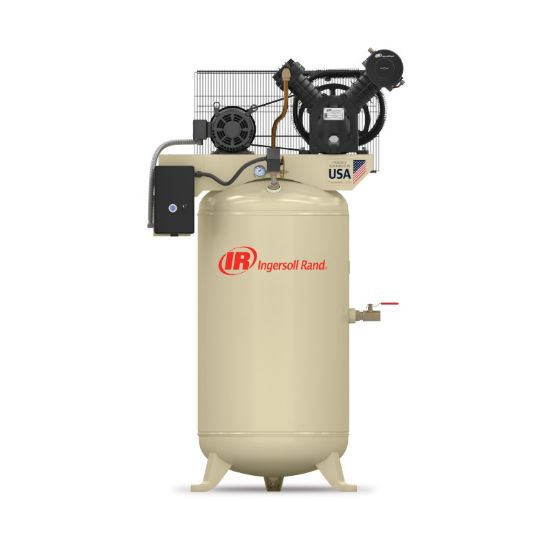

Ingersoll Rand 2475N5-V 200v 5hp Air Compressor, 80 Gallon Tank, 16.8cfm @ 175psi

SKU: 2475N5-3-200V
Part #: 2475N5-3-200V
Call to order 866-203-2944

Ingersoll Rand 2475N5-V 200v 5hp Air Compressor, 80 Gallon Tank, 16.8cfm @ 175psi

This Ingersoll Rand 2475N5 reciprocating air compressor is an ideal choice for applications that demand a reliable air supply for everyday use, but where running an air compressor ranks a distant second to running your business. This is a great option for automotive shops, construction, fabrication, processing lines and more. The 2475N5 is one of IR's most popular piston air compressors on the market. Each 2475N5 3 phase compressor includes a pre-mounted and installed magnetic motor starter for overload protection and is mounted an on 80 gallon air receiver. The V-block design improves cooling around the cylinders for longer life and lower operating temperatures.

The reciprocating pump used on this compressor is designed to be paired with either a 5hp or 7.5hp motor. Since the 2475N5 is a 5hp compressor, the pump turns much slower. This results in a lower noise level compared to similar compressors on the market. Since the pump RPM is lowered, less heat is generated resulting in a longer life pump and reduced moisture downstream.

This version of the 2475N5 compressor utilizes 200v three phase power. If instead your facility has 230/3/60hz consider the 2475N5-3 air compressor.

Ingersoll Rand 2475N5-3-200V Features

  • Finned copper intercooler lowers operating temperature, extends pump life, and improves efficiency
  • Two stage air compressor, 175psi max pressure
  • Low speed pump for reduced noise and moisture
  • Durable cast-iron v shape pump
  • Reliable stainless steel reed valves optimized for increased volumetric efficiency
  • Approximately 50% continuous duty for tough applications
  • Simple and reliable splash lubrication eliminates need for oil pump, inexpensive and easy to maintain
  • Pre installed and wired magnetic motor starter.
  • Three Phase
California Residents: Prop 65 WARNINGS
Products specifications
Drive StyleBelt Drive
Horse Power5
Max Pressure (PSI)175
CFM @ 175 PSI16.8
Tank Size80 Gallons
Weight535 lb
