Hankison E5-44 OEM Replacement Filter Element for Grade 5 High Efficiency Oil Removal - SPX Flow 3210800

SKU: E5-44
Part #: E5-44
Ship to
Shipping Method
Estimated Delivery
No shipping options

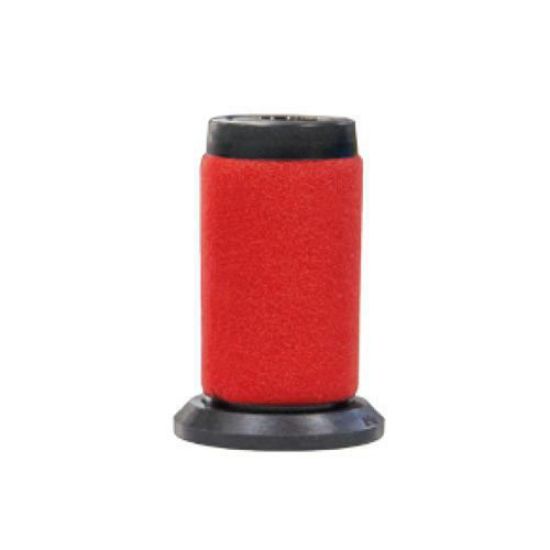

SPX Flow / Hankison OEM E5-44 High Efficiency Replacement Filter Element - 3210800

This is an OEM replacement part manufactured by SPX Flow / Hankison. The part number is E5-44 and the internal material number is 3210800

E5-44 is a maximum efficiency oil removal filter. This grade 5 Hankison air compressor filter element. This filter element features corrosion resistant inner and outer cores. The air goes through a two stage filtration process. The first stage has a coated closed cell foam sleeve to act as a prefilter and flow dispenser. The second stage has multiple layers of matrix blended fiber media for ultra fine coalescence.

This filter is used to remove solids and liquids 0.01 micron and larger and 99.99% of oil aerosols. It is commonly used upstream of desiccant or membrane dryers or downstream of refrigerated dryers

The E5-44 filter element fits the following inline filter housings rated to 625 cfm

  • HF5-44-20

Hankison also made a variety of private label filters for other companies. E5-44 is also the OEM filter for the below part numbers and will work in the filter housing:

Manufacturer Filter Element #
Champion C625EE
CompAir EHA544AA
FS Curtis CE5-44
KAESER 9.4868.0
Kaeser OR625
Saylor Beall EC-625
Sullivan Palatek PE544
Watts Fluidaire EKF901-625B
